China

NBC-SNJ500 touch screen hydrogel coater with slitting

SE
Unwinding - Spreader - Fitting - Drying - Slitting, material roll diameter 500-700mm, servo system, hob type cross cutting, application width 480mm.
Model：
Contact
Details SPEC Con CAT
Similar products

Factory NBC-SNJ500 Hydrogel coaterSPEC

Factory NBC-SNJ500 Hydrogel coaterDetails

Factory NBC-SNJ500 Hydrogel coaterPacking list

SKU
NB045700
production speed
0-5M/min
Application width
480mm
Coil diameter
500-700mm
Power
1.4KW
Power
Three-phase 220V
size
2650X1100x1700mm (LxBxH), footprint: 2.3 square meters (including conveyor belt)
Weight
1200kg
Equipment power
Control system
unroll
With tension control
control
Touch screen (Kunlun Tongtai)
Vertical cutter installation
3
Toolbox
1 (with: Thickness gauge, screw driver, tracheal interface 1)
inflated shaft
2
Painting process
Unwinding, Spreader, Fitting, Drying, Slitting
NBC-SNJ500
Hydrogel coater
Unwinding - Spreader - Fitting - Drying - Slitting, material roll diameter 500-700mm, servo system, hob type cross cutting, application width 480mm.

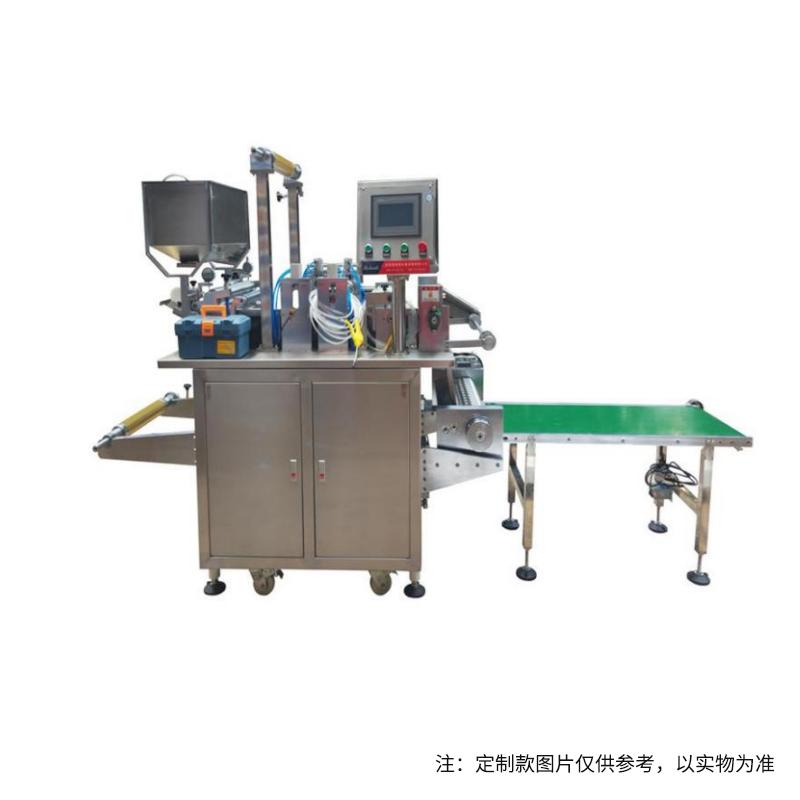

NBC-SNJ500 touch screen hydrogel coater with slitting Picture

Introduction

A hydrogel coater is a piece of equipment used to prepare hydrogel films or coatings. Hydrogel is a polymer material with good water absorption and water retention properties, and is commonly used in medical, cosmetics, sanitary products and other fields. The hydrogel coating machine is mainly used to evenly coat hydrogel on the surface of the substrate to prepare hydrogel products with specific properties. This coating machine has a cutting function and supports UV curing.

Product Structure

Chinese brand NBC-SNJ500 hydrogel coating machine details picture 1


FAQ
QI want to make a hydrogel mask, what kind of coater should I choose?
A Recommended Rxg-01/500cs hydrogel coater, it is specially designed for uniform Spreader of hydrogel materials, the production speed is adjustable from 0-5 m/min, and the thickness of the mask can be precisely controlled. With its own UV curing function, it can quickly cure hydrogels and improve production efficiency. It is suitable for products with high hygiene requirements such as masks.
QI need to simultaneously Spreader and Slitter the hydrogel material. Is this machine suitable?
A Yes! Rxg-01/500cs integrates Spreader and slitting functions, adopts hob type servo slitting system, and has high cutting accuracy. Effective application width 300mm, supports 3 vertical cutters to work at the same time, can be slitted while coating, greatly improving production efficiency and reducing subsequent processing links.
