NBC-KRM300 Mouth film coater Roll-to-roll oven film laminating machine with deviation correction system

NBC-KRM300

Mouth dissolving film coater

Unwinding, Spreader, Drying, Fitting, Winding tape correction, compound width 100~300mm adjustable, compound accuracy 0.5mm, drying length 1m.

Introduction

The oral dissolving film coating machine is a roll-to-roll laminating machine that is also suitable for water-based glue coating of non-elastic materials such as paper, film, aluminum foil, plastic, non-woven fabrics, etc.

product structure

The machine consists of a machine body, a gluing width adjustment device, a feeding rack, a gluing roller set, a thickness adjustment dial indicator, a transmission platform, a traction roller set, and a transmission mechanism.

1. Body: The body of the equipment is entirely composed of aluminum alloy + high-static spraying plate.

2. Glue width adjustment device: The width adjustment device is composed of food-grade plastic and adjustable supports.

3. Unloading racks: The machine is equipped with two unloading racks. When the two materials are misaligned during the lamination process, the deviation correction device automatically adjusts to move the racks left and right to achieve the effect of aligning the two materials.

4. Rubber roller set: The rubber roller set is made of double-roller precision-machined parts with smooth transmission.

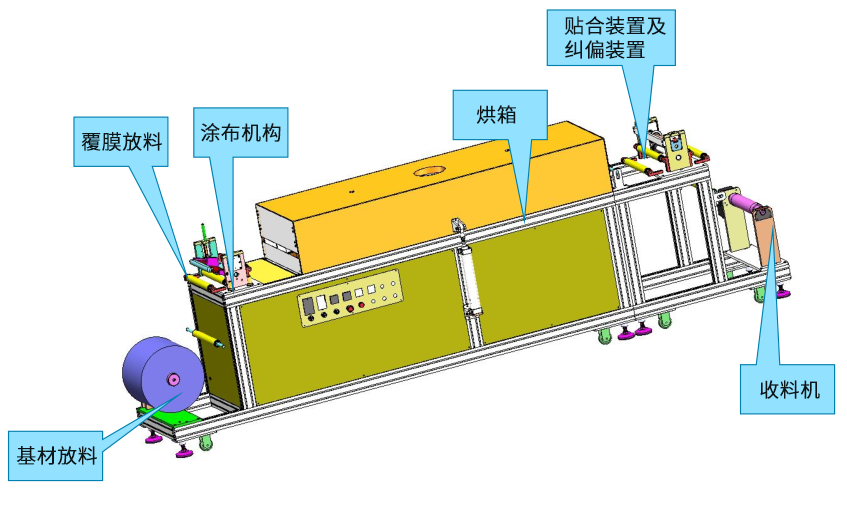

Device connection display

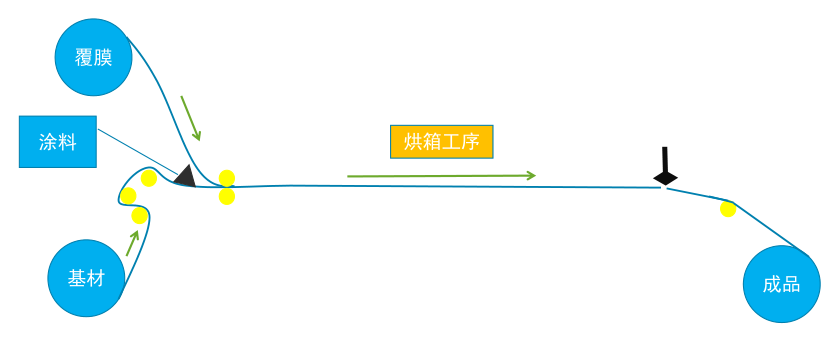

Coating process description

Packing list：machine x1, manual x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
