NBC-GTJ100 vertical mesh coating machine, mesh vertical 1.5m * 600mm

SE
With rewinding and unwinding function, support tension control, mesh vertical 1.5m * 600mm, Spreader speed 1mm/s.
$13751.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con

Factory NBC-GTJ100 Vertical mesh coating machineSPEC

Factory NBC-GTJ100 Vertical mesh coating machineDetails

Factory NBC-GTJ100 Vertical mesh coating machinePacking list

SKU
NB045702
Device size
2800*1200mm
unwinding diameter
φ500mm
Reserved Spreader Area
1500*600mm
sink width
400mm
winding diameter
φ500mm
NBC-GTJ100
Vertical mesh coating machine
With rewinding and unwinding function, support tension control, mesh vertical 1.5m * 600mm, Spreader speed 1mm/s.
NBC-GTJ100 vertical mesh coating machine, mesh vertical 1.5m * 600mm Picture

Coating device structure

  • Rewinding and unwinding function: supports forward and reverse rotation

  • Tension control

  • Correction function

Hanging coater function

1. The vertical mesh can be fine-tuned left and right to ensure that the mesh is as vertical as possible

2. The vertical film runs stably without shaking.

3. The running speed of the vertical mesh is approximately 1mm/s, with a maximum of 1m/min.

4. After the coating is completed, it enters the Water Tank, then exits the Water Tank and winds up.

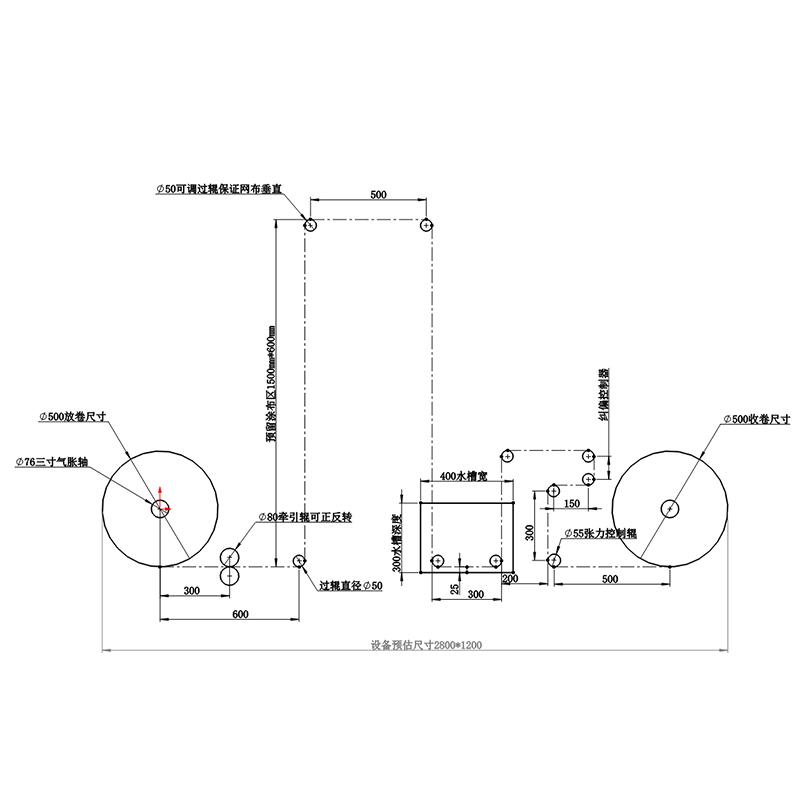

Product structure and size diagram

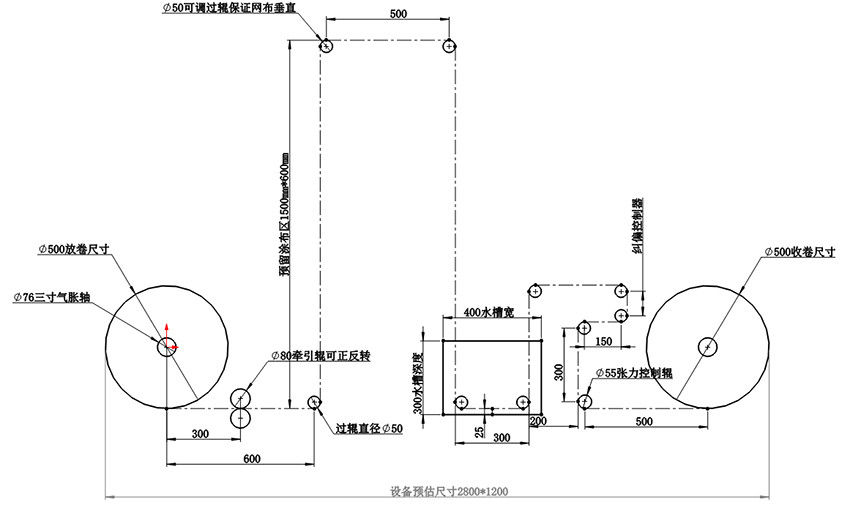

Chinese brand NBC-GTJ100 vertical mesh coater details picture 1
