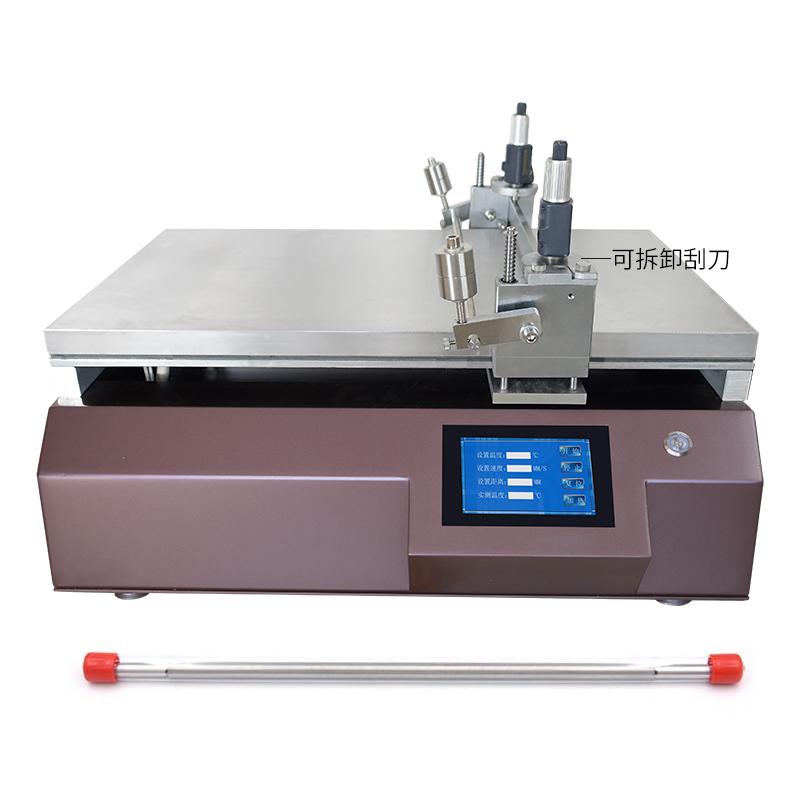

China TBJ-B3-DJ2 Heating Removable Drawdown blade coater hot-melt adhesive Film Applicator
SE
TBJ-B3-DJ2
-
HUINUO TM2100 Lab Adjustable drawdown blade Film Applicator with heated bed$ 2869.00SE -
Domestic (CN) TBJ-B3-DJ4 Automatic Film Applicator Heating type Removable drawdown blade Automatic Film Applicator$ 8621.00 -
China TBJ-B3 Heating Drawdown blade Lab Film Applicator Automatic Film Applicator$ 2247.00SE -
HUINUO TM 2100/01 drawdown blade heating coater coating format 400 * 400mm$ 3957.00SE -
China TBJ-B3-DJ5 Drawdown blade Heating Film Applicator Coating area 400 * 400mm$ 4113.00
zy TBJ-B3-DJ2 Automatic Film ApplicatorSPEC
zy TBJ-B3-DJ2 Automatic Film ApplicatorDetails
zy TBJ-B3-DJ2 Automatic Film ApplicatorPacking list
- SKU
- NB045722
- Spreader Accuracy
- ±0.003mm
- Spreader thickness range
- 0.2~10mm
- Coating speed
- 5~ 180Mm/s (< 5mm/s can be customized)
- Coating size
- 300*400mm
- Spreader time
- Digital display, different speed, time Accuracy control,
- Heating Temperature range
- RT+~180℃
- Temperature Uniformity
- ±3℃
- Drawdown blade length
- 400MM material/stainless steel
- Host Power
- 220V 50Hz 1700W
- Dimensions
- 690*410*520mm
- Weight
- Net Weight 65KG
- speed control
- Infinitely variable speed
- Bottom plate material
- aluminum alloy
- Optional
- Leakage tank, substrate fixing fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle
- Customizable function
- Jet system device, UV solid-containing device, automatic inking system
- Drawdown blade type
- Removable drawdown blade, easy to clean and replace
The TBJ-B experimental small coating testing machine all uses imported accessories and is very affordable. It has been favored by many multinational R&D institutions, as well as many well-known universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure, the coating and gluing effect is ensured, and the uniformity and stability of the coating and gluing are ensured.
Since the main factors that affect the coating film are the coating speed and the pressure exerted on the Film Applicator, the coatings applied manually are often inconsistent, especially the differences between different people are even greater. This makes it difficult to compare test results between samples. Our company's automatic Film Applicator is carefully designed to allow operators to easily apply precise wet films on different substrates, greatly improving the reproducibility of coating films.
