Wire rod + vacuum adsorption function, with imported high-precision wire rod, film accuracy 1 micron, suitable for Moulding on film and release paper, effective Spreader area 300mm * 400mm.
$2713.00/set
PromotionLoading...
Coupon
Model：
TM1200
Similar products
-
China bar Vacuum chuck coater TBJ-A3-XB with imported bar$ 2403.00SE -
GB/T 9756 Paint Film Automatic Coating Machine with Vacuum chuck Polyester film finish coating board$ 3180.00SE -
TBJ-X5-DJ1 bar Vacuum chuck Film Applicator with UV light curing + low temperature refrigeration$ 5512.00SE -
China bar Vacuum chuck coater TBJ-A3-DJ3 Wire-wound drawdown Bar Moulding machine$ 3646.00SE -
China Smoothing Rods Vacuum chuck coater hot-melt adhesive Film Applicator TBJ-A3-DJ4$ 3180.00SE
HuiNuo TM1200 Automatic Film ApplicatorSPEC
HuiNuo TM1200 Automatic Film ApplicatorDetails
HuiNuo TM1200 Automatic Film ApplicatorPacking list
- SKU
- NB045734
- Coating method
- Rod
- Coating speed
- 1~ 300Mm/s stepless speed regulation (can be customized)
- Substrate clamping method
- Vacuum adsorption + fixture
- Coating table material
- Surface hard treatment aluminum alloy
- Coating table size
- 600*300mm
- Effective coating Area
- 400 * 300Mm (can be customized)
- Mayer Rod Thickness Range
- Different bar numbers have different thicknesses, with high-precision imported bars
- Mayer Rod Accuracy
- ±0.001mm
- Vacuum Area
- 400 * 300Mm (can be customized)
- vacuum aperture
- Φ0.8mm
- Vacuum hole spacing
- 20*20mm
- Pumping Speed
- 5.4m3/h
- Ultimate Vacuum
- 50KPa
- Vacuum Pump Power
- 180W
- Vacuum pump Weight
- 7.1kg
- Operating language
- Chinese (can be customized in English)
- Display
- Color LCD touch screen
- Host Power Supply
- 100V~220V/50~60HZ
- Power
- 400w

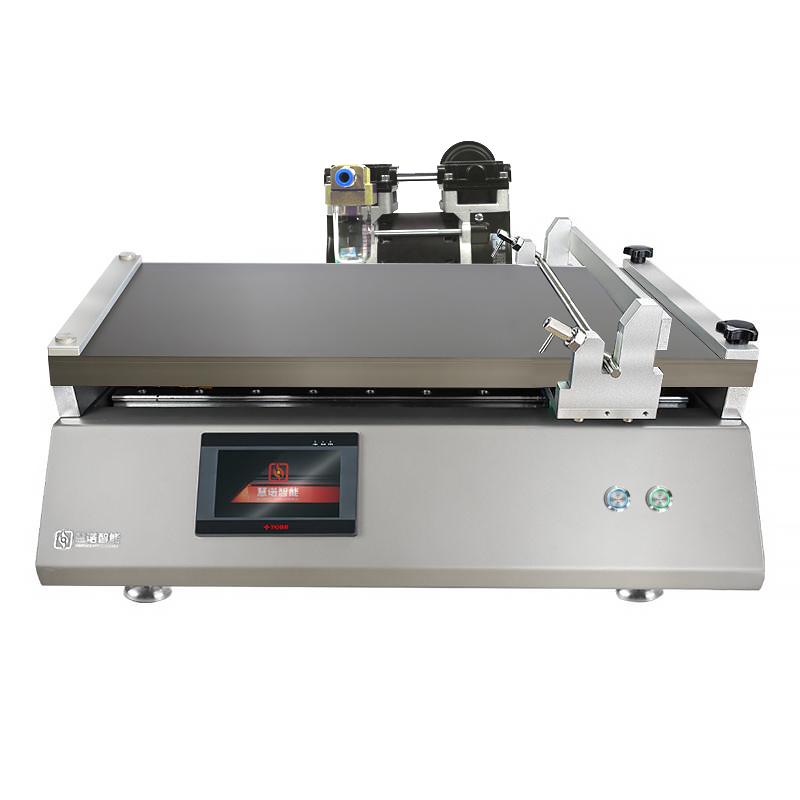

TM1200
Automatic Film Applicator
Wire rod + vacuum adsorption function, with imported high-precision wire rod, film accuracy 1 micron, suitable for Moulding on film and release paper, effective Spreader area 300mm * 400mm.
FAQ
QApply 10 microns on the film, the material viscosity is not high, which one to choose?
A
10 microns is relatively thin, you can use bar Spreader, film substrate to be equipped with Vacuum chuck function, recommended bar Vacuum chuck Automatic Film Applicator.
QSpreader on OPP, PET film, film Film thickness 8~ 10μm, which Automatic Film Applicator is suitable?
A
Bar Vacuum chuck type Automatic Film Applicator, within 10 microns belongs to ultra-thin film, with Mayer Rods accuracy will be high, in addition, the film substrate needs to use Vacuum chuck can be relatively flat fixed.
QWe need a film applicator to Moulding, coating 10 microns on the film, the material viscosity is not high, which coater to choose?
A
Vacuum chuck + bar coater is recommended.
QCan this coater be used to coat PET film?
A
Yes, this is a vacuum adsorption model, which can fix the pet film flat.
QWhat is vacuum adsorption function? How to use?
A
Vacuum adsorption function can ensure that the substrate is fixed, so that the Spreader process is more stable, the vacuum pore size is 0019 0.8mm, the hole spacing is 20 * 20mm, can be customized according to needs.
QWhat Industries Are Laboratory Film Applicators Suitable For Moulding?
A
This Film Applicator is suitable for Moulding proofing in university research institutes, New materials, lithium batteries, glues, Resin and other laboratories, covering experimental needs in many fields.
QHow does Film Applicator work?
A
The working principle of Film Applicator is to control the Spreader head and Spreader parameters to evenly Spreader the sample on the substrate to form the desired film, realizing automated Spreader.
QWhat are the characteristics of the countertop material of the coater?
A
The countertop of Film Applicator is made of hard-treated aluminum alloy with high Hardness and abrasion resistance. Smoothness of the countertop is tested by imported high-precision instruments to ensure Spreader mass.
