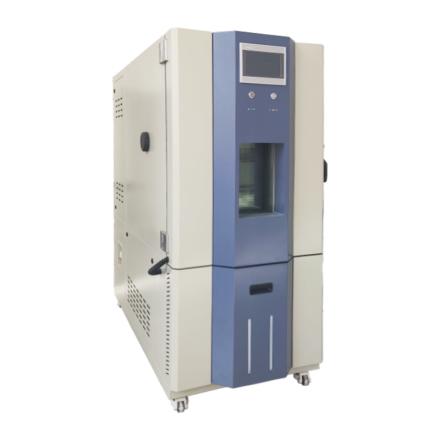

HUDA NBC-E702-100K40 Programmable Constant Temperature & Humidity Test Chamber Specifications
Search
Brand：HUDA
Model：NBC-E702-100K40
Name：Programmable Constant Temperature & Humidity Test Chamber
Specifications
| Internal Volume | 100L |
| Interior size | 400*500*500mm |
| Dimension | 720*1430*1420mm |
| Temperature range | -40~+150℃ |
| Control Accuracy | Temperature Resolution: 0.01 ℃; Humidity resolution: 0.1% R.H; Temperature deviation ： +/- 0.5 ℃; Humidity Deviation ： +/- 2% R.H; Temperature Uniformity: ≤ 2 ℃; Humidity Uniformity: +/- 3% R.H; Temperature Fluctuation ： +/- 0.5 ℃; Humidity stability ： +/- 2% R.H. |
| Heating rate | -60 ℃ → + 150 ℃, the whole process average ≥ 3.5 ℃/min |
| refrigerant | R404 |
| Refrigeration method | Single stage refrigeration |
| blower | Centrifugal fan with forced circulation |
| evaporator | finned tube heat exchanger |
| Condensation method | air-cooled |
| condenser | Air-cooled scale condenser, chilled down fan |
| Drying Filter | Absorb the residual moisture and acidic substances in the refrigerant of the refrigeration system, and filtrate the solid impurity particles and copper cutting in the system to protect the normal operation of the expansion valve and capillary tubing, so as not to cause ice blockage and dirty blockage |
| Humidification system | Stainless steel humidifier |
| Heating system | Nickel chromium alloy stainless steel heating |
| water supply system | Front-mounted water supply tank, fully automatic water supply system |
| Controller | Youyi Controller |
| Chassis shell | Cold rolled steel plate (1.0mm thick) |
| Chassis inner wall | SUS304 #stainless steel plate (1.0mm thick) |
| Thermal Insulation | 100Mm polyurethane rigid foam + 100mm high density fiberglass cotton |
| Standard configuration | φ 50 Test Hole, Lighting, Double-decked Glass Viewing Window |
| Weight | 230kg |
| current | 11A |
| Rated power | 5.5kw |
| Power supply Voltage | Single phase, 220V |
| Cooling rate | 150 ℃ → -60 ℃ Average throughout the process ≥ 1 ℃/min |
Packing list
machine x1, manual x1, certificate x1, warranty card x1, specimen rack tray x2, specimen rack support track hook x8
After-sales instructions
Warranty days: 365 days
