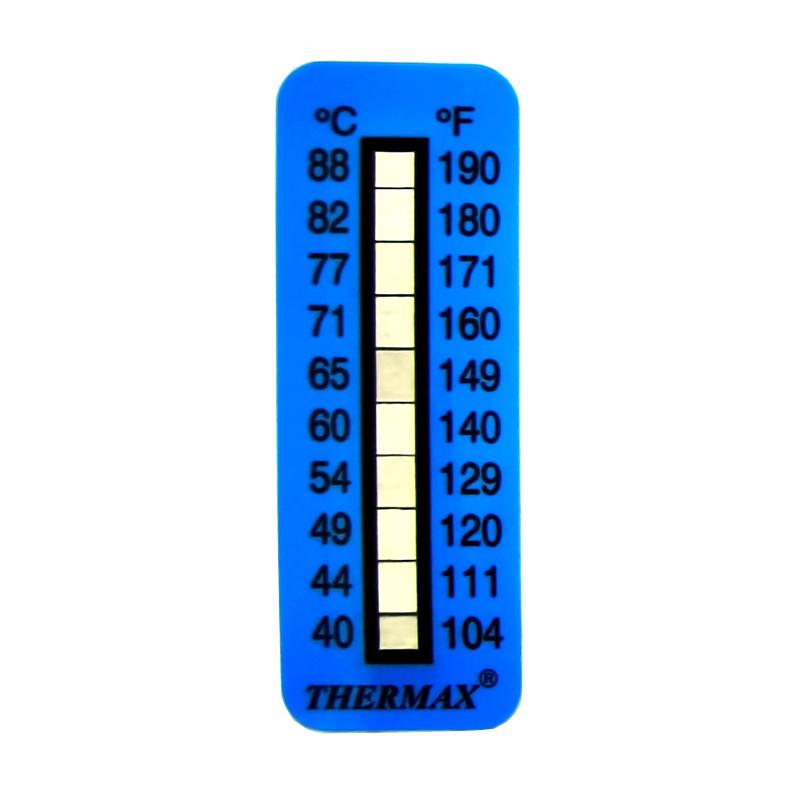

Thermax 10 grid 40-88 ° Temperature Indicator Label (railway customized model)

SE
The number of temperature grids is 10 grids, the temperature measurement range is 40-88 ℃, and the specification size is 51 × 18mm. The precise melting point of specially purified organic chemicals is listed to produce a unique and high-precision Color change effect.
$96.00/piece
PromotionLoading...
Coupon
Contact
Details SPEC Con

Thermax 10 grids 40-88 ° Thermometric PaperSPEC

Thermax 10 grids 40-88 ° Thermometric PaperDetails

Thermax 10 grids 40-88 ° Thermometric PaperPacking list

SKU
NB045744
Color change
Irreversible
temperature lattice
10 squares
Measuring temperature ℃
40℃|44℃|49℃|54℃|60℃|65℃|71℃|77℃|82℃|88°C
Measuring temperature F
104℉|110℉|120℉|129℉|140℉|149℉|160℉|171℉|180℉|190℉
Specifications and Dimensions
51 × 18Mm; 10 pieces/book
Temperature grid shape
Vertical self-adhesive
10 grids 40-88 °
Thermometric Paper
The number of temperature grids is 10 grids, the temperature measurement range is 40-88 ℃, and the specification size is 51 × 18mm. The precise melting point of specially purified organic chemicals is listed to produce a unique and high-precision Color change effect.

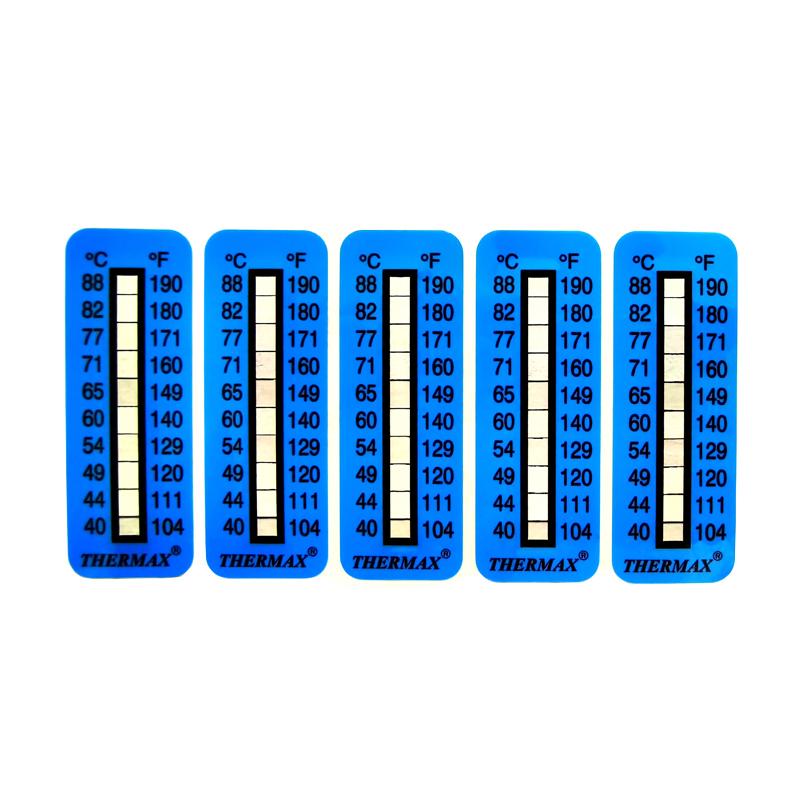

Thermax 10 grid 40-88 ° Temperature Indicator Label (railway customized model) Picture

Introduction

British Thermax temperature US 10 grid 40-88° irreversible Temperature Indicator Label can record the highest temperature reached by the label.

These self-adhesive thermometer papers consist of a series of temperature-sensitive elements sealed between heat-resistant substrates with transparent windows. Each component will visibly change color when its rated temperature is exceeded. These changes are irreversible and provide a temperature history of the surface being monitored. Tags will not delaminate when removed for reference and can be attached to inspection reports for records.

The temperature-sensitive element is a color-changing indicator that utilizes the precise melting point of specially purified organic chemicals to produce a unique, high-precision color change effect. Each temperature point uses a different compound and is manufactured individually by applying a coating containing that chemical to a special absorbent paper substrate. When the rated temperature is exceeded, the chemicals melt and are absorbed by the substrate, causing an irreversible color change.

Features

  • Long-lasting record of maximum temperature reached.

  • Self-adhesive labels.

  • Silver to black color variation.

  • Instant response.

  • Resistant to oil, water and steam.

Thermometer paper storage conditions

  • Products 50°C or below: Store in sealed bags in the refrigerator.

  • Products above 50℃: Store at room temperature and humidity (i.e. 20℃/68℃).

  • 50% Relative Humidity.


FAQ
QI want to monitor the surface temperature of the device between 40 and 88 degrees. Is there any easy-to-use temperature measurement tool recommended?
A Thermax 10-grid Thermometric Paper is recommended, which covers 10 temperature points from 40 ° C to 88 ° C, and can record the highest temperature when attached to the surface of the device. Color is irreversible after turning black from silver, suitable for long-term monitoring and recording.
QWe do aging testing of electronic components, and we need to record the temperature history. What are the suitable temperature measurement products?
A Thermax Thermometric Paper is suitable, it is oil-resistant and water-resistant, self-adhesive design is directly attached to the component, and it will not recover after each temperature point discoloration. After the test, tear it off and attach it to the report, which is convenient for tracing whether the temperature exceeds the standard.
QWhat functions should I pay attention to when choosing Thermometric Paper? What are the advantages of this 10-grid one?
A Select Thermometric Paper Temperature range, accuracy and environment resistance. This 10-grid Thermometric Paper corresponds to an accurate temperature point per grid. Response is fast and Color changes are obvious. Vertical arrangement is convenient for viewing. Suitable for occasions that require multi-point monitoring.
QI want to monitor the surface temperature of the equipment between 40 and 88 degrees. Is there any simple and easy-to-use temperature measurement tool recommended?
A Thermax 10-grid Thermometric Paper is recommended, which covers a total of 10 temperature points from 40 ° C to 88 ° C, and can accurately record the highest temperature. When used, it is directly pasted on the surface of the equipment. If it exceeds the set temperature, it will turn from silver to black, and the change is irreversible. It is convenient for you to view the temperature history. It is especially suitable for equipment inspection and process monitoring.
QI want to monitor the surface temperature of the equipment between 40 and 88 degrees. Is there any simple and easy-to-use temperature measurement tool recommended?
A Thermax 10-grid Thermometric Paper is recommended, which covers a total of 10 temperature points from 40 ° C to 88 ° C, and can accurately record the highest temperature. Because it is a self-adhesive label that is directly attached to the surface of the equipment, it will turn from silver to black beyond the set temperature, and the change is irreversible. It is suitable for monitoring the temperature history of equipment operation, such as temperature monitoring of motors, bearings or heating components.
QWhere is Thermometric Paper generally used? Why choose it?
A It is commonly used in industrial equipment maintenance, electronic component testing or heat treatment process monitoring, such as checking motor overheating or circuit board temperature. Because it is resistant to oil, water vapor, and adheres firmly, it can keep records permanently after discoloration, which is convenient for subsequent analysis reports. It is more economical than electronic thermometers and requires no power supply.
QI need multiple temperature point monitoring, how to choose?
A Choose this 10-grid Thermometric Paper, which has 10 independent temperature points from 40 ° C to 88 ° C, each point corresponds to a different compound, with high accuracy. You can choose a model covering 40 ° C, 44 ° C, 49 ° C and other points according to the Temperature range of the device, which can fully capture temperature changes and avoid missed testing.
