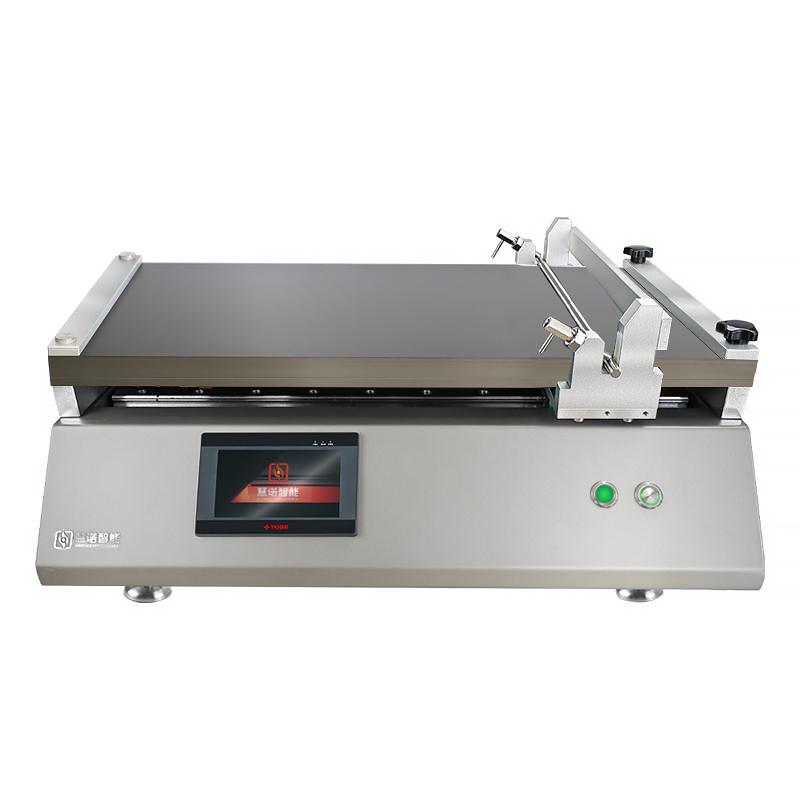

HUINUO TM1100Pro High-precision Automatic bar Film Applicator with heated bed

SE
Wire rod + heating function, servo motor, suitable for drying samples that require heating, temperature control up to 180 ℃, Spreader countertop is made of hard aluminum alloy, high Smoothness, Spreader uniform.
$2403.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

HuiNuo TM1100pro Automatic Film ApplicatorSPEC

HuiNuo TM1100pro Automatic Film ApplicatorDetails

HuiNuo TM1100pro Automatic Film ApplicatorPacking list

SKU
NB045745
Coating method
Rod
Coating speed
1~ 300Mm/s stepless speed regulation (can be customized)
Substrate clamping method
fixture
Coating table material
Surface hard treatment aluminum alloy
Coating table size
600*300mm
Effective coating Area
400 * 300Mm (can be customized)
Mayer Rod Thickness Range
Different bar numbers have different thicknesses, with high-precision imported bars
Mayer Rod Accuracy
±0.001mm
Heating mode
Mica sheet heating (optional graphene heating, faster thermal conductivity)
Heating Temperature range
RT +~ 180 ℃ (higher temperature can be customized)
Temperature Uniformity
±1℃
Drive motor
Servo motor
Display
Color LCD touch screen
Host Power Supply
220V/50HZ (can be customized 110V/60HZ)
Power
2000w
Operating language
Chinese (can be customized in English)
Dimension
658*438*400mm
TM1100pro
Automatic Film Applicator
Wire rod + heating function, servo motor, suitable for drying samples that require heating, temperature control up to 180 ℃, Spreader countertop is made of hard aluminum alloy, high Smoothness, Spreader uniform.
HUINUO TM1100Pro High-precision Automatic bar Film Applicator with heated bed Picture


HUINUO TM1100Pro high-precision experiment Automatic Film Applicator Wire rod heating Coater Figure 1



HUINUO TM1100Pro high-precision experiment Automatic Film Applicator Wire rod heating Coater Figure 2



HUINUO TM1100Pro high-precision experiment Automatic Film Applicator Wire rod heating Coater Figure 3



HUINUO TM1100Pro high-precision experiment Automatic Film Applicator Wire rod heating Coater Figure 4



HUINUO TM1100Pro high-precision experiment Automatic Film Applicator Wire rod heating Coater Figure 5



HUINUO TM1100Pro high-precision experiment Automatic Film Applicator Wire rod heating Coater Figure 6



HUINUO TM1100Pro high-precision experiment Automatic Film Applicator Wire rod heating Coater Figure 7



HUINUO TM1100Pro high-precision experiment Automatic Film Applicator Wire rod heating Coater Figure 8



HUINUO TM1100Pro high-precision experiment Automatic Film Applicator Wire rod heating Coater Figure 9



HUINUO TM1100Pro high-precision experiment Automatic Film Applicator Wire rod heating Coater Figure 10



HUINUO TM1100Pro high-precision experiment Automatic Film Applicator Wire rod heating Coater Figure 11


Overview

Automatic Film Applicator is a device used for intermediate coating film in laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. The working principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate by controlling the Spreader head and Spreader parameters to form the desired film.

This Film Applicator is a wire rod type Automatic Film Applicator with heating function, innovative wire rod Installation method and clamshell type drawdown blade head greatly improve Spreader efficiency, easy to clean, support speed control and application length adjustment, suitable for laboratory high-precision automatic film, Moulding proofing in laboratories such as university research institutes, New material, hot-melt adhesive, glue, Resin, etc.

Product use

Film Applicator is suitable for coating, inks, paints, hot-melt adhesive, lithium battery, Pressure sensitive adhesive, Resin, glue, polymer materials, pharmaceuticals and other film samples, which can be scraped on Glass, cardboard, fabric.

Features

1) Surface hard treatment aluminum alloy countertop, Hardness high wear resistance, Smoothness using imported high-precision instruments for testing.

2) Big brand differential regulator, high film thickness control accuracy

3) with heating and vacuum adsorption function

4) with high-precision Film Applicator, the original imported rod film uniform accuracy

5) Touch screen control panel, easy to operate

6) Free adjustment of application length and Spreader speed

7) Servo motor, stable operation, higher film accuracy

FAQ
QWhich lab films is this Film Applicator for?
A This Film Applicator is suitable for university research institutes, New materials, hot-melt adhesives, glues, Resin and other laboratories, and can be used for Moulding proofing. It is widely used in Coating, inks, paints, lithium batteries, Pressure sensitive adhesives and other fields.
QIs the operation of Automatic Film Applicator complicated?
A Not complicated. It uses a touch screen control panel, which is simple and intuitive to operate. The application length and Spreader speed can be adjusted freely to adapt to different needs, which is convenient for users to operate flexibly.
QWhat role does the heating function play in the film process and how does it affect the results of the Spreader?
A The heating function can help the sample to heat and melt during the Spreader process, improve the efficiency of the Spreader, and also help to quickly cure coatings, thus affecting the results of the Spreader.
QWhat is the Spreader Method for Film Applicators?
A The Film Applicator USES Wire Spreader mode, equipped with a new Wire Spreader Installation method, which can greatly improve the efficiency of Spreader, and is easy to clean to ensure the uniformity and accuracy of Spreader.
QWhat are the advantages of this Automatic Film Applicator over manual film?
A Automatic Film Applicator controls the Spreader parameters and the Spreader head to achieve uniform Spreader of the sample. Compared with manual film, it improves the accuracy and efficiency of film, and reduces the possibility of labor costs and operation errors.
