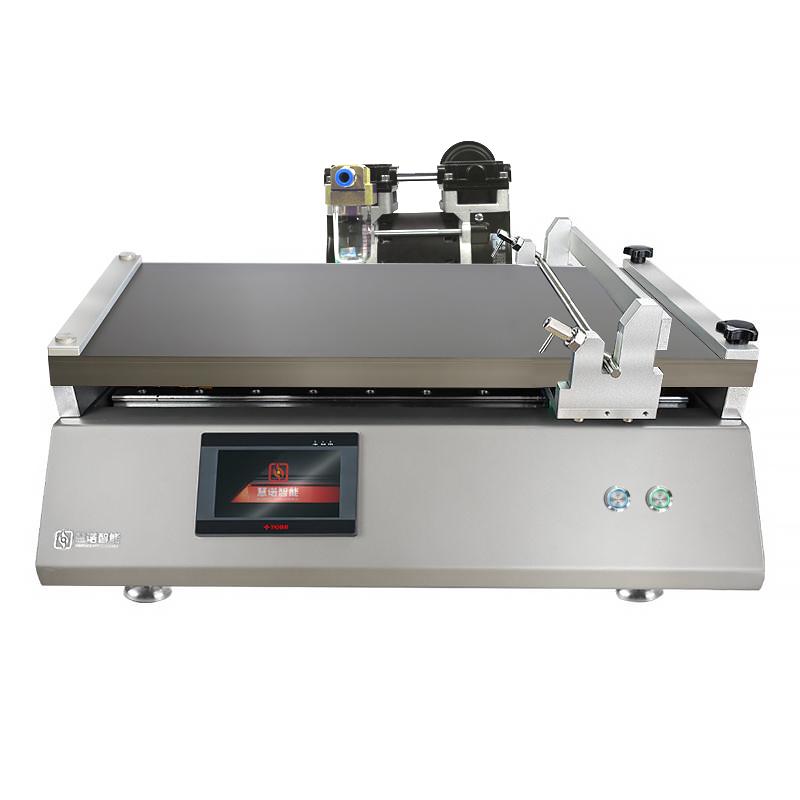

HUINUO TM1200pro High-precision small Automatic Film Applicator with Vacuum Table

SE
High-precision, wire rod + vacuum adsorption function, servo motor, with imported high-precision wire rod, film accuracy 1 micron, suitable for Moulding on film and release paper, effective Spreader area 300mm * 400mm.
$2869.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

HuiNuo TM1200pro Automatic Film ApplicatorSPEC

HuiNuo TM1200pro Automatic Film ApplicatorDetails

HuiNuo TM1200pro Automatic Film ApplicatorPacking list

SKU
NB045746
Coating method
Rod
Coating speed
1~ 300Mm/s stepless speed regulation (can be customized)
Substrate clamping method
Vacuum adsorption + fixture
Coating table material
Surface hard treatment aluminum alloy
Coating table size
600*300mm
Effective coating Area
400 * 300Mm (can be customized)
Mayer Rod Thickness Range
Different bar numbers have different thicknesses, with high-precision imported bars
Mayer Rod Accuracy
±0.001mm
Vacuum Area
400 * 300Mm (can be customized)
vacuum aperture
Φ0.8mm
Vacuum hole spacing
20*20mm
Pumping Speed
5.4m3/h
Ultimate Vacuum
50KPa
Vacuum Pump Power
180W
Vacuum pump Weight
7.1kg
motor
Servo motor
Operating language
Chinese (can be customized in English)
Display
Color LCD touch screen
Host Power Supply
220V/50HZ (can be customized 110V/60HZ)
Power
600w
TM1200pro
Automatic Film Applicator
High-precision, wire rod + vacuum adsorption function, servo motor, with imported high-precision wire rod, film accuracy 1 micron, suitable for Moulding on film and release paper, effective Spreader area 300mm * 400mm.
HUINUO TM1200pro High-precision small Automatic Film Applicator with Vacuum Table Picture


HUINUO TM1200pro high-precision small experimental coater wire rod + vacuum adsorption Figure 1



HUINUO TM1200pro high-precision small experimental coater wire rod + vacuum adsorption Figure 2



HUINUO TM1200pro high-precision small experimental coater wire rod + vacuum adsorption Figure 3



HUINUO TM1200pro high-precision small experimental coater wire rod + vacuum adsorption Figure 4



HUINUO TM1200pro high-precision small experimental coater wire rod + vacuum adsorption Figure 5



HUINUO TM1200pro high-precision small experimental coater wire rod + vacuum adsorption Figure 6



HUINUO TM1200pro high-precision small experimental coater wire rod + vacuum adsorption Figure 7



HUINUO TM1200pro high-precision small experimental coater wire rod + vacuum adsorption Figure 8



HUINUO TM1200pro high-precision small experimental coater wire rod + vacuum adsorption Figure 9



HUINUO TM1200pro high-precision small experimental coater wire rod + vacuum adsorption Figure 10



HUINUO TM1200pro high-precision small experimental coater wire rod + vacuum adsorption Figure 11


Overview

Automatic Film Applicator is a device used for intermediate coating film in laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. The working principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate by controlling the Spreader head and Spreader parameters to form the desired film.

This Film Applicator is a wire rod type Automatic Film Applicator with vacuum adsorption function. The new wire rod Installation method greatly improves the efficiency of Spreader, is easy to clean, supports speed control and application length adjustment, and is suitable for high-precision automatic film in laboratories. Moulding proofing in laboratories such as university research institutes, New materials, lithium batteries, glue, Resin, etc.

Product use

Film Applicator is suitable for coating, inks, paints, slurry, lithium battery, Resin, glue, polymer materials, pharmaceuticals and other film samples, which can be scraped on film, release paper, aluminum foil and copper foil.

Features

1) Surface hard treatment aluminum alloy countertop, Hardness high wear resistance, Smoothness using imported high-precision instruments for testing.

2) Big brand differential regulator, high film thickness control accuracy

3) with heating and vacuum adsorption function

4) with high-precision Film Applicator, the original imported rod film uniform accuracy

5) Touch screen control panel, easy to operate

6) Free adjustment of application length and Spreader speed

FAQ
QDry-film thickness 1.4 microns, Spreader Solid content 25%, Glass substrate 1.11mm, which Film Applicator to choose?
A Wet-film about 5μm, bar type Film Applicator is suitable, servo motor film accuracy is higher.
QHello, can this film Spreader be used for batteries?
A Sure.
QLab Film Applicator What materials are suitable for Spreader sample preparation? How to ensure the mass and accuracy of Spreader?
A The product is suitable for Coating, inks, paints, slurry, Resin, glue, polymer materials, pharmaceuticals and other film sample preparation, equipped with high-precision Applicator rod to ensure the mass and accuracy of Spreader to meet the needs of different materials Spreader.
QHow does vacuum adsorption help to fix the substrate and how does it affect the experimental process?
A The vacuum adsorption function can effectively fix the substrate, prevent it from moving or deforming, maintain the Stability of the substrate during the experiment, ensure the accuracy and conformity of the Spreader, and help improve the repeatability and accuracy of the experiment.
QWhat are the advantages of using the wire rod Spreader method? How to ensure the uniformity and accuracy of the Spreader?
A The use of wire rod Spreader method can ensure the uniformity and accuracy of Spreader, with high-precision imported wire rod, its accuracy is as high as +/- 0.001mm, the film accuracy of the wire rod is high, and it can also be used for the preparation of ultra-thin film, which can scrape low viscosity samples.
QIs the coater operated with a touchscreen control panel?
A Yes, the touchscreen control panel is easy to operate. Users only need to set up operations through the touchscreen, eliminating the need for complex operation steps. This can improve the user's convenience and efficiency, and reduce the threshold for use.
QWhat are the advantages of Automatic Film Applicator over manual film? How to improve work efficiency?
A Compared to manual film, this Film Applicator can automate film, improving film accuracy and efficiency. By controlling the Spreader head and Spreader parameters, it is possible to ensure that the sample is evenly Spreader on the substrate to form the desired film, thus saving time and labor costs.
