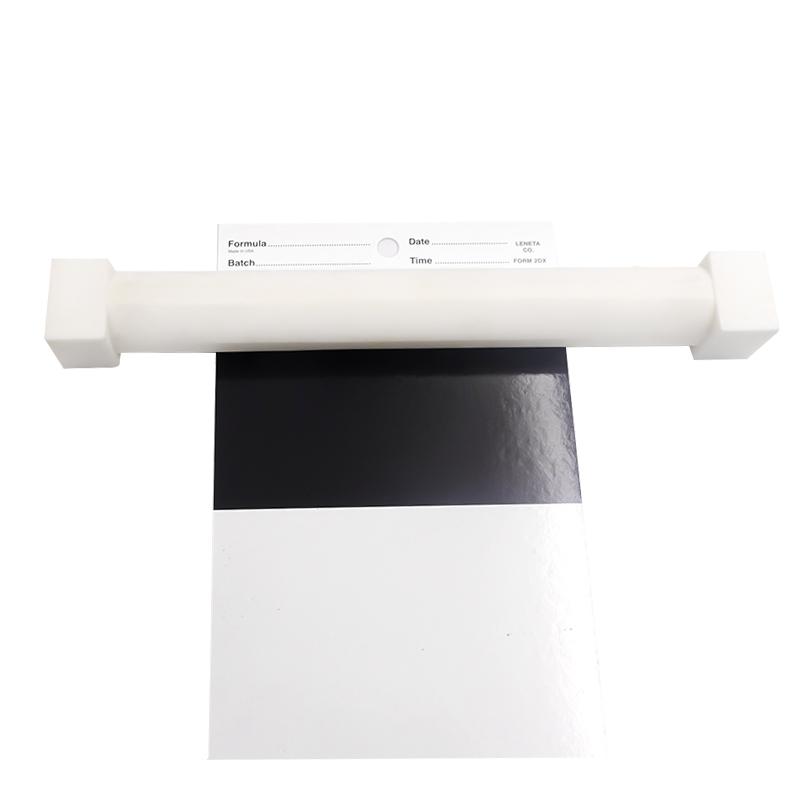

CHINA Ceramic Film Applicator SZQ-160 100/130/150/170μm

Zirconia ceramic material, film thickness of 100, 130, 150, 170 μm, application width 160mm, with accuracy test report.

Model：

SZQ-160 100/130/150/170

Certificate

HuiNuo

Chinese general agent

Contact

Details SPEC

HuiNuo SZQ-160 100/130/150/170 Ceramic Film ApplicatorSPEC

HuiNuo SZQ-160 100/130/150/170 Ceramic Film ApplicatorDetails

HuiNuo SZQ-160 100/130/150/170 Ceramic Film ApplicatorPacking list

SKU: NB045752

SZQ-160 100/130/150/170

Ceramic Film Applicator

Zirconia ceramic material, film thickness of 100, 130, 150, 170 μm, application width 160mm, with accuracy test report.

This four-sided Wet Film Applicator is a coater made of zirconia ceramics. It is suitable for film production and proofing of highly corrosive materials such as strong acids and alkalis. It can also be used for film production of general materials and has wide applicability. SZQ-160 100/130/150/170Î¼m ceramic Wet Film Applicator has four coating film thicknesses, the coating film thickness is 100, 130, 150 , 170 Î¼m, and the coating width is 160mm .

Ceramic Wet Film Applicators are customized on demand, and specific customization needs need to be communicated with technical customer service in detail.

HUINUO SZQ-160 100/130/150/170 Ceramic Wet Film Preparator Details Figure 1

HUINUO SZQ-160 100/130/150/170 Ceramic Wet Film Preparator Details Figure 2

HUINUO SZQ-160 100/130/150/170 Ceramic Wet Film Preparator Details Figure 3

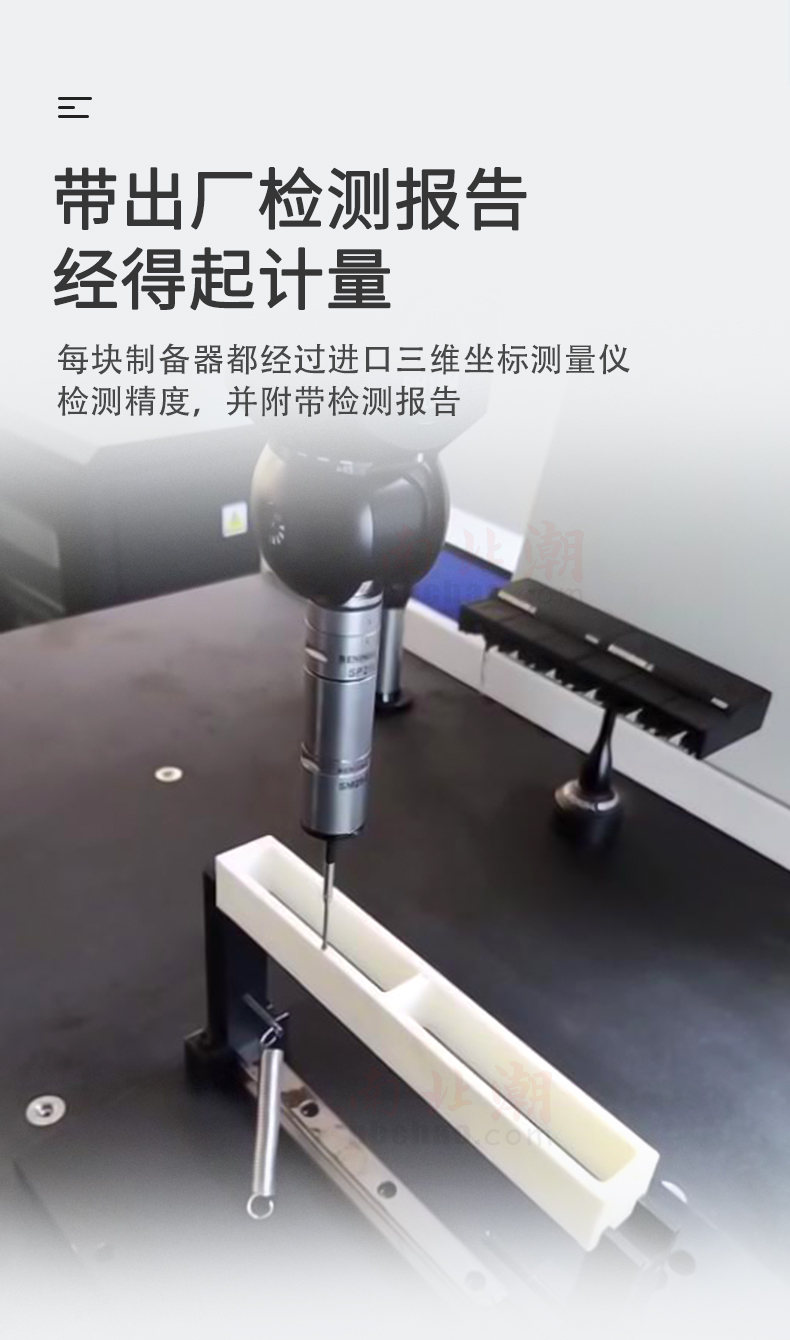

HUINUO SZQ-160 100/130/150/170 Ceramic Wet Film Preparator Details Figure 4

HUINUO SZQ-160 100/130/150/170 Ceramic Wet Film Preparator Details Figure 5

HUINUO SZQ-160 100/130/150/170 Ceramic Wet Film Preparator Details Figure 6

Features

1. Zirconia ceramic material has good wear resistance and is suitable for film making of highly corrosive materials.

2. A variety of coating film widths of 80mm, 105mm, 130mm, and 160mm are available, and support customization of thicknesses of different specifications.

3. Use imported three-coordinate detection accuracy, with factory inspection report, which can withstand measurement

Preparator series parameter table

name	Specifications mm	Wet film thickness Î¼m
single sided Applicator	Total length 80, coating width 50, 75	50, 75, 100, 125, 150, 175, 200
Double sided Applicator	Total length 100, coating width 80	25, 50, 75, 100, 150, 175, 200, 300, 400
Frame Applicator	Total length 90, coating width 80	30, 50, 60, 90, 120, 150, 200
Eight-sided Applicator	Total length 90, coating width 68	50, 75, 100, 125, 150, 175, 200
Eight-sided Applicator	Total length 100, coating width 80	50, 75, 100, 125, 150, 175, 200
Square Applicator	25x25, coating width 16	37, 50, 75, 100
Square Applicator	50x50, coating width 41	50, 100
Standard four-sided Applicator	Total length 100, coating width 80	All specifications and sizes support non-standard customization
Extended four-sided Applicator	Total length 190, coating width 160
