CHINA Ceramic Film Applicator SZQ-130 30/60/90/120μm

Zirconia ceramic material, film thickness of 30μm, 60μm, 90μm, 120μm, application width of 130mm, with factory accuracy test report.

Model：

SZQ-130 30/60/90/120

Certificate

HuiNuo

Chinese general agent

Contact

Details SPEC

HuiNuo SZQ-130 30/60/90/120 Ceramic Film ApplicatorSPEC

HuiNuo SZQ-130 30/60/90/120 Ceramic Film ApplicatorDetails

HuiNuo SZQ-130 30/60/90/120 Ceramic Film ApplicatorPacking list

SKU: NB045754

SZQ-130 30/60/90/120

Ceramic Film Applicator

Zirconia ceramic material, film thickness of 30μm, 60μm, 90μm, 120μm, application width of 130mm, with factory accuracy test report.

This four-sided paint film preparer is made of zirconia ceramic, which is suitable for film proofing of corrosive materials such as strong acids and alkalis, and can also be used for general material film making, with wide applicability. SZQ-130 30/60/90/120μm Ceramic Wet Film Applicator is an I-type preparer.Available in four film thicknesses:30μm, 60μm, 90μm, 120μm, coating width 130mm.

The ceramic wet film preparer is customized on demand, and it is necessary to communicate with the technical customer service in detail about the specific customization needs.

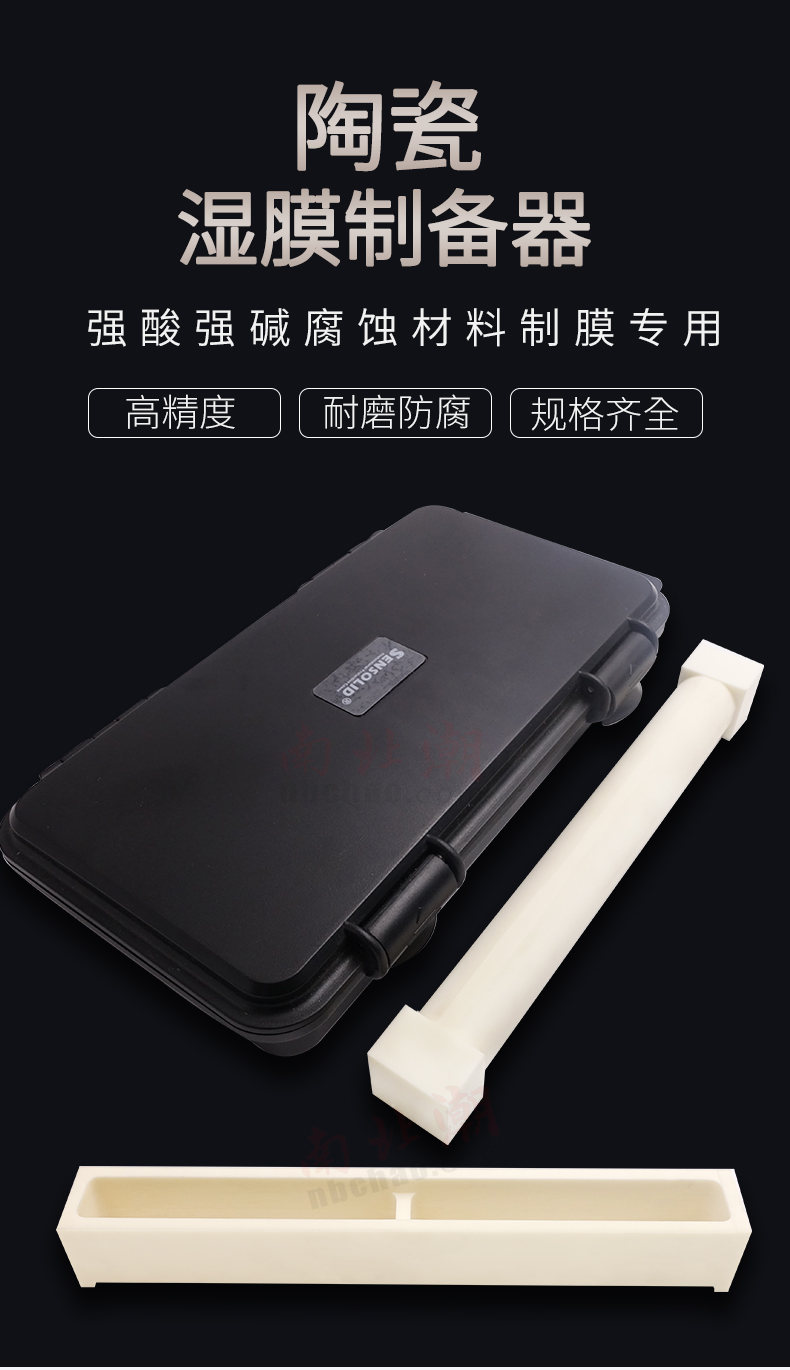

Detail Figure 1 of the SZQ-130 30/60/90/120 Ceramic Wet Film Applicator

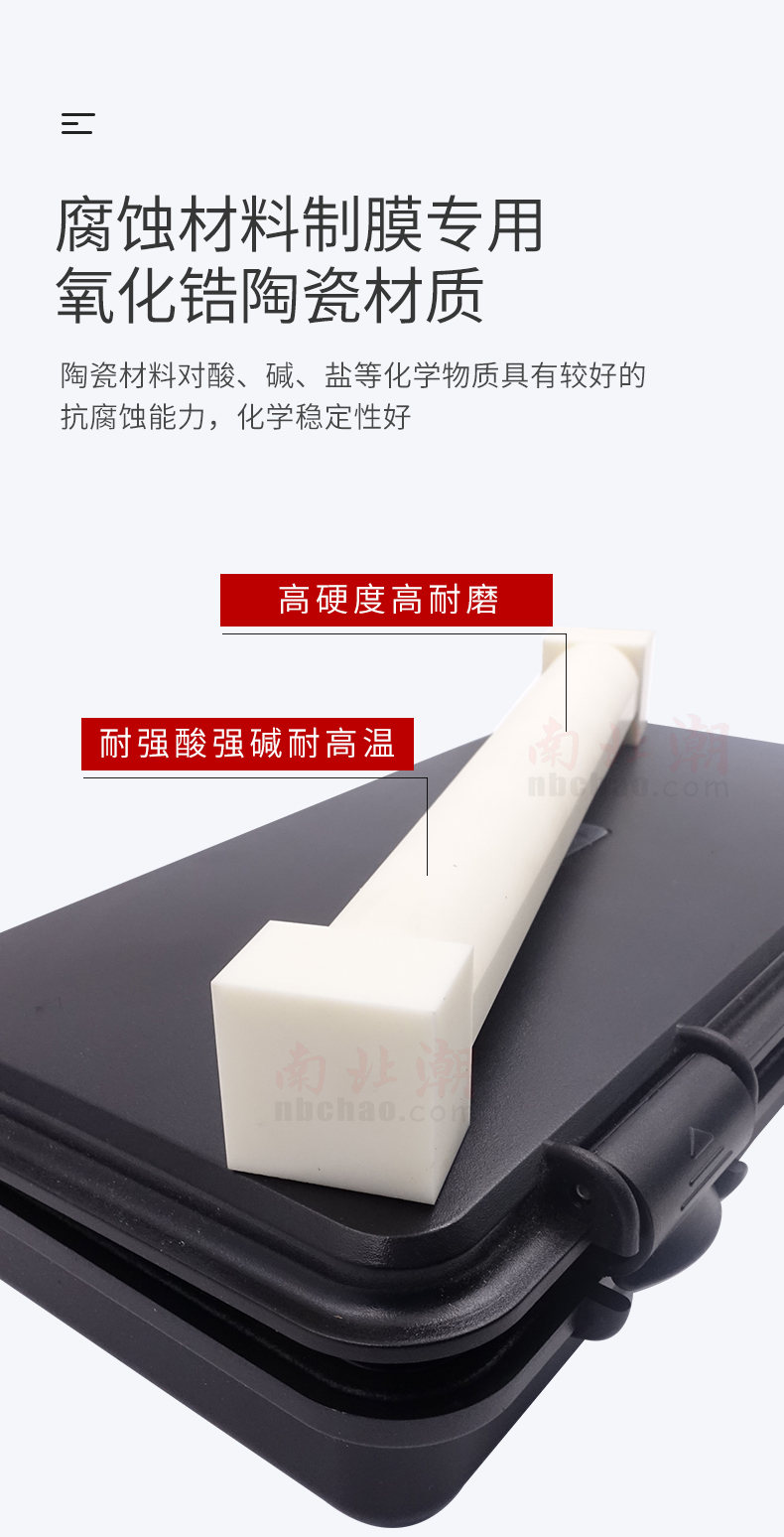

Detail Figure 2 of the SZQ-130 30/60/90/120 Ceramic Wet Film Applicator

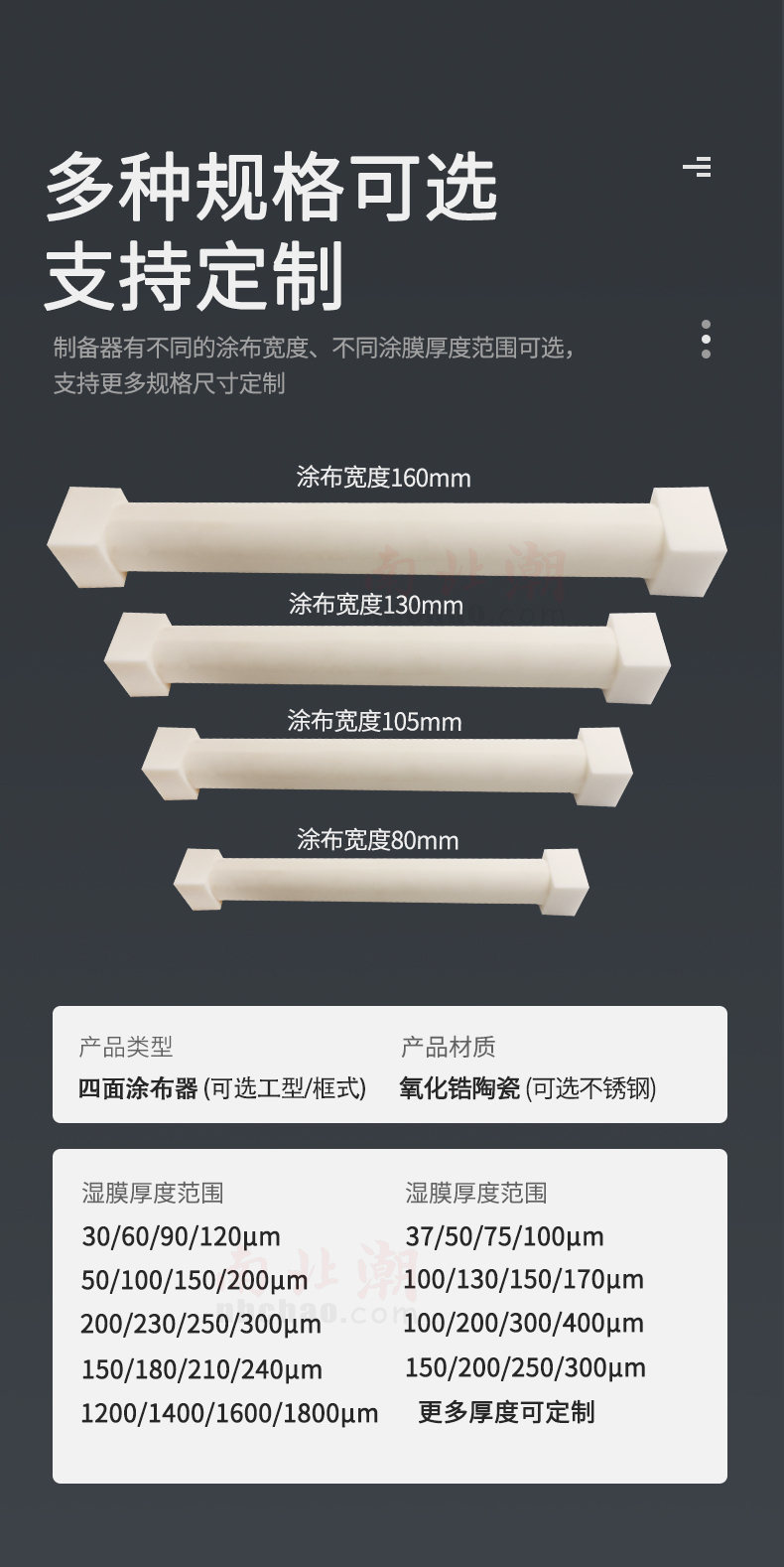

Detail Figure 3 of the SZQ-130 30/60/90/120 Ceramic Wet Film Applicator

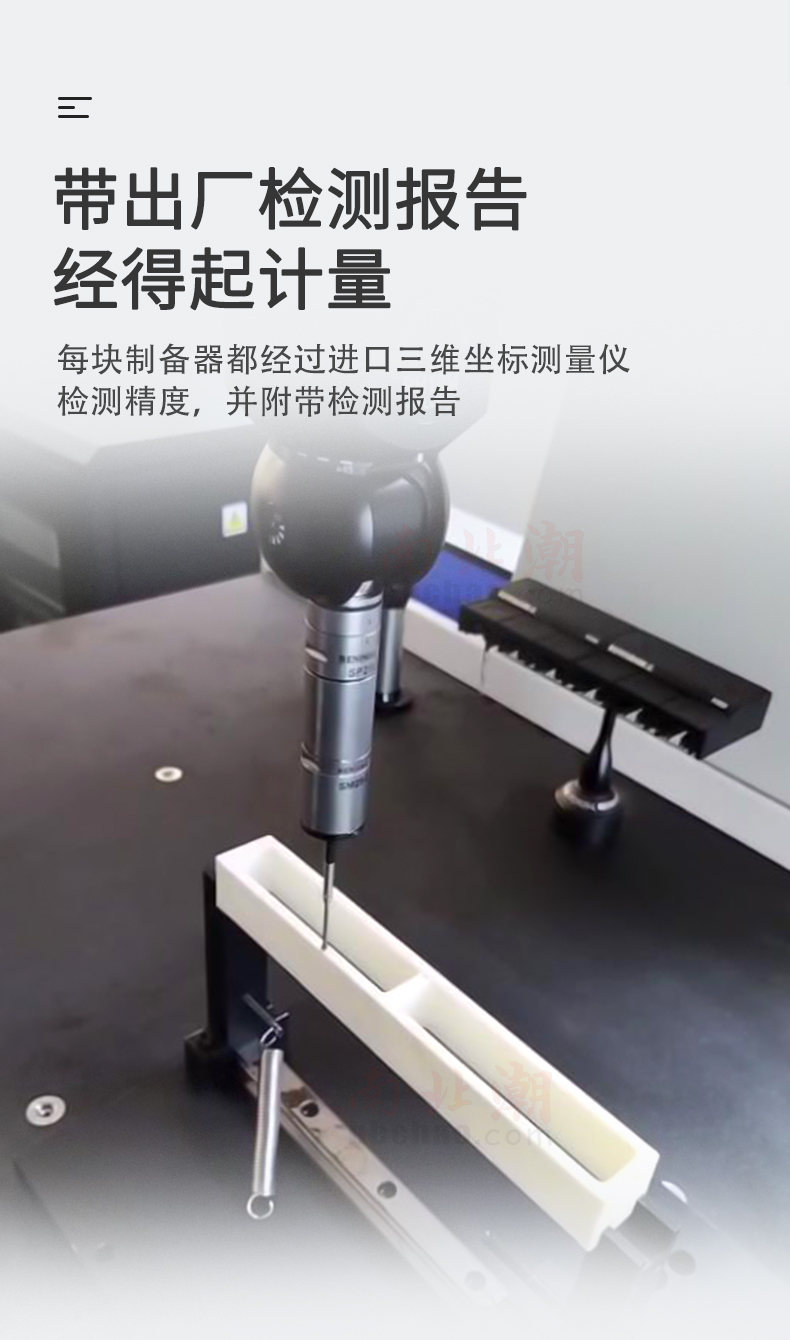

HUINUO SZQ-130 30/60/90/120 Ceramic Wet Film Applicator Details Figure 4

Detail Figure 5 of the SZQ-130 30/60/90/120 Ceramic Wet Film Applicator

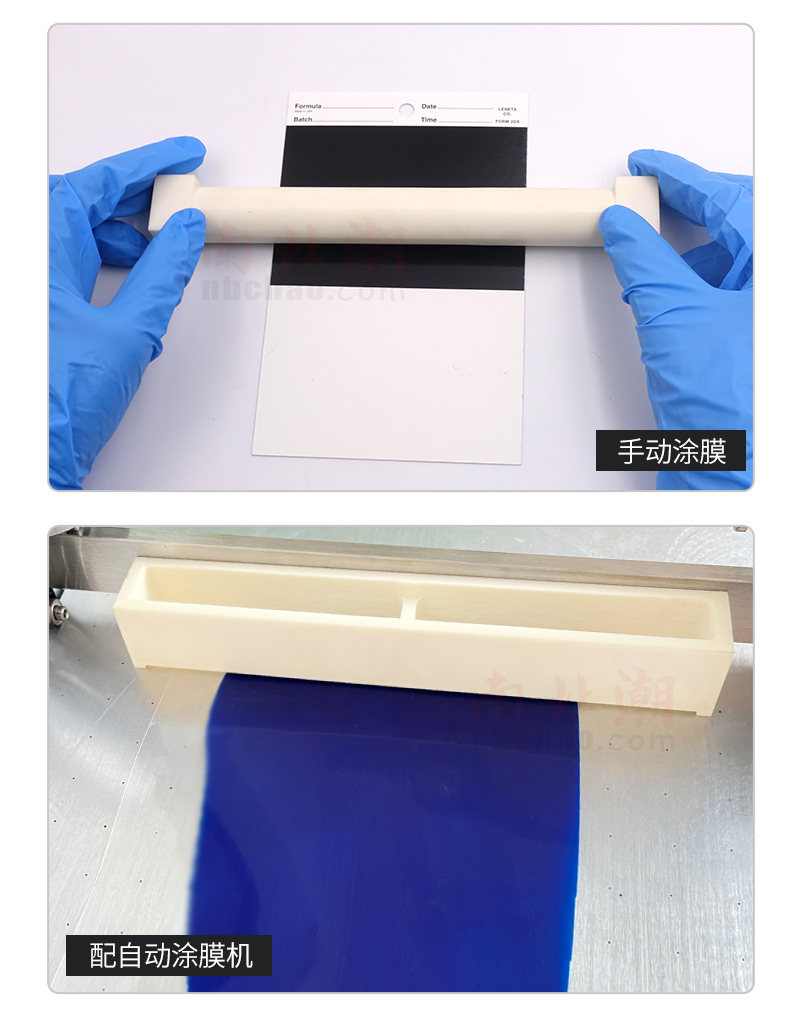

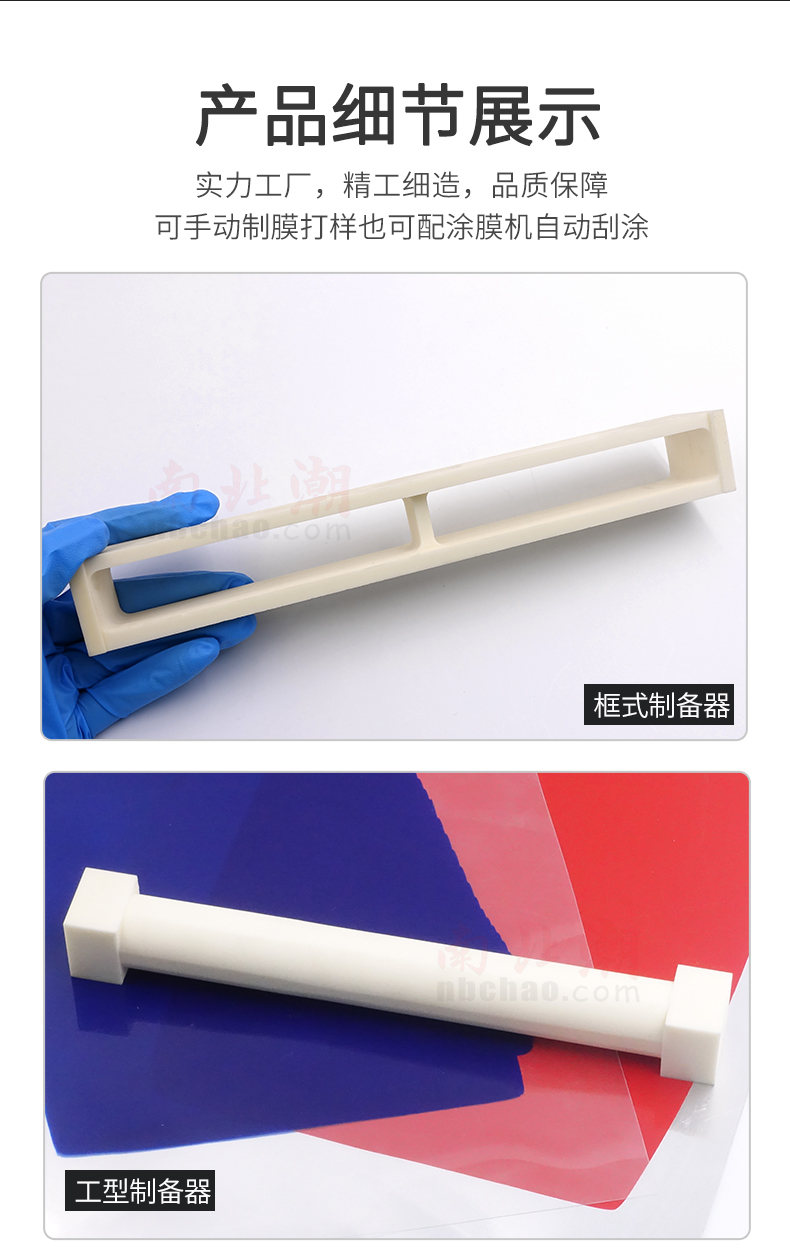

HUINUO SZQ-130 30/60/90/120 Ceramic Wet Film Applicator Details Figure 6 Detail Figure 7 of the SZQ-130 30/60/90/120 Ceramic Wet Film Applicator

Features

1. Zirconia ceramic material, with good wear resistance, suitable for making film of corrosive materials.

2. It has a variety of coating film widths of 80mm, 105mm, 130mm and 160mm, and supports customization of different specifications and thicknesses

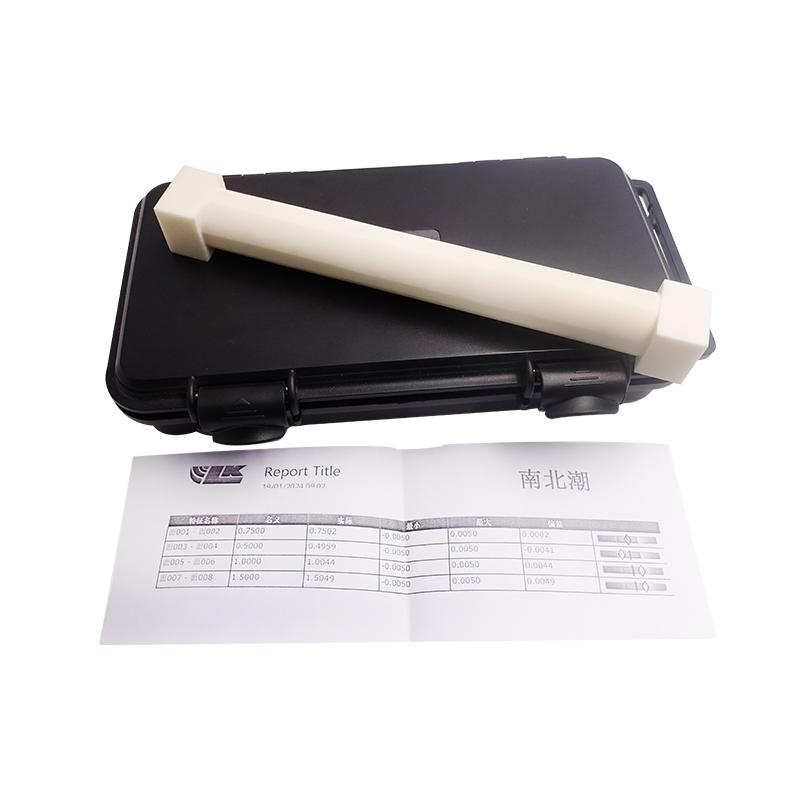

3. Imported three-coordinate detection accuracy, with factory test report, can stand up to measurement

Parameter table of the preparator series

name	Specification mm	Wet film thickness μm
Single-sided preparer	The Total length is 80, and the coating width is 50 and 75	50、75、100、125、150、175、200
Double-sided preparer	The Total length is 100, and the coating width is 80	25、50、75、100、150、175、200、300、400
Frame preparer	The Total length is 90, and the coating width is 80	30、50、60、90、120、150、200
Octaveral preparer	The Total length is 90, and the coating width is 68	50、75、100、125、150、175、200
Octaveral preparer	The Total length is 100, and the coating width is 80	50、75、100、125、150、175、200
Square preparer	25x25, coating width 16	37、50、75、100
Square preparer	50x50, coating width 41	50、100
Standard four-sided preparer	The Total length is 100, and the coating width is 80	All specifications and sizes, support non-standard customization
Extended four-sided preparer	The Total length is 190, and the coating width is 160
