CHINA Ceramic Wet Film Applicator SZQ-160 1200/1400/1600/1800μm

Zirconia ceramic material, I-shaped Coating Applicator, 4-sided film thickness 1200μm, 1400μm, 1600μm, 1800μm, application width 160mm, with factory accuracy test certificate, can be customized.
Certificate
Contact
Details SPEC VIDEO
Similar products

HuiNuo SZQ-160 1200/1400/1600/1800μm Ceramic Film ApplicatorSPEC

HuiNuo SZQ-160 1200/1400/1600/1800μm Ceramic Film ApplicatorDetails

HuiNuo SZQ-160 1200/1400/1600/1800μm Ceramic Film ApplicatorPacking list

SKU
NB045766
SZQ-160 1200/1400/1600/1800μm
Ceramic Film Applicator
Zirconia ceramic material, I-shaped Coating Applicator, 4-sided film thickness 1200μm, 1400μm, 1600μm, 1800μm, application width 160mm, with factory accuracy test certificate, can be customized.

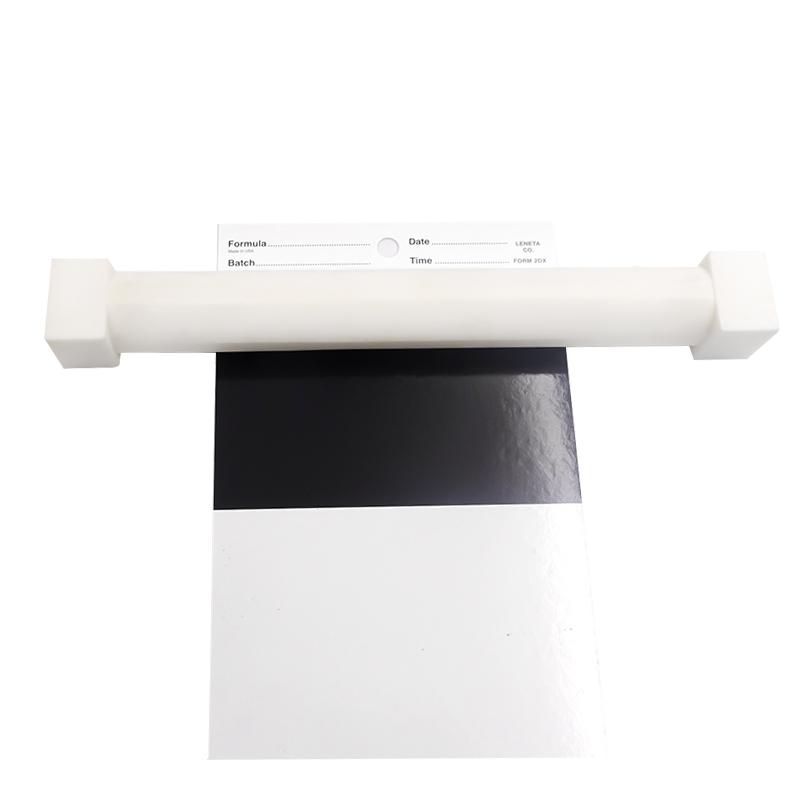

CHINA Ceramic Wet Film Applicator SZQ-160 1200/1400/1600/1800μm Picture

Introduction

SZQ-160 1200/1400/1600/1800μm Wet Film Applicator is made of zirconia ceramic, which is a four-sided film coater, with a coating film thickness of 1200μm, 1400μm, 1600μm, 1800μm, a coating width of 160mm, and a Total length of 190mm.

The Wet Film Applicator is a manual laboratory film coater, which can also be automatically coated with a film coating machine, with different coating width specifications to choose from, support customization, and use zirconia ceramic material.Before the preparer leaves the factory, the dimensional accuracy is detected by imported three coordinates to ensure the accuracy of the coating film. The SZQ series preparers have:I-shaped, frame, square and other shapes are available, and can be divided into single-sided, double-sided, four-sided, and eight-sided Applicators according to the thickness of the coating film. This ceramic Wet Film Applicator is a customized coater, and the specific needs of the customer service should be communicated in detail before placing an order.


Detail Figure 1 of the SZQ-160 1200/1400/1600/1800μm Ceramic Wet Film Applicator

Detail Figure 2 of the SZQ-160 1200/1400/1600/1800μm Ceramic Wet Film Applicator

Detail Figure 3 of the SZQ-160 1200/1400/1600/1800μm Ceramic Wet Film Preparator

Detail Figure 4 of the SZQ-160 1200/1400/1600/1800μm Ceramic Wet Film Applicator

Detail Figure 5 of the SZQ-160 1200/1400/1600/1800μm Ceramic Wet Film Applicator

Detail Figure 6 of the SZQ-160 1200/1400/1600/1800μm Ceramic Wet Film Applicator

Detail Figure 7 of the SZQ-160 1200/1400/1600/1800μm Ceramic Wet Film Preparator

Features

1. Zirconia ceramic material, with good wear resistance, suitable for making film of corrosive materials.

2. It has a variety of coating film widths of 80mm, 105mm, 130mm and 160mm, and supports customization of different specifications and thicknesses

3. Imported three-coordinate detection accuracy, with factory test report, can stand up to measurement

Parameter table of the preparator series

nameSpecification mmWet film thickness μm
Single-sided ApplicatorThe Total length is 80, and the coating width is 50 and 7550、75、100、125、150、175、200
Double-sided ApplicatorThe Total length is 100, and the coating width is 8025、50、75、100、150、175、200、300、400
Frame preparerThe Total length is 90, and the coating width is 8030、50、60、90、120、150、200
Octaveral preparerThe Total length is 90, and the coating width is 6850、75、100、125、150、175、200
Octaveral preparerThe Total length is 100, and the coating width is 80
Square preparer25x25, coating width 1637、50、75、100
Square preparer50x50, coating width 4150、100
Standard four-sided ApplicatorThe Total length is 100, and the coating width is 80All specifications and sizes, support non-standard customization
Extended four-sided ApplicatorThe Total length is 190, and the coating width is 160
