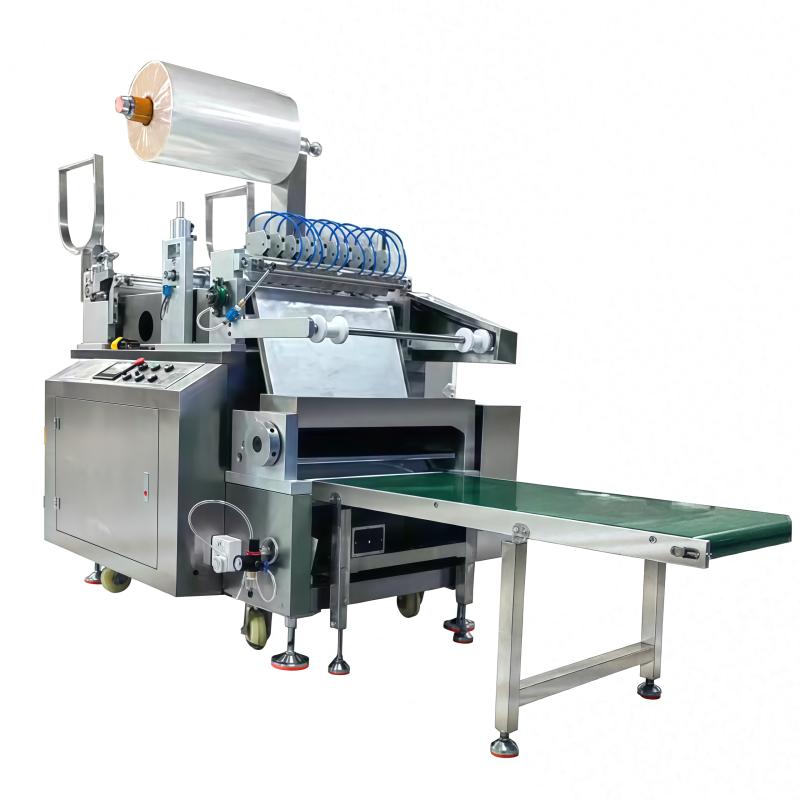

Pharmaceutical Patch Pilot Film Applicator NBC-ZYTJ500 Spreader Cutting Machine
SEUnwinding - Spreader - Fitting - Drying - Slitting, material roll diameter 500-700mm, servo system, hob type cross-cutting, application width 480mm.
$31162.00/set
PromotionLoading...
Coupon
Model：
NBC-ZYTJ500
Factory
Similar products
Factory NBC-ZYTJ500 Spreader cutting machineSPEC
Factory NBC-ZYTJ500 Spreader cutting machineDetails
Factory NBC-ZYTJ500 Spreader cutting machinePacking list
- SKU
- NB045779
- production speed
- 0-5M/min
- Application width
- 480mm
- Coil diameter
- 500-700mm
- Power
- 1.4KW
- Power
- Three-phase 220V
- size
- 2650X1100x1700mm (LxBxH), footprint: 2.3 square meters (including conveyor belt)
- Weight
- 1200kg
- Equipment power
- Control system
- unroll
- With tension control
- control
- Touch screen (Kunlun Tongtai)
- Vertical cutter installation
- 3
- Toolbox
- 1 (with: Thickness gauge, screw driver, tracheal interface 1)
- inflated shaft
- 2
- Painting process
- Unwinding, Spreader, Fitting, Drying, Slitting
NBC-ZYTJ500
Spreader cutting machine
Unwinding - Spreader - Fitting - Drying - Slitting, material roll diameter 500-700mm, servo system, hob type cross-cutting, application width 480mm.
Introduction
The special pilot film coating machine for pharmaceutical patches is an automatic roll film coating machine that integrates coating, cutting, drying and unwinding. It is suitable for film coating of patches, pharmaceutical patches, and hydrogel patches. It is commonly used In medical, cosmetics, sanitary products and other fields. This coating machine has a slitting function and supports UV curing.
Product Structure
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
