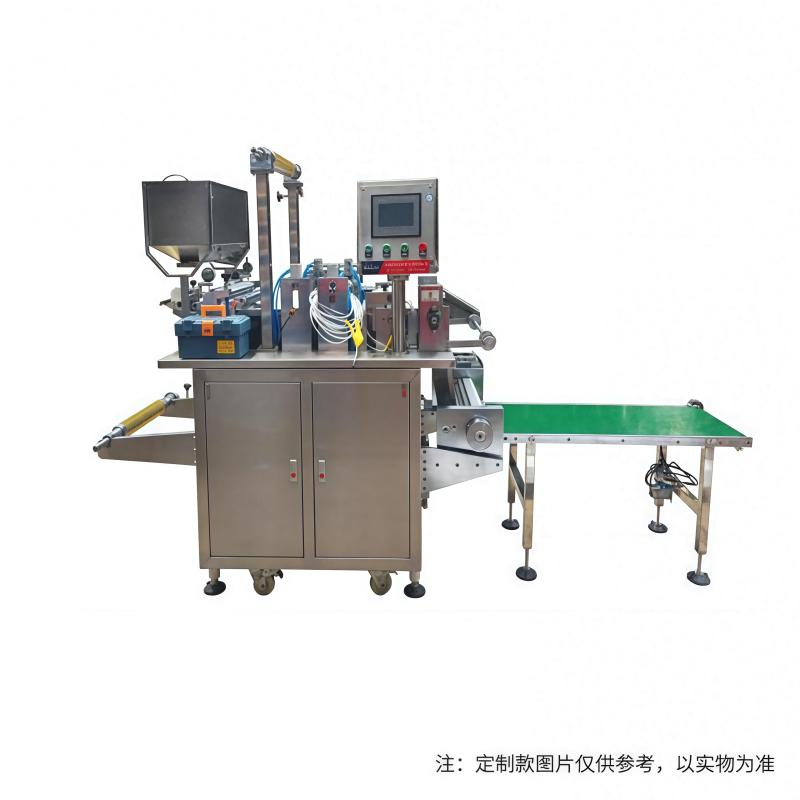

Pharmaceutical Patch Coater Rxg-01/300uvcx pro Spreader cutting Coater
SEProcess: unwinding - Spreader - film laminating - slitting, material roll diameter 3 inches, servo system, hob type cross cutting, effective application width 300mm.
$23389.00/set
PromotionLoading...
Coupon
Model：
Rxg-01/300uvcx pro
Factory
Similar products
Factory Rxg-01/300uvcx pro Spreader cutting machineSPEC
Factory Rxg-01/300uvcx pro Spreader cutting machineDetails
Factory Rxg-01/300uvcx pro Spreader cutting machinePacking list
- SKU
- NB045781
- production speed
- 0-5m/min
- Effective application width
- ≤300mm
- Coil diameter
- 3 inches.
- Power
- 1.4KW
- Power supply Voltage
- Three-phase 220V
- Motor type
- Control system
- cross-cutting
- Hob type (servo system)
- unroll
- With tension control
- Control mode
- Touch screen (Kunlun Tongtai)
- Vertical cutter installation
- 3
- Toolbox
- 1 (with: Thickness gauge, screw driver, tracheal interface 1)
- inflated shaft
- 2
- Spreader process
- Unwinding → Spreader → film laminating → slitting
Rxg-01/300uvcx pro
Spreader cutting machine
Process: unwinding - Spreader - film laminating - slitting, material roll diameter 3 inches, servo system, hob type cross cutting, effective application width 300mm.
Introduction
The special pilot film coating machine for pharmaceutical patches is an automatic coil coating machine integrating coating, cutting, drying and unwinding, which is suitable for plastering, pharmaceutical patches and hydrogel film coating.It is often used in medical, cosmetic, sanitary products and other fields. This coater is equipped with a slitting function and supports UV curing.

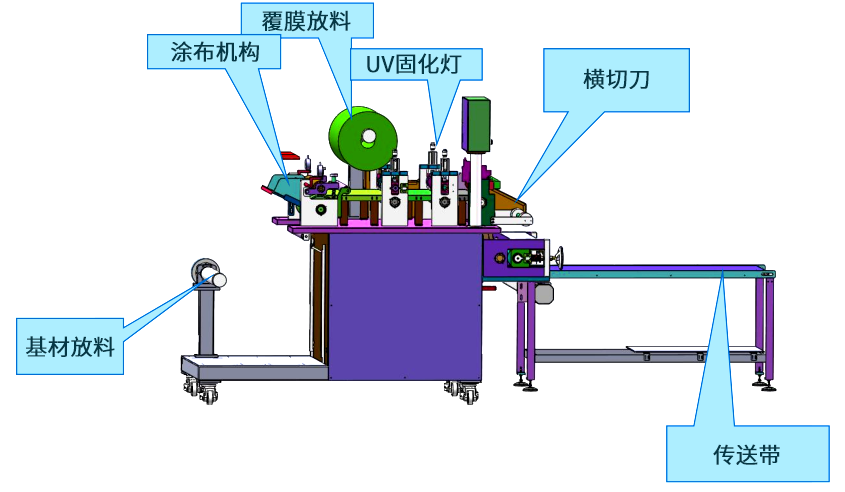

Product structure diagram
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
