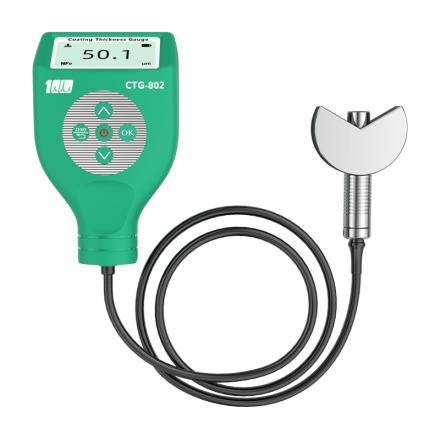

YiBai CTG-802-1500FNV split iron-aluminum dual-use standard large V type Coating Thickness Gauge Specifications
Search
Brand：YiBai
Model：CTG-802-1500FNV split iron-aluminum dual-use standard large V type
Name：Coating Thickness Gauge
Specifications
| monitor | LCD dot matrix LCD screen |
| Standard Measurement Range | 0~1500μm |
| Optional Measurement Range | 0-2000μm，0-3000μm |
| measurement Accuracy | ±2%H+1μm |
| Thinnest substrate | 0.3mm |
| Minimum surface | F: convex 1.5mm, N: convex 3mm |
| measurement mode | Single measurement and continuous measurement |
| conversion function | With metric and British unit conversion function, it realizes μm/mil conversion |
| Power Supply | 2 × 1.5V AAA AA batteries |
| operating conditions | -10~50 ℃, humidity < 80% |
| Host size | 101×61×26mm |
| Weight | Approximately 54g (excluding batteries) |
Packing list
host X1, standard piece X6, base X1, manual X1, battery X2, warranty card X1, certificate X1, portable case X1.
After-sales instructions
Warranty days: 365 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/45788/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
