TQC SP1705 cross-cut cutter head 11 teeth, spacing 1mm Suitable for CC2000/CC3000 series

SE
Number of teeth 11, tooth spacing 1mm; Coating thickness within 50μm; ASTM 3359 standard.
$363.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con
Similar products

TQC sheen SP1705 Cross-cut knife headSPEC

TQC sheen SP1705 Cross-cut knife headDetails

TQC sheen SP1705 Cross-cut knife headPacking list

SKU
NB004579
Number of teeth
11 teeth
Tooth spacing
1mm
Instrument material
stainless steel
Application standard
ASTM D3359
Applicable film thickness environment
0~50µm
SP1705
Cross-cut knife head
Number of teeth 11, tooth spacing 1mm; Coating thickness within 50μm; ASTM 3359 standard.

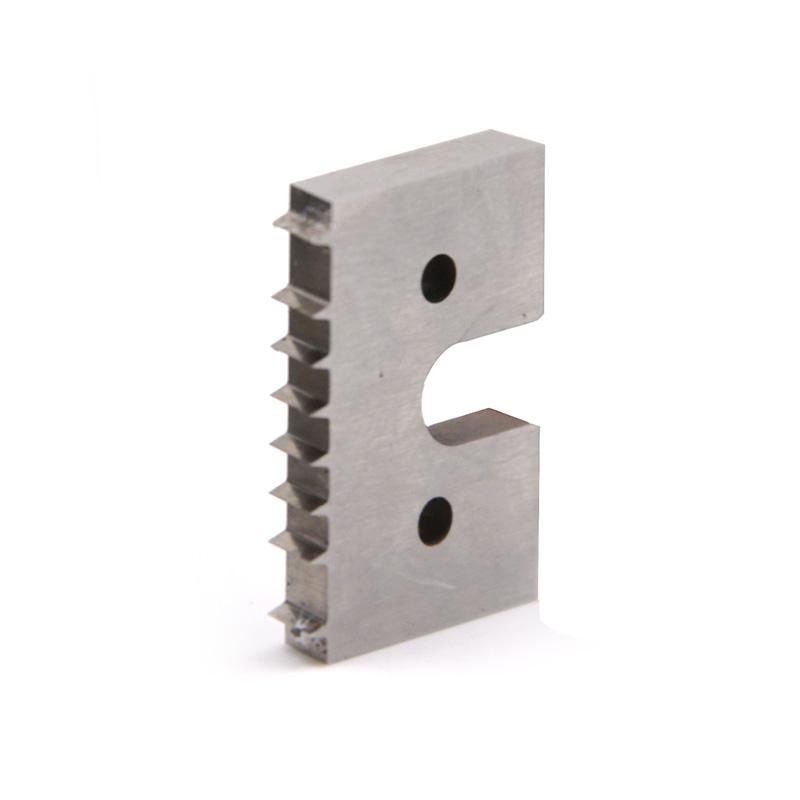

TQC SP1705 cross-cut cutter head 11 teeth, spacing 1mm Suitable for CC2000/CC3000 series Picture

Specifications

modelstandardbladeMaterialSuitable for thick film environment
SP1702ISO/DIN 24096 teeth, 1mm spacingStainless steel<60µm (hard substrate)
SP1703ISO/DIN 24096 teeth, 2mm spacingStainless steel＜60µm (soft substrate)＞61-120µm
SP1704ISO/DIN 24096 teeth, spacing 3mmStainless steel121-250µm
SP1705ASTM 335911 teeth, 1mm spacingStainless steel0-50µm
SP1706ASTM 335911 teeth, pitch 1.5mmStainless steel50-125µm

Detail of cross cutter head

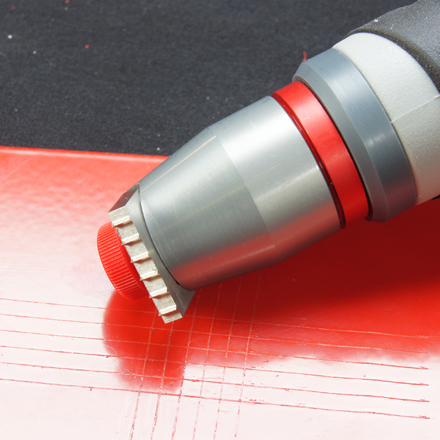

Detail of cross cutter head 1

Take you into the Dutch TQC

Introduction to Dutch TQC 1

Introduction to Dutch TQC 2

Introduction to Dutch TQC 3

FAQ
QDetermination of water-based interior-wall Coating adhesion, is this cross-cutting knife suitable?
A This model is suitable for the determination of water-based inner and outer wall Coating adhesion in architectural coatings. The cross-cut test is mainly carried out with knives, and the firmness of the Coating to the substrate is judged according to the number of squares of the film peeling. Use a sharp blade and a scale steel ruler to cut 11 cuts with a distance of 1mm in the vertical and horizontal directions of the test plate, and the vertical and horizontal cuts intersect into 100 squares. So it is applicable.
QDo you have a tungsten steel hundred grid knife blade? Is this model 11-tooth 1mm? Can it match the Miscellaneous brand?
A This one has 11 teeth and 1mm, but the structure of the knife head produced by different manufacturers is different, and it may not be fixed on your hundred grid knife. Please be careful when purchasing.
