UK RK KHC.02.S Long coating rod Drawdown Plate set, choose 8 models from 0 to 9 wire rods
SE
KHC.02.S
RK KHC.02.S Applicator rod Drawdown Plate SetSPEC
RK KHC.02.S Applicator rod Drawdown Plate SetDetails
RK KHC.02.S Applicator rod Drawdown Plate SetPacking list
- SKU
- NB000458
- Production process
- wire-wound
- WFT
- 4~125μm
- diameter
- 9mm
- Total length
- 375mm
- application width
- 255mm
- material
- stainless steel

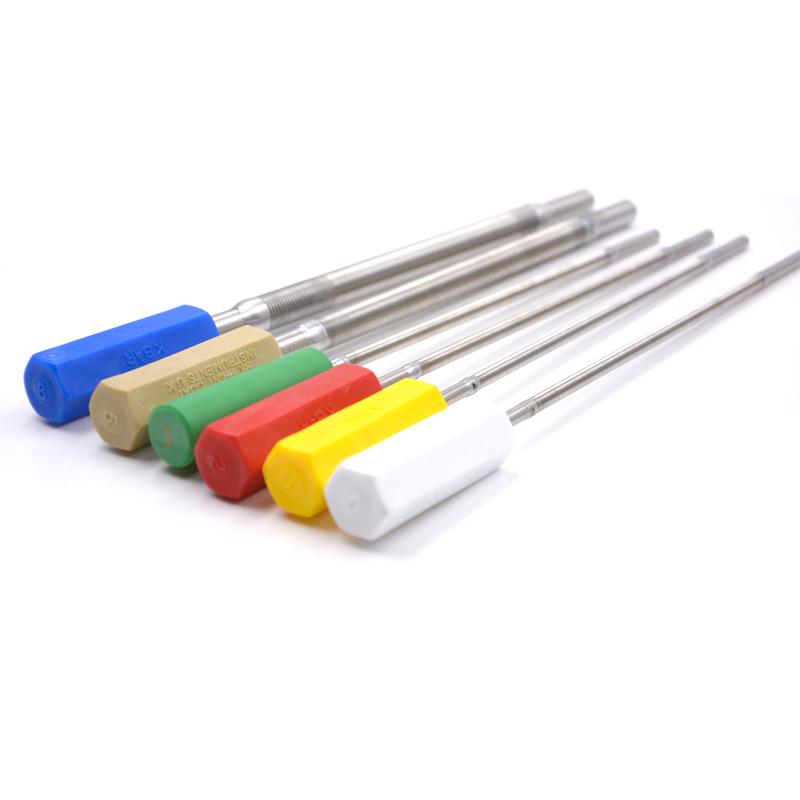

RK long wire rod set contains the following products
| product | quantity | Model specifications |
| RK long wire rod | 8 roots | Coating width 25.5cm |
| Imprinting bed | 1 | S.KHC.02 (24 x 34 cm) |
| Proofing paper | 500 sheets | ** |
| Bracket | one | KHC.301 |
Long wire rod model technical parameters
| Order number | Total length (cm) | Coating width (cm) | Diameter (cm) | Wet film thickness (μm) | describe |

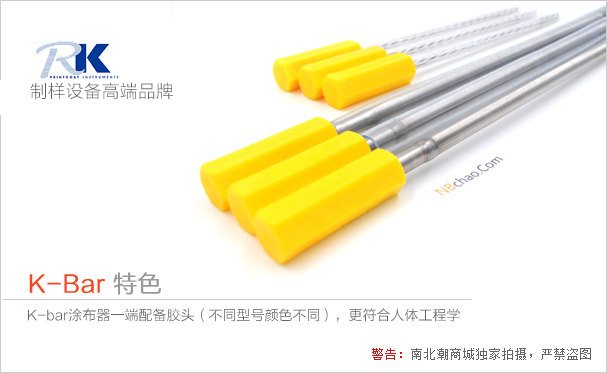

| KHC.11.0 | 37.5 | 25.5 | 0.9 | 4 | No. 0 long stick, with a white rubber tip at the handshake end |
| KHC.11.1 | 37.5 | 25.5 | 0.9 | 6 | No. 1 long stick, with a yellow rubber tip at the handshake end |
| KHC.11.2 | 37.5 | 25.5 | 0.9 | 12 | No. 2 long stick, with a red rubber tip at the handshake end |
| KHC.11.3 | 37.5 | 25.5 | 0.9 | twenty four | No. 3 long stick, with a green rubber tip at the handshake end |
| KHC.11.4 | 37.5 | 25.5 | 0.9 | 40 | No. 4 long stick, with a black rubber tip at the handshake end |
| KHC.11.5 | 37.5 | 25.5 | 0.9 | 50 | No. 5 long stick, with a golden brown rubber tip at one end of the handshake |
| KHC.11.6 | 37.5 | 25.5 | 0.9 | 60 | No. 6 long stick, with an orange rubber tip at the handshake end |
| KHC.11.7 | 37.5 | 25.5 | 0.9 | 80 | No. 7 long stick, with a brown rubber tip at the handshake end |
| KHC.11.8 | 37.5 | 25.5 | 0.9 | 100 | No. 8 long stick, with a blue rubber tip at the handshake end |
| KHC.11.9 | 37.5 | 25.5 | 0.9 | 125 | No. 9 long stick, with a brown rubber tip at one end of the handshake |
The functions of each product in RK short wire rod set

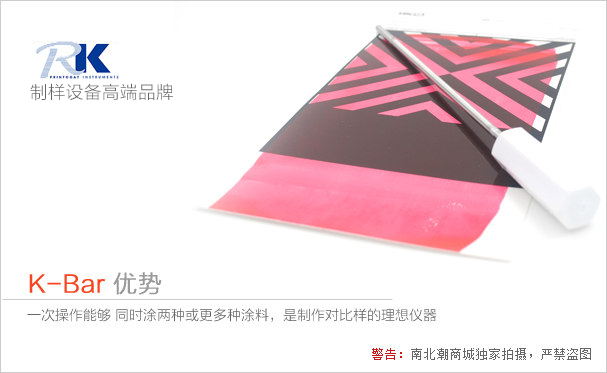

 | K Hand Coater short line rod: Provides a simple and effective coating method that can be used to apply coatings to a variety of substrates, including paper, cardboard, plastic film, foil, metal plates, glass plates, wooden boards, etc. Two or more coatings can be applied simultaneously in one operation, making it an ideal instrument for making comparison samples. |

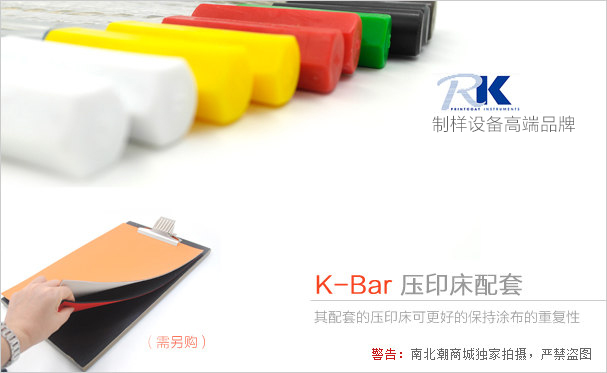

 | RK imprinting bed: Used with the RK imprinting bed, compared to proofing directly on hard substrates, proofing on the RK imprinting bed has better repeatability and proofing effects. This is because the soft imprinting bed can absorb the pressure exerted by the operator on proofing to a certain extent, thus making the proofing effect better. |
 | Washing rack |

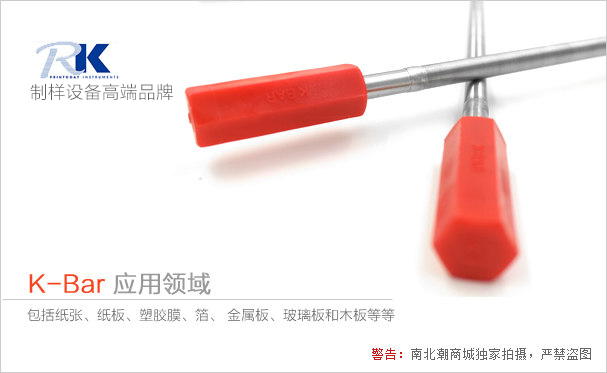

Application fields of RK long wire rod set
Long wire rods are used for research, testing and quality control in the testing of inks, coatings, adhesives and various emulsions. Applicable substrates for RK wire rods include paper, cardboard, plastic film, metal foil, etc.
Coating and proofing operation method
1. First prepare a substrate of appropriate size for proofing.
RK company can provide two kinds of proofing paper for proofing (500 sheets per package, half of the proofing paper is coated with varnish, and the other half is without varnish)
â For small printing beds, the specification is 12Ã21cm
â For large imprinting beds, the specification is 18Ã31cm
2. Place the substrate on the imprinting bed and clamp it with clamps.
3. Select a suitable type of short squeegee rod (please refer to relevant information) and place it on the imprinting bed, close to the clamp.
4. Place the paint or varnish used for proofing near the clamp, about 1cm below the ink filament stick. (Please control the dosage yourself)
5. After proofing, put the long wire rod into a suitable solvent, clean it, and wipe it dry with a cloth. Please note that the wire rod should always be kept dry
