CHINA 4-sided Film Applicator SZQ-80 15/30/60/90μm
SE
SZQ-80 15/30/60/90μm
-
CHINA SZQ-150 15/30/60/90μm 4-sided film Applicator Wet Film Applicator$ 257.00SE -
TQC VF2173 4-sided Coating Applicator 15/30/60/90µm$ 1114.00SE -
TQC VF2168 4-sided Coating Applicator wet-film wiper 15/30/60/90µm$ 1008.00SE -
TQC VF2145 Baker Coating Applicator Baker Film Applicator 15/30/60/90µm$ 909.00SE -
TQC VF1500 Baker Coating Applicator strip Film Applicator 15/30/60/90µm$ 909.00SE
HuiNuo SZQ-80 15/30/60/90μm 4-Sided ApplicatorsSPEC
HuiNuo SZQ-80 15/30/60/90μm 4-Sided ApplicatorsDetails
HuiNuo SZQ-80 15/30/60/90μm 4-Sided ApplicatorsPacking list
- SKU
- NB045809
- type
- 4-sided
- WFT
- 15/30/60/90μm
- Application width
- 80mm
- Accuracy
- ±2μm
- material
- 9Cr18Mo stainless steel
- Total length
- 100mm
Introduction
SZQ-80 50/100/150/200μm is a four-sided Film Applicator. The coating thickness is 50/100/150/200μm , the coating width is 80mm, the Total length is 100mm, and the coating accuracy is ±2μm. It is a standard four-sided Applicator.

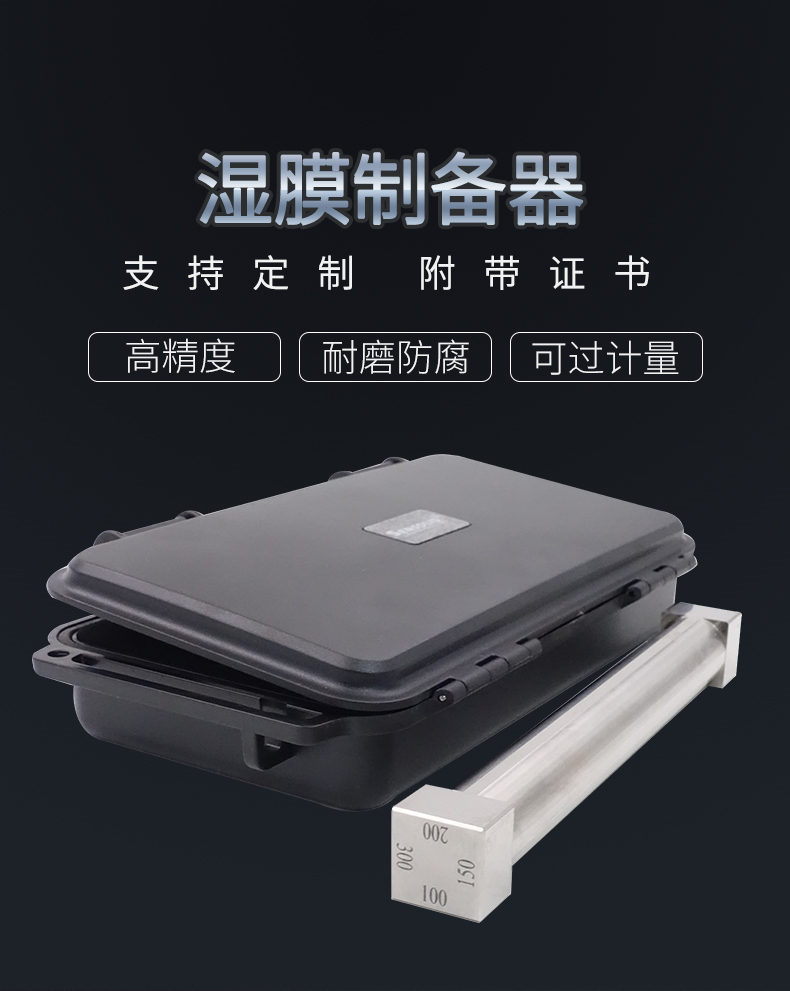

The Wet Film Applicator is a manual laboratory applicator with different coating width specifications to choose from. It is made of high-carbon chromium wear-resistant and anti-corrosion stainless steel. The dimensional accuracy of the preparer is tested with imported three-dimensional coordinates before leaving the factory to ensure the quality of the coating film. accuracy. The SZQ series preparers are available in various shapes such as I-shaped, frame-shaped, and square. According to the thickness of the coating film, they can be divided into single-sided, double-sided, four-sided, and eight-sided Applicators. The Wet Film Applicator is suitable for film production of paints, glues, coatings, inks, new chemical materials, etc. It can be equipped with a film coating machine for automatic film scraping. NBCHAO provides customized preparation service.
Features

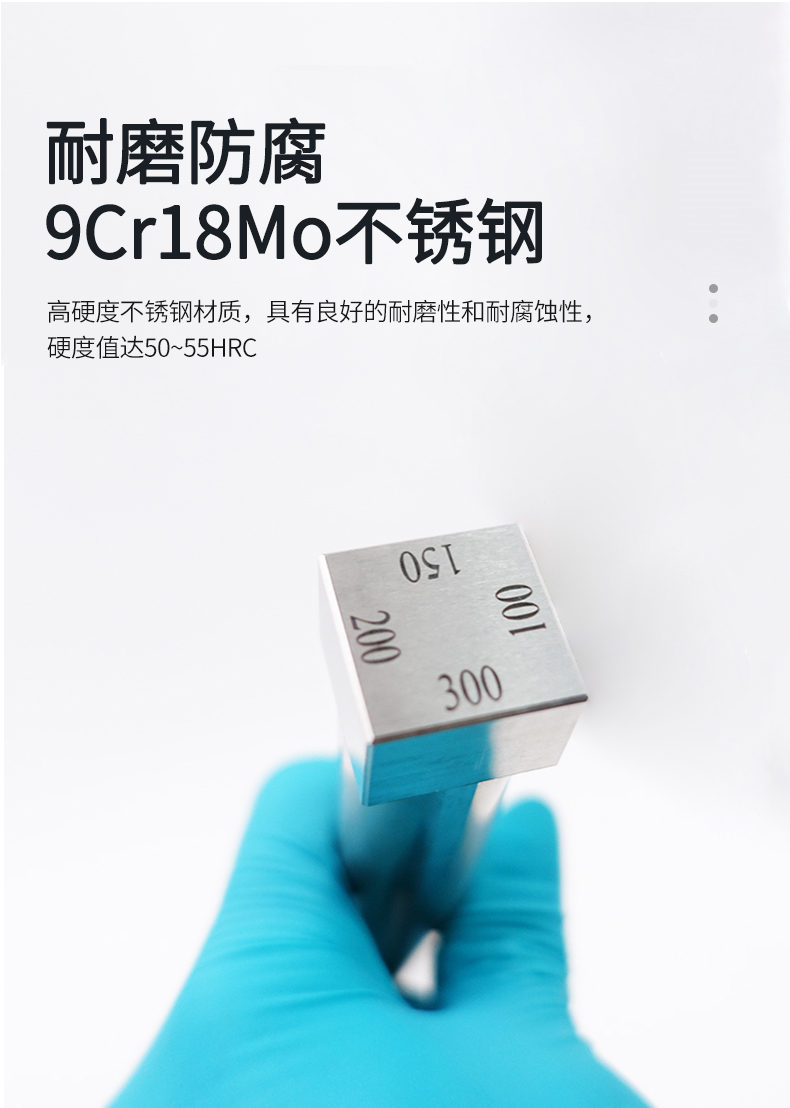

1. 9Cr18Mo high-hardness stainless steel material has good wear resistance and corrosion resistance, with a hardness value of 50~55HRC.
2. Coating film accuracy is ±2μm.
3. Smooth surface, diverse styles, wide range of applications, and supports customized specifications

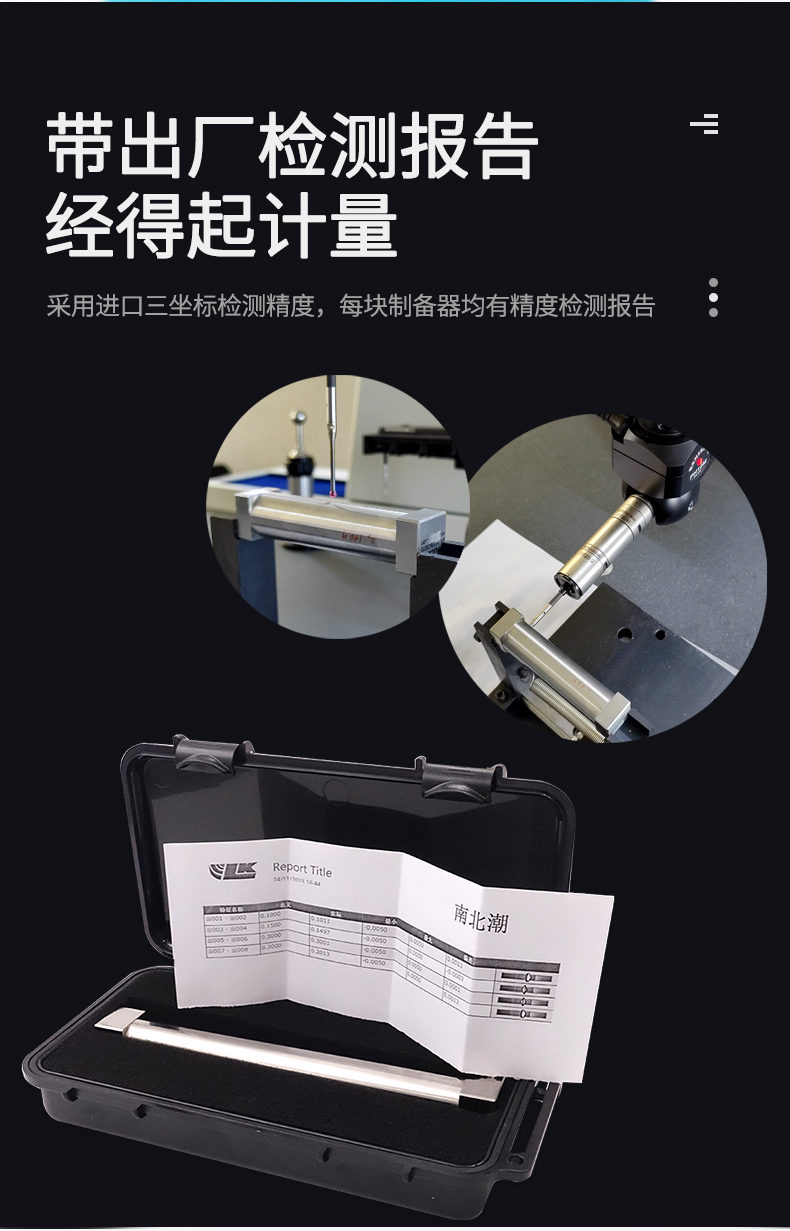

4. It adopts imported three-coordinate detection accuracy and comes with factory inspection report, which can withstand measurement.
Preparator series parameter table
| name | Specificationsmm | Wet film thickness μm |
| single sided Applicator | Total length 80, coating width 50, 75 | 50, 75, 100, 125, 150, 175, 200 |
| Double sided Applicator | Total length 100, coating width 80 | 25, 50, 75, 100, 150, 175, 200, 300, 400 |
| Frame Applicator | Total length 90, coating width 80 | 30, 50, 60, 90, 120, 150, 200 |
| Eight-sided Applicator | Total length 90, coating width 68 | 50, 75, 100, 125, 150, 175, 200 |
| Eight-sided Applicator | Total length 100, coating width 80 | |
| Square Applicator | 25x25, coating width 16 | 37, 50, 75, 100 |
| Square Applicator | 50x50, coating width 41 | 50, 100 |

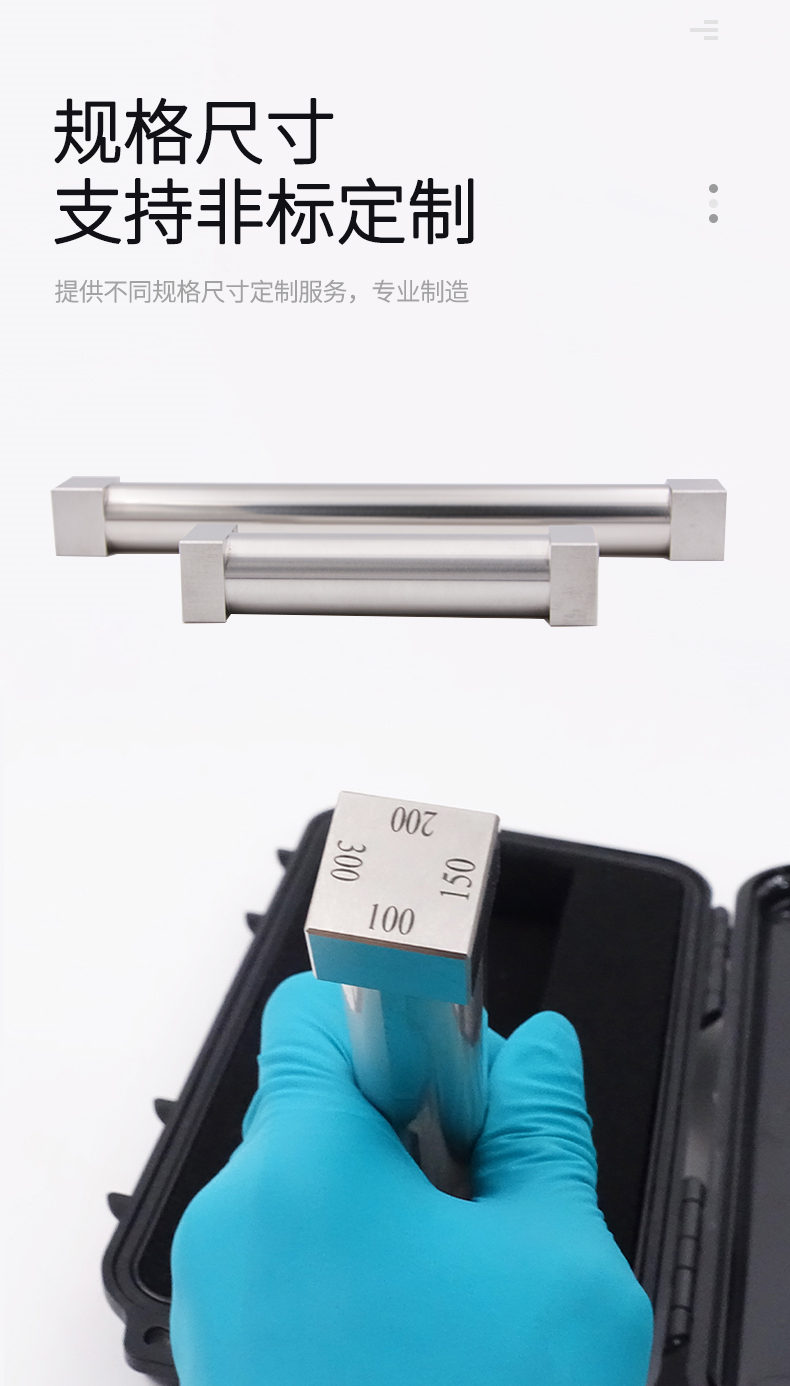

| Standard four-sided Applicator | Total length 100, coating width 80 | All specifications and sizes support non-standard customization |
| Extended four-sided Applicator | Total length 190, coating width 160 |
