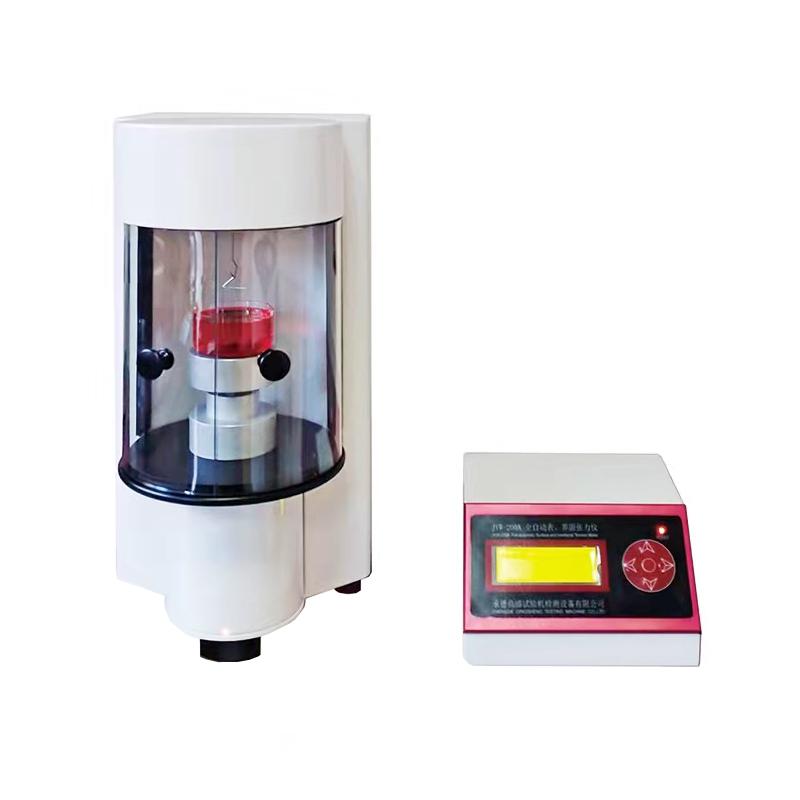

CHINA JYW-200A Automatic interfacial tension instrument Measurement range 0~500.0mN/m

JYW-200A

Automatic interfacial tensIon Meter

Measurement range 0~500.0mN/m, Accuracy 0.01mN/m, stable performance, strong anti-interference, automatic zero adjustment of software, automatic peak holding, automatic calculation of test results, automatic peak recording, automatic calculation of Correction factor, widely used in the development of new surfactants or mixed surfactants, wetting paint and pigments, stabilizing latex, development of drugs and cosmetics production, ink flow characteristics, etc.

Introduction

JYW-200A fully automatic surface tensIon Meter is an instrument used to measure the surface tension of liquids. It can automatically perform measurement operations without manual intervention. This instrument usually uses various methods to measure the surface tension of liquids, such as immersion method, titration method, suspension method, etc. During the experiment, the fully automatic surface tensIon Meter will automatically collect and analyze data, and then generate relevant surface tension data. Commonly used in various scientific research and industrial fields.

JYW-200A fully automatic meter and interfacial tensIon Meter is an instrument that uses physical methods to test the surface of a liquid and the interfacial tension between liquids. This instrument can quickly and accurately measure the surface and interfacial tension values ​​of various liquids. It is used in the water and electricity department to test the interfacial tension value of electrical oil to strengthen the supervision of insulating oil quality. In petroleum, chemical industry, scientific research and other departments, the surface tension values ​​of various liquids can be tested to strengthen the analysis of various liquids (synthetic blood penetration test of surgical masks). It is used in colleges and universities and scientific research institutes for scientific research and teaching.

Features

1. Equipped with quartz glass, suitable for testing various strong acid and alkali solutions.

2. It adopts a new micro-controller for acquisition and control, with stable performance and strong anti-interference. The software automatically adjusts zero, automatically peaks, and automatically calculates test results.

3. Automatically calculate the correction factor and directly display the actual tension value of the liquid surface and interface.

4. Automatically calculate the average of actual tension values ​​from multiple experiments.

5. The large LCD displays four lines of Chinese characters, automatically records the peak value, automatically calculates the correction factor, displays the actual tension value and the maximum tension value, and has high test accuracy and good repeatability.

fit standard

• JB/T9388-2015 "Technical Conditions for Interface Tension Meter"

• SH/T1156-2014 "Synthetic Latex Surface Tensiometer Determination Method"

• ISO6295: 1983 "Petroleum products, mineral oils, oil to water interfacial tensiometer - Determination of ring method"

• ISO1409: 2020 "Determination of plastics, rubber, polymer dispersions and latex Surface Tensiometer"

• GB/T6541-86 "Determination of Oil-to-Water Interfacial Tension Meter for Petroleum Products (Ring Method)" is equivalent to the international ISO6295-1983.

• GB 19083-2003-2011 GB/T 4745-2011 "Technical Requirements for Medical Protective Masks"

• GB5549-2010 "Surface active agents - Determination of surface tension by pulling up liquid film method"

• GB/T 8077-2012 "Test Method for Homogeneity of Concrete Admixtures"

• JJF1464-2014 "Calibration Specifications for Interface Tension Meter"

Application areas

Widely used in the development of new surfactants or mixed surfactants, wetting paints and pigments, stabilizing latex, development of pharmaceutical and cosmetic production, flow characteristics of inks, surfactant concentration in electroplating cells, surfactants for biological preparations , oil field surfactants, admixtures, transformer oil quality testing, and synthetic blood penetration testing and teaching for surgical masks.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
