CHINA XJL-300C Pipe Impact Tester

SE
Impact height 0-2000mm, height positioning error +/- 1mm; Impact comparison tests can be carried out on samples of the same material and specification to identify the quality of the material mass.
$3211.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT

DINGSHENG XJL-300C Pipe Impact TesterSPEC

DINGSHENG XJL-300C Pipe Impact TesterDetails

DINGSHENG XJL-300C Pipe Impact TesterPacking list

SKU
NB045821
operating temperature
10-35℃
Operating Environment
There is no large vibration source nearby, no strong electromagnetic field; no corrosive medium in the environment, and pay attention to the good ventilation of the electric control box
Power
AC 220V +/- 10% 6A;
Hammer Mass
0.250 - 15.000kg, 0.25kg/increment
Workbench travel
0—300mm；
Hammer radius
RS5mm RS10mm RS30mm
Impact height
0—2000mm
Height positioning error
±1mm；
Dimension host (length × width × height)
600×570×3400mm
Machine Weight
About 550kg
XJL-300C
Pipe Impact Tester
Impact height 0-2000mm, height positioning error +/- 1mm; Impact comparison tests can be carried out on samples of the same material and specification to identify the quality of the material mass.

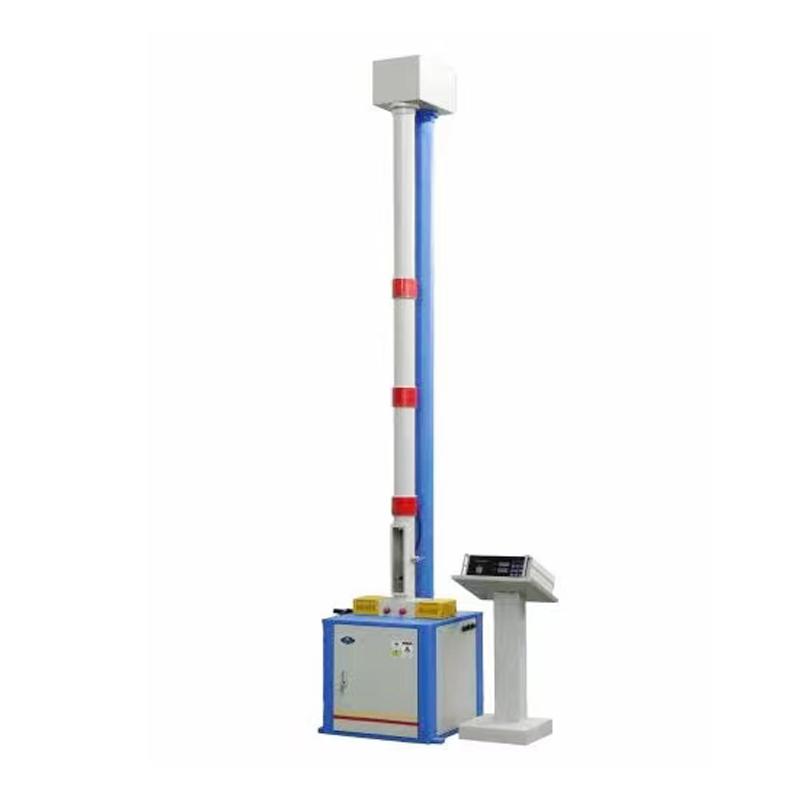

CHINA XJL-300C Pipe Impact Tester Picture

Introduction

The XJL-300C drop weight impact testing machine is suitable for impact testing on non-metallic material samples or products such as plastic pipes. It is a testing instrument used to evaluate the impact resistance of materials. At the same time, impact comparison tests can also be conducted on samples of the same material and specifications to identify the quality of the materials. It is applicable to both test methods, pass-through method and gradient method.

Features

  • This testing machine adopts single-chip microcomputer control technology and can preset the impact height.

  • Automatically prevent secondary impact, automatically lift the hammer to a predetermined height, and display the height at any time.

  • Good reliability and high precision.

  • It complies with the requirements of professional standards ZBN72026-90 and GB/T16800-1997 technical condition standards for drop weight impact testing machines.

FAQ
QOur lab needs a device that can automatically control the impact height. Do you have any recommendations?
A Recommended Dingsheng XJL-300C. It uses MCU control technology, can preset the impact height and automatically lift the hammer to the predetermined position, the height positioning error is only +/- 1mm. The device also has the function of automatically preventing secondary Impact, avoiding sexual repeability test interference, Reliability and easy operation, suitable for laboratory environment.
QI want to test the impact performance of plastic tubing, what instrument should I choose?
A XJL-300C drop weight Impact Tester is specially used for impact testing of non-metallic materials such as plastic pipes, which can accurately evaluate the anti-Impact performance of materials. It supports two test methods, pass method and layer method. The weight of the hammer is adjustable from 0.25 to 15kg, and the impact height is up to 2000mm. It has high accuracy and meets national standards. It is suitable for pipe mass testing.
QOur laboratory needs a device to compare the impact resistance of different pipe materials.
A XJL-300C drop hammer type Impact Tester can. It is suitable for the impact comparison test of the same material and the same specification sample, which can help you quickly identify the pros and cons of the material mass. The instrument is controlled by a single chip microcomputer, automatically lifting the hammer and preventing secondary Impact, and the height positioning error is only +/- 1mm to ensure reliable test results. It is often used in quality control and R & D verification in the plastic pipe industry.
Standard
