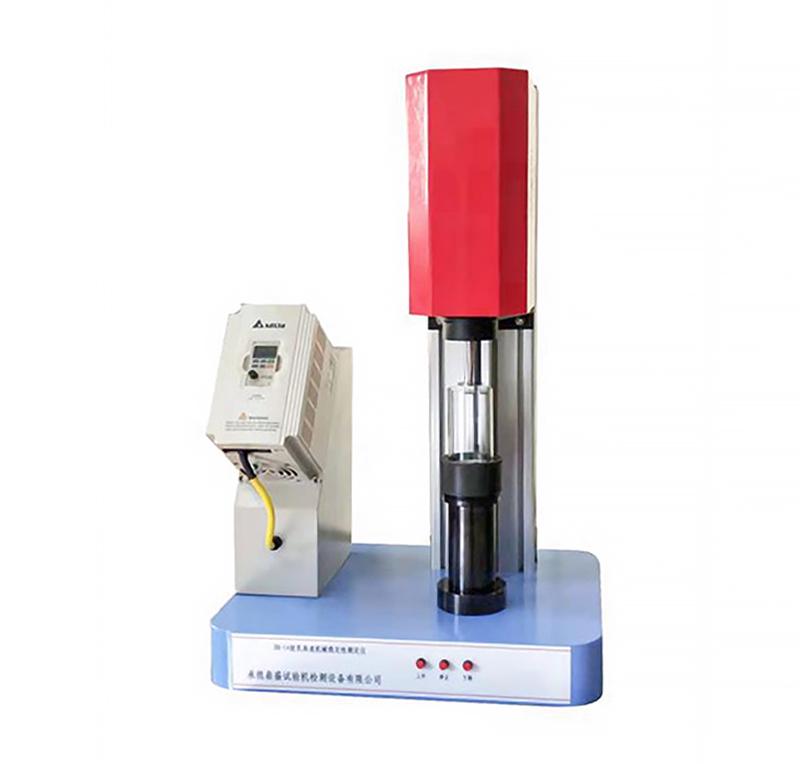

Dingsheng XR-14 latex high-speed mechanical stability Tester, high-speed mechanical stability Tester
SESupports a rotational speed range of 3000 to 20000r/min, especially suitable for handling natural and synthetic latex. Its Stir shaft does not swing more than 0.25mm at 14000r/min, ensuring high accuracy testing. Equipment is equipped with a precise latex container.
$2294.00/set
PromotionLoading...
Coupon
Model：
XR-14
Similar products
DINGSHENG XR-14 Latex high speed mechanical stability TesterSPEC
DINGSHENG XR-14 Latex high speed mechanical stability TesterDetails
DINGSHENG XR-14 Latex high speed mechanical stability TesterPacking list
- SKU
- NB045826
- Stirring disk specifications
- Natural Latex: Diameter: 20.83 +/- 0.03mm Thickness: 1.57 +/- 0.05mm; Synthetic Latex: Diameter: 36.12 +/- 0.03mm Thickness: 1.58 +/- 0.05mm
- latex container
- Height 100mm, inner diameter 58 +/- 0.25mm, wall thickness 2.5mm
- Speed range
- Can be arbitrarily set between 3000 and 20000rpm (including 14000rpm)
- Working Voltage
- 220V +/- 10%, current 5A
- operating temperature
- 10～40℃
- working medium
- Synthetic or natural latex with a pH between 1 and 14
XR-14
Latex high speed mechanical stability Tester
Supports a rotational speed range of 3000 to 20000r/min, especially suitable for handling natural and synthetic latex. Its Stir shaft does not swing more than 0.25mm at 14000r/min, ensuring high accuracy testing. Equipment is equipped with a precise latex container.
The XR-14 High Speed Mechanical Stabilizer is a high-performance agitator suitable for handling a wide range of latex materials. The mixing tray has two specifications: natural rubber latex diameter 20.83±0.03mm, thickness 1.57±0.05mm; The diameter of synthetic latex is 36.12±0.03mm, and the thickness is 1.58±0.05mm. The equipment is equipped with a latex container with a height of 100mm, an inner diameter of 58±0.25mm, a wall thickness of 2.5mm, and the bottom of the mixing tray is 13±1mm from the inner surface of the container. The speed range is adjustable, covering 3000r/min to 20000r/min, including 14000r/min, and the agitator shaft oscillates no more than 0.25mm at 14000r/min. The equipment has an operating Voltage of 220V±10%, a current of 5A, an applicable operating temperature of 10 to 40°C, and can handle synthetic or natural rubber latex with a pH value between 1 and 14. The motor design ensures continuous and stable operation under normal conditions.
FAQ
QI Need to Test the Mechanical Stability of Natural Latex, What Instrument Should I Choose?
A
Recommended Dingsheng XR-14 Latex High-Speed Mechanical Stability Tester, because it is specially designed for latex, equipped with a special stirring plate for natural latex with a diameter of 20.83mm, which can accurately simulate high-speed shearing conditions and ensure accurate and reliable test results.
QOur laboratory often handles synthetic latex with different pH values. Is there any suitable equipment?
A
Dingsheng XR-14 is suitable, its working medium pH range covers 1-14, compatible with various synthetic latex, and the Rotation speed can be adjusted to 20000rpm, which can flexibly respond to the Stability testing needs of different formulations.
QLooking for a high Rotation speed and stable latex tester, what do you recommend?
A
It is recommended to choose Dingsheng XR-14, its Speed range 3000-20000rpm, the key Rotation speed 14000rpm swing does not exceed 0.25mm, motor design to ensure continuous stable operation, suitable for long-term high-precision testing.
QOur laboratory mainly tests the mechanical Stability of natural latex. What type of instrument should be selected?
A
Recommend Dingsheng XR-14 Latex High Speed Mechanical Stability Tester. Because its mixing plate is specially designed for natural latex, with a diameter of 20.83mm and a thickness of 1.57mm, it can accurately simulate the actual shear conditions and ensure reliable test results.
QIs this instrument suitable for use in the latex production line of a chemical plant?
A
Suitable. XR-14 Operating temperature range 10-40 ℃, can adapt to the workshop environment; Rotation speed 3000-20000rpm adjustable, covering common process requirements; and the motor design is stable, can run continuously for a long time, to meet the production line inspection requirements.
QWe need to test synthetic latex with different pH values, can this instrument handle it?
A
Yes. XR-14 is specially designed for synthetic and natural latex with pH value 1-14. It is equipped with a special stirring plate for synthetic latex (diameter 36.12mm). Rotation speed can be precisely controlled, and it can accurately evaluate the mechanical Stability under various acid-base conditions.
QSynthetic latex has a wide range of pH values. Is there any suitable testing equipment?
A
XR-14 supports synthetic latex testing with pH value 1-14, equipped with synthetic latex stirring plate with diameter of 36.12mm, Speed range 3000-20000r/min, can adapt to different acid and base environments, help you comprehensively evaluate the mechanical Stability of latex under extreme conditions.
QWe need a latex tester with adjustable and stable Rotation speed.
A
It is recommended to choose XR-14. Its Rotation speed can be arbitrarily set between 3000-20000r/min, including the industry standard 14000r/min, and the stirring shaft swing does not exceed 0.25mm at this Rotation speed to ensure the stability of the test process. Repeatability is good, suitable for various latex research and development and quality control scenarios.
QI want to measure the Mechanical Stability of Natural Latex, which instrument should I choose?
A
Dingsheng XR-14 Latex High-Speed Mechanical Stability Tester is recommended because it is specially designed for natural latex with a 20.83mm diameter stirring plate, which can accurately simulate high-speed shearing conditions and ensure reliable test results.
QThe laboratory needs to process high pH value synthetic latex, what equipment is suitable?
A
It is recommended to use XR-14 tester, which can withstand the medium with pH value 1-14, Rotation speed up to 20000r/min, and can flexibly adjust the parameters to evaluate the Stability of latex in different acid and alkali environments.
