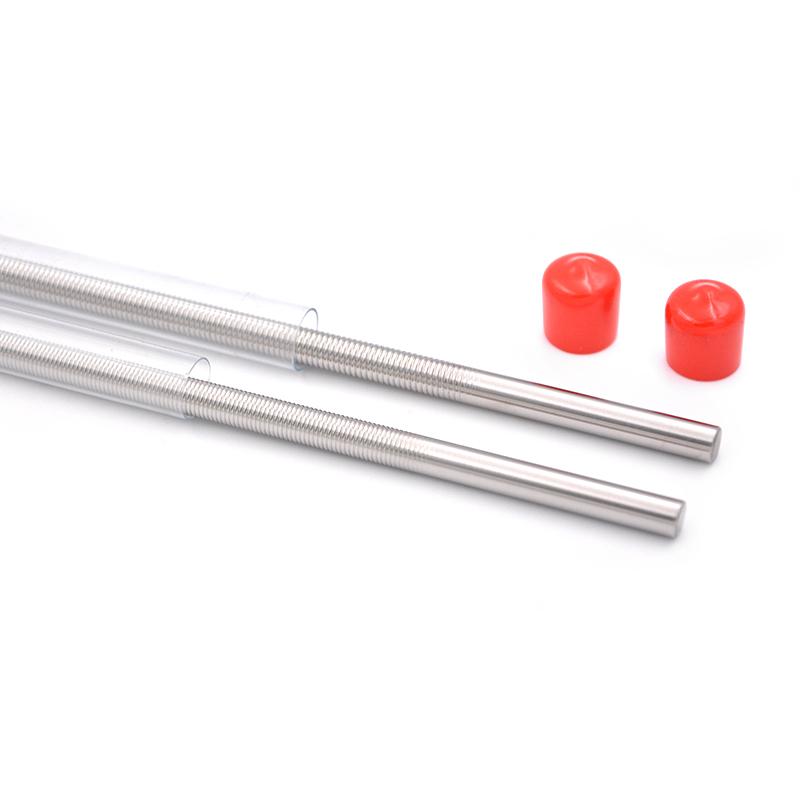

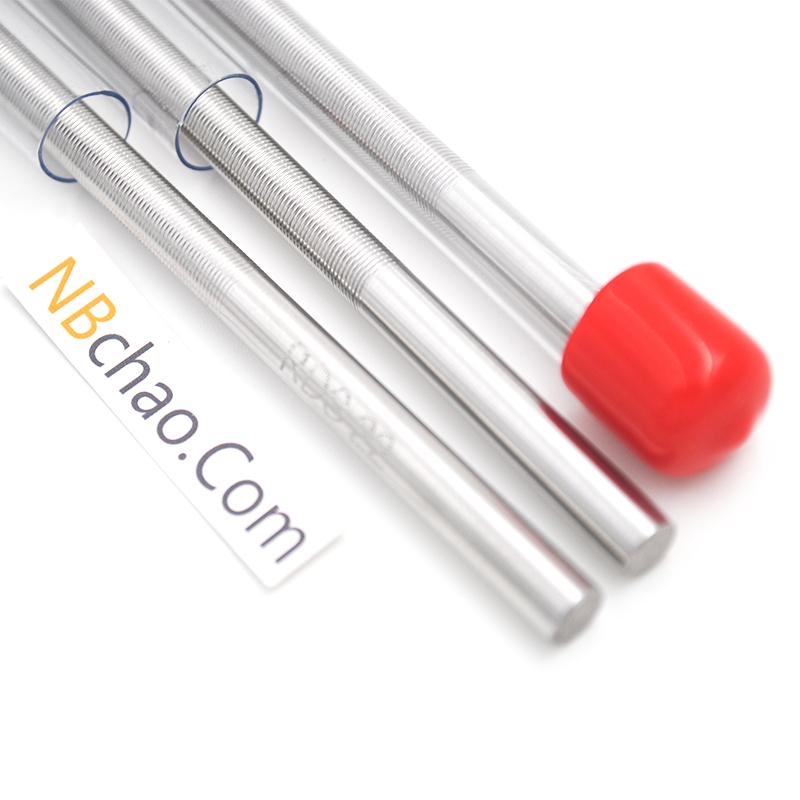

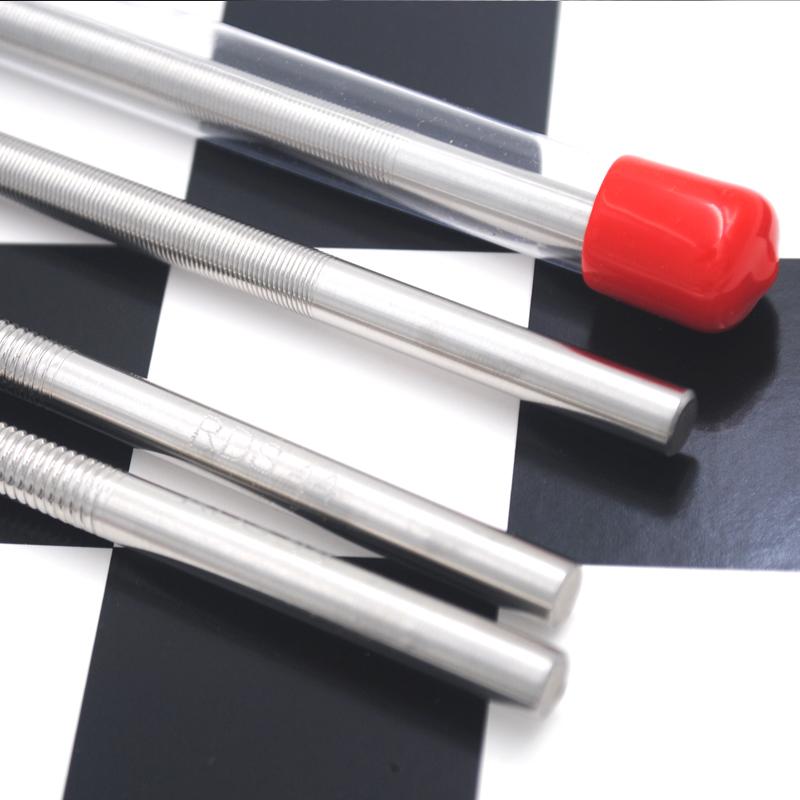

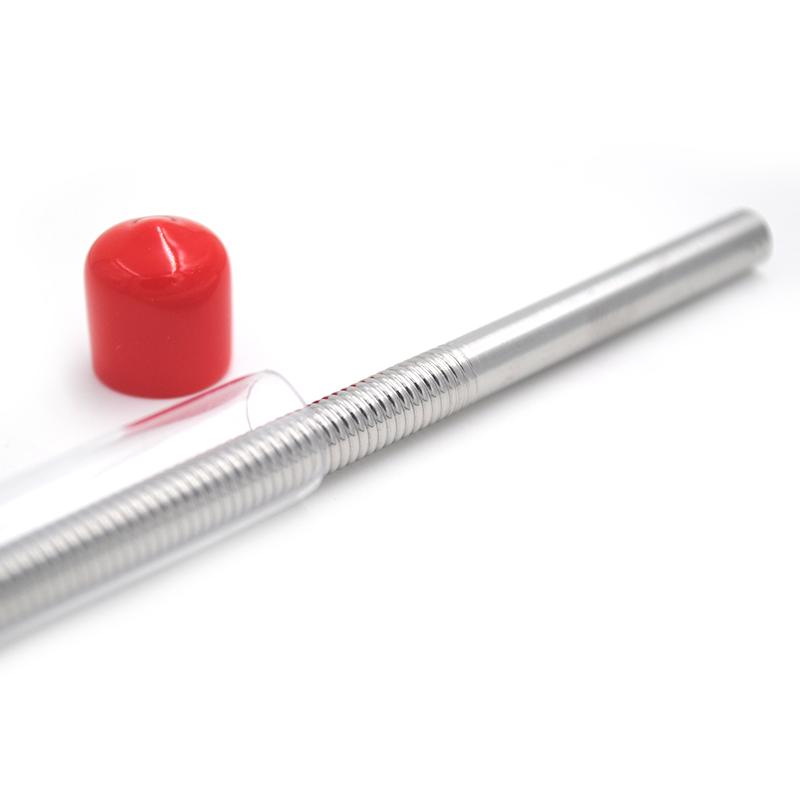

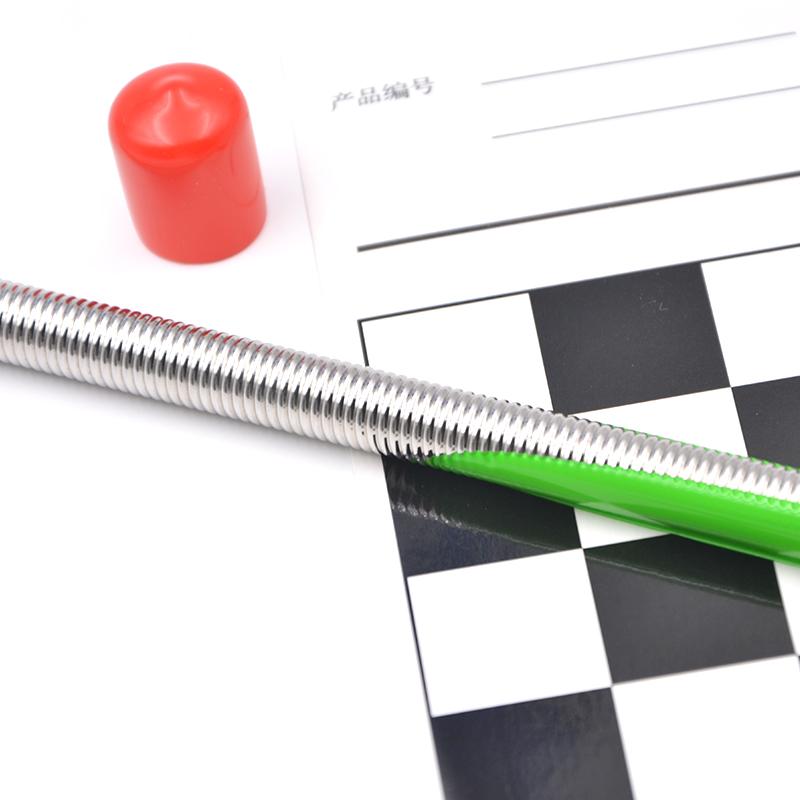

RDS 48 #1/4 "formed coating rod film thickness 109.7μm rod diameter 6.35mm
SEImported from the United States, using formed molding technology, the rod diameter is 6.35mm, and the film can be 109.7μm. It has the characteristics of continuous wire and easy cleaning.
$155.00/piece
PromotionLoading...
Coupon
Model：
48# 1/4“
Similar products
RDS 48# 1/4“ Applicator rod 1/4 "SPEC
RDS 48# 1/4“ Applicator rod 1/4 "Details
RDS 48# 1/4“ Applicator rod 1/4 "Packing list

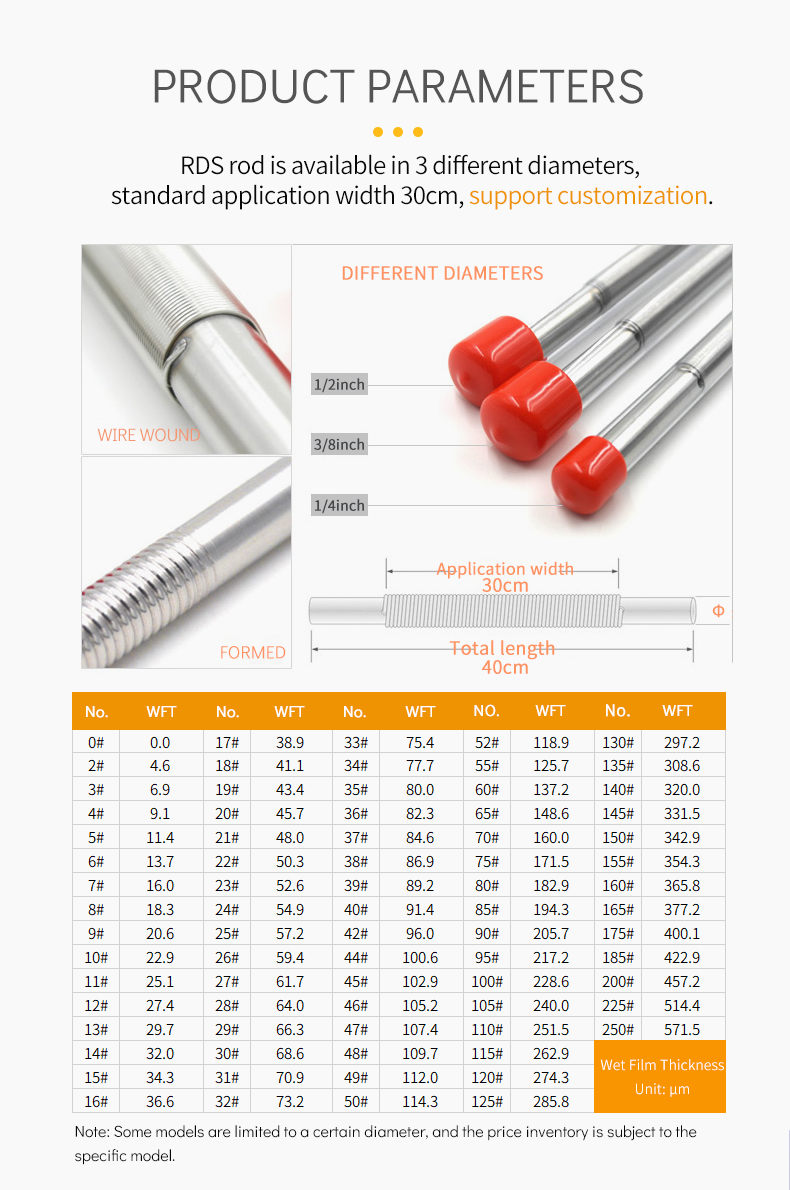

- SKU
- NB004585
- Production process
- formed
- WFT
- 109.7μm
- diameter
- 6.35mm
- Total length
- 400mm
- application width
- 300mm
- Grip Width
- 50+50mm
- material
- stainless steel
48# 1/4“
Applicator rod 1/4 "
Imported from the United States, using formed molding technology, the rod diameter is 6.35mm, and the film can be 109.7μm. It has the characteristics of continuous wire and easy cleaning.
Product description

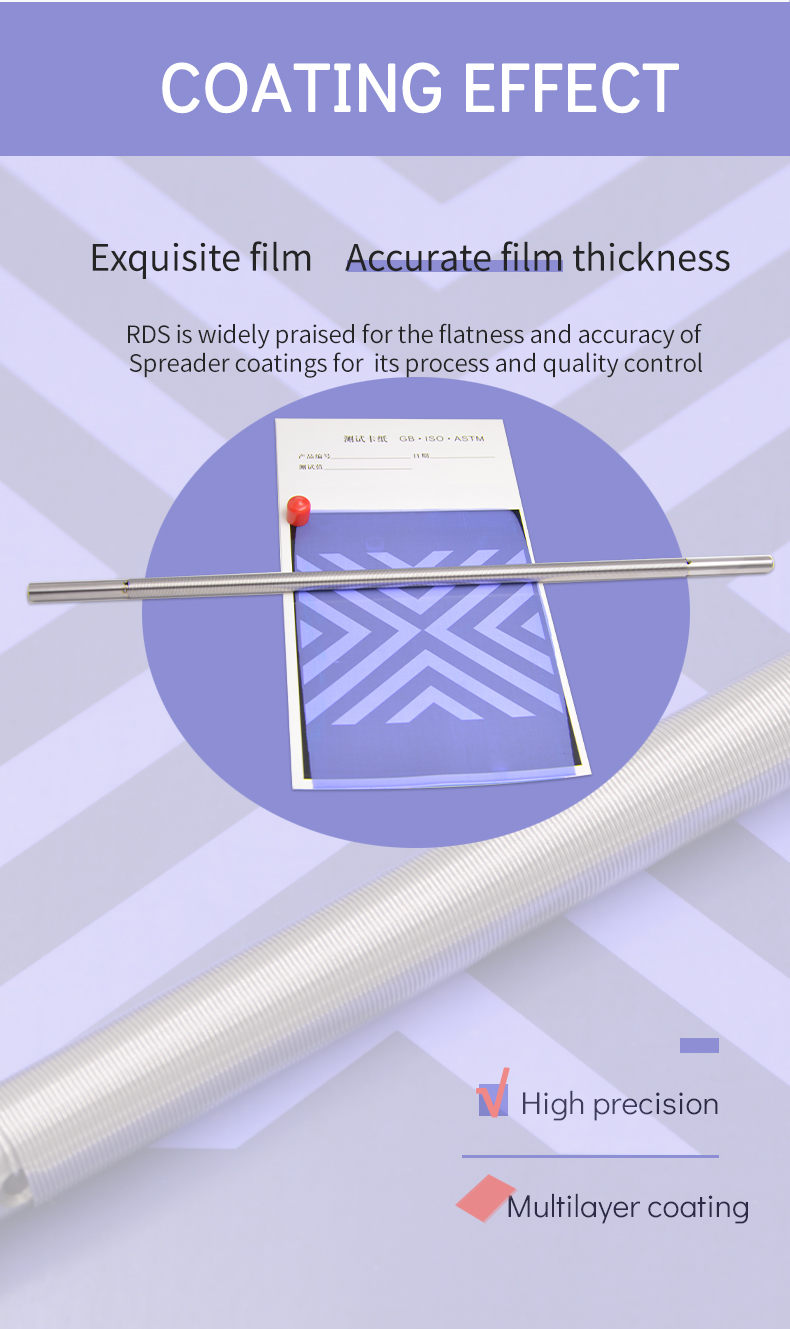

RDS#48 wire rod coater provides a simple coating method based on the principle of Meyer rod coating rod, which is suitable for preparing samples of paper, cardboard, glass board, wood board, etc., in coating, ink, plastic, glue, etc. Adhesives and other industries are widely used. The RDS wire rod coater is imported from the United States with original packaging. The quality of the coating rod has always been well-known among similar products. Its 80-year-old brand image has long been deeply rooted in the hearts of the people. The RDS wire Bar Coater can coat different wet film thicknesses, and the coating thickness of the RDS #48 wire Bar Coater is 109.7 microns.
FAQ
QDo you want this manually or can it be installed on the Spreader? What is the minimum thickness for viscosity requirements?
A

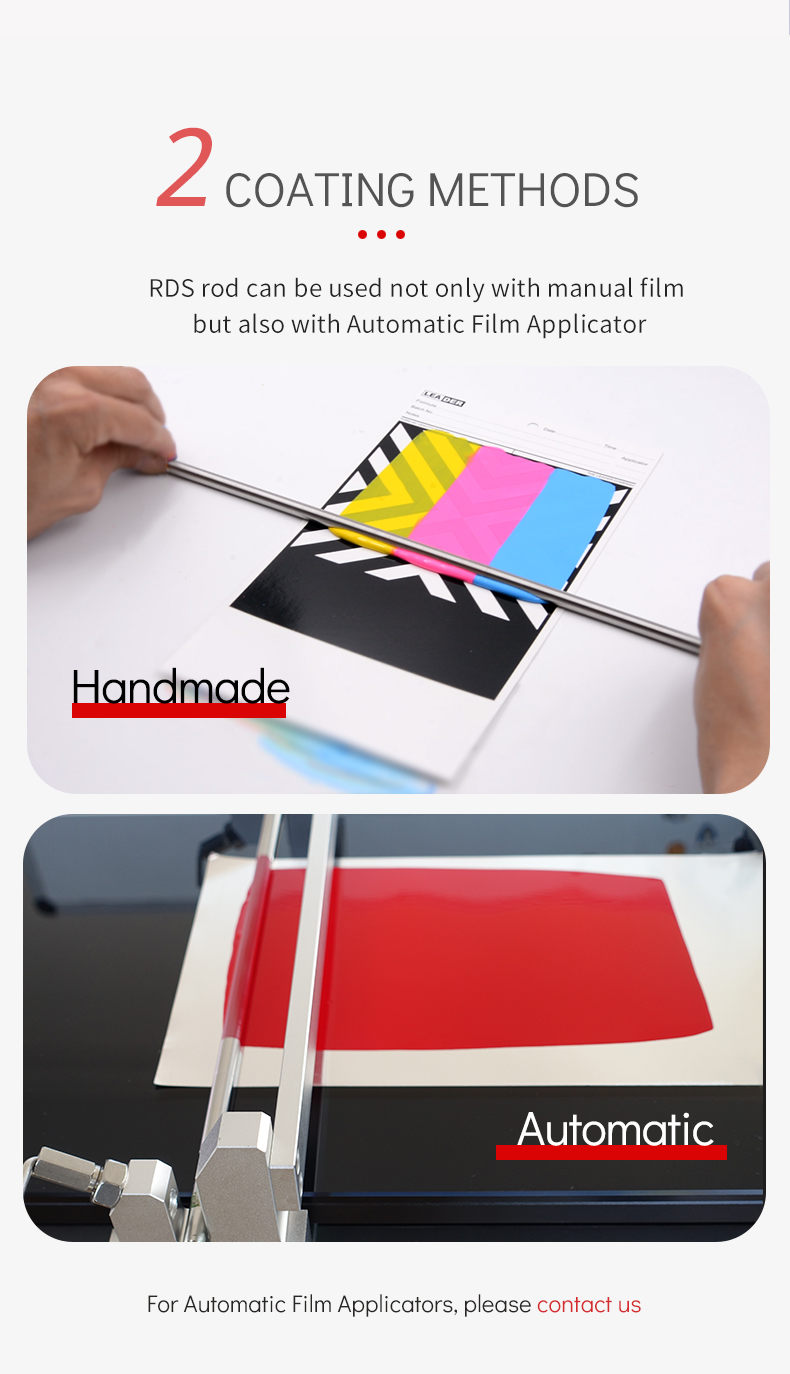

Hand scraping can also be used with Film Applicator (make sure that the groove diameter of the film applicator card rod is ≥ 10mm, and the application length may be paid attention to). Whether the wire rod is large or small, the viscosity recommended in our actual test is less than 1000cp, and it can be scraped with the wire rod.
QDo you support customization? Such as wet film thickness and length?
A
Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
QFind an extruded wire rod for JB/T7663.2
A
This 48 #1/4 "extrusion rod is it.
