Brand：YiNuo
Model：YN-DLD100S

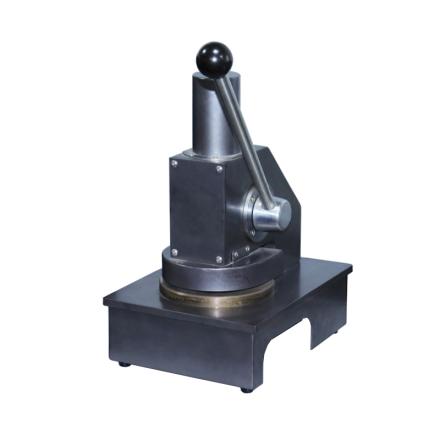

Name：Quantitative Sampler (Copper Foil Aluminum Foil Type)
Specifications
| Sampling area | 100cm2 |
| Sampling area error | ±0.15 cm2 |
| Accuracy | ±0.02mm |
| Sampling thickness | 0.01~ 1.5Mm (for copper foil, aluminum foil, paper, Cardboard, etc.) |
| Upper knife cutting point positioning | 4 anchor points |
| Vertical and parallel positioning | Vertical 25mm one-time forming two-point positioning |
| Upper and lower knife material | ØSKD11 |
| Hardness of Upper/Lower knives | 58~62HCR |
| Production process | Special mold steel, quenching knives, exquisite painting process |
| Lateral parallel dimension | R=41.5mm*2 |
| parallel positioning height | 50mm |
| Sampling Torque | (25/2mm)/312.5mm |
| exterior size | 220*405*435mm |
| Weight | 25kg |
| Operating Environment | Temperature (20 +/- 10) ℃, Humidity < 85% |
Packing list
Quantitative Sampler x1, Manual x1, Warranty Card x1, Certificate of Conformity x1
