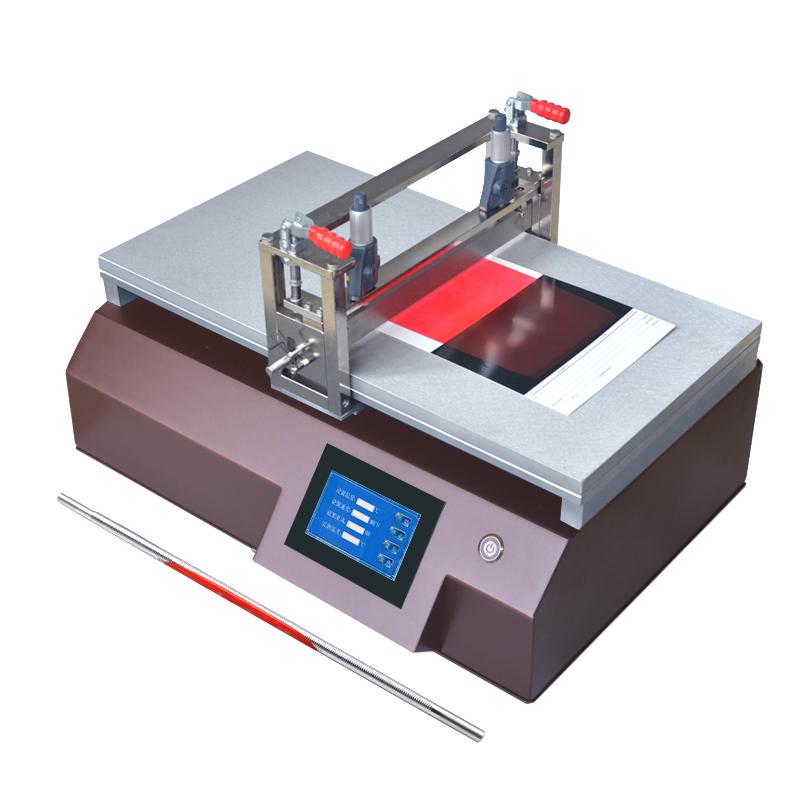

China drawdown Bar & blade heating Vacuum chuck Scraping Machine TBJ-X3-DJ21 Drawdown blade material 316 stainless steel
SE
TBJ-X3-DJ21
-
China Drawdown blade bar Heating Vacuum chuck Film Applicator TBJ-X3-DJ11$ 4423.00SE -
TM3300 Wire bar & Drawdown Blade Laboratory Film Applicator with Heated Vacuum Table$ 4734.00SE -
HUINUO TM3300pro High-precision Automatic Film Applicator with Drawdown Blade and Rod Applicator, Plus Heated Vacuum Table$ 5667.00SE -
HUINUO TM3300pro+ High-precision Rod & Drawdown Blade coater with Heated Vacuum Table$ 6133.00SE -
CHINA Removable metering rod & drawdown blade heating vacuum adsorption laboratory Film Applicator TBJ-X3-DJ11C$ 4423.00SE
zy TBJ-X3-DJ21 Automatic Film ApplicatorSPEC
zy TBJ-X3-DJ21 Automatic Film ApplicatorDetails
zy TBJ-X3-DJ21 Automatic Film ApplicatorPacking list
- SKU
- NB045857
- Drawdown blade Accuracy
- ±0.003mm
- Spreader thickness range
- 0~10Mm drawdown blade can be lifted
- Coating speed
- 5~ 180Mm/s (< 5mm/s can be customized)
- Coating size
- 300*400mm
- Drawdown blade material
- 316 stainless steel
- Vacuum Area
- 300 * 400Mm (can be customized)
- Vacuum aperture
- Φ1.2mm
- Vacuum hole spacing
- 20*20mm
- Coating rod specification
- 1 China wire rod + 1 imported wire rod with Accuracy up to 1μm, the effective application width is 300mm (Spreader thickness is determined according to the wire rod model)
- Host Power Supply
- 220V 50Hz
- Dimensions
- 630*410*520mm
- Weight
- Net Weight 65KG
- speed control
- Infinitely variable speed
- Coating table material
- aluminum alloy
- Heating Temperature range
- RT+~180℃
- Temperature Uniformity
- ±3℃
- Power
- 1500W
- Vacuum pump size
- 380*180*280mm
- Optional
- Leakage tank, substrate fixing fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle
- Customizable function
- Jet system device, UV solid-containing device, automatic inking system
product description
The TBJ-X experimental small coating testing machine all uses imported accessories and is very affordable. It has been favored by many multinational R&D institutions, as well as many well-known universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure, the coating and gluing effect is ensured, and the uniformity and stability of the coating and gluing are ensured.
Since the main factors that affect the coating film are the coating speed and the pressure exerted on the Film Applicator, the coatings applied manually are often inconsistent, especially the differences between different people are even greater. This makes it difficult to compare test results between samples. Our company's automatic Film Applicator is carefully designed to allow operators to easily apply precise wet films on different substrates, greatly improving the reproducibility of coating films.
This automatic coating machine comes standard with 1 domestic (CN) wire rod and 1 imported wire rod with an accuracy of up to 1μm .
