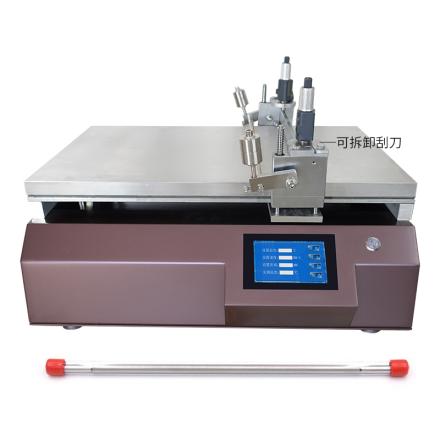

Specifications
| Drawdown blade Accuracy | ±0.003mm |
| Spreader thickness range | 0~10Mm drawdown blade can be lifted |
| Coating speed | 5~ 180Mm/s (< 5mm/s can be customized) |
| Coating size | 300*400mm |
| Drawdown blade material | 316 stainless steel material |
| Vacuum Area | 300 * 400Mm (can be customized) |
| Vacuum aperture | Φ1.2mm |
| Vacuum hole spacing | 20*20mm |
| Coating rod specification | 1 China wire rod + 1 imported wire rod with Accuracy up to 1μm, the effective application width is 300mm (Spreader thickness is determined according to the wire rod model) |
| Host Power Supply | 220V 50Hz |
| Dimensions | 630*410*520mm |
| Weight | Net Weight 65KG |
| speed control | Infinitely variable speed |
| Coating table material | aluminum alloy |
| Heating Temperature range | RT+~180℃ |
| Temperature Uniformity | ±3℃ |
| Power | 1500W |
| Vacuum pump size | 380*180*280mm |
| Optional | Leakage tank, substrate fixing fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle |
| Customizable function | Jet system device, UV solid-containing device, automatic inking system |
| Drawdown blade type | Removable drawdown blade, easy to clean and replace |
Packing list
Film Applicator X1, External Vacuum Pump X1, Removable Drawdown blade 316 stainless steel material X1, imported bar X1, China bar X1, adjustable width baffle x1, product manual X1
After-sales instructions
Warranty days: 365 days
