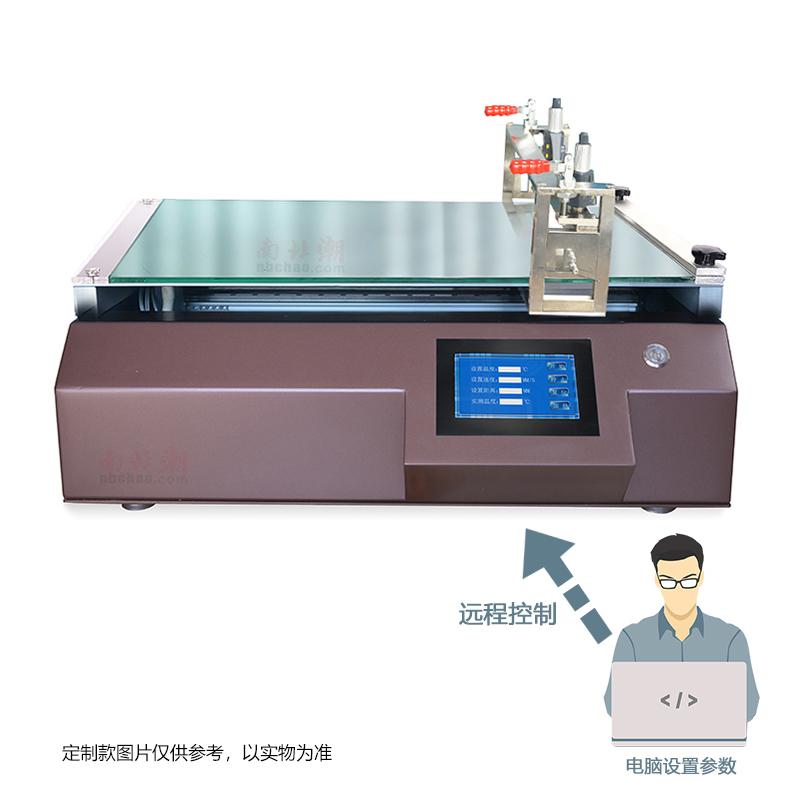

China Intelligent program-controlled drawdown Bar & blade Film Applicator TBJ-B2-DJ7 Coating size 300 * 450mm

SE
Bar, Drawdown blade integrated; Support computer remote setting film speed, application length, film temperature, standard 1 high-precision imported bar; silent vibration-free motor; Coating size 300 * 450mm.
$5045.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con VIDEO CAT OI
Similar products

zy TBJ-B2-DJ7 Automatic Film ApplicatorSPEC

zy TBJ-B2-DJ7 Automatic Film ApplicatorDetails

zy TBJ-B2-DJ7 Automatic Film ApplicatorPacking list

SKU
NB045860
Drawdown blade Accuracy
±0.003mm
Spreader thickness range
0~10Mm drawdown blade can be lifted
Coating speed
5~ 180Mm/s (< 5mm/s can be customized)
Coating size
300*450mm
Spreader speed
Digital display, different speeds
Wire rod film thickness
Determine Spreader thickness according to rod model
Host Power Supply
220V 50Hz
Weight
Net Weight 65KG
speed control
Infinitely variable speed
Coating table material
Glasses
Intelligent program control
Support computer remote setting film speed, application length, film temperature
Optional
Leakage tank, substrate fixing fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle
Customizable function
Jet system device, UV solid-containing device, automatic inking system
Wire rod application width
300mm
Wire bar Accuracy
±0.001mm
Communication interface
USB
TBJ-B2-DJ7
Automatic Film Applicator
Bar, Drawdown blade integrated; Support computer remote setting film speed, application length, film temperature, standard 1 high-precision imported bar; silent vibration-free motor; Coating size 300 * 450mm.
China Intelligent program-controlled drawdown Bar & blade Film Applicator TBJ-B2-DJ7 Coating size 300 * 450mm Picture

product description

The TBJ-X experimental small coating testing machine all uses imported accessories and is very affordable. It has been favored by many multinational R&D institutions, as well as many well-known universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure, the coating and gluing effect is ensured, and the uniformity and stability of the coating and gluing are ensured.

TBJ-B2-DJ7 intelligent program-controlled wire rod doctor blade coating machine adopts two coating methods: wire rod + scraper. It supports computer remote setting of coating speed, coating length and coating temperature. It has a glass base plate and a clamp to fix the substrate. , coating format 300*450mm.


CHINA Intelligent program-controlled metering rod & drawdown blade Film Applicator TBJ-B2-DJ7 Coating size 300 * 450mm Figure 1

CHINA Intelligent program-controlled metering rod & drawdown blade Film Applicator TBJ-B2-DJ7 Coating size 300 * 450mm Figure 2

CHINA Intelligent program-controlled metering rod & drawdown blade Film Applicator TBJ-B2-DJ7 Coating size 300 * 450mm Figure 3

CHINA Intelligent program-controlled metering rod & drawdown blade Film Applicator TBJ-B2-DJ7 Coating size 300 * 450mm Figure 4

CHINA Intelligent program-controlled metering rod & drawdown blade Film Applicator TBJ-B2-DJ7 Coating size 300 * 450mm Figure 5

CHINA Intelligent program-controlled metering rod & drawdown blade Film Applicator TBJ-B2-DJ7 Coating size 300 * 450mm Figure 6

CHINA Intelligent program-controlled metering rod & drawdown blade Film Applicator TBJ-B2-DJ7 Coating size 300 * 450mm Figure 7

CHINA Intelligent program-controlled metering rod & drawdown blade Film Applicator TBJ-B2-DJ7 Coating size 300 * 450mm Figure 8

CHINA Intelligent program-controlled metering rod & drawdown blade Film Applicator TBJ-B2-DJ7 Coating size 300 * 450mm Figure 9


Optional

CHINA Intelligent program-controlled metering rod & drawdown blade Film Applicator TBJ-B2-DJ7 Coating size 300 * 450mm Figure 10

CHINA Intelligent program-controlled metering rod & drawdown blade Film Applicator TBJ-B2-DJ7 Coating size 300 * 450mm Figure 11

CHINA Intelligent program-controlled metering rod & drawdown blade Film Applicator TBJ-B2-DJ7 Coating size 300 * 450mm Figure 12

FAQ
QSpreader accuracy and thickness range?
A The Film Applicator doctor blade Spreader accuracy of +/- 0.003mm, Spreader thickness range of 0~ 10mm, to ensure the accuracy and controllability of Spreader effect.
QDoes this Film Applicator support specific customization requirements?
A Yes, we can provide customized functions according to your specific needs, such as jet system devices, UV solid inclusion devices, automatic inking systems, etc.
Q What type of Communication interface is it?
A Communication interface is USB for easy connection and data transfer with Miscellaneous equipment. If you have Miscellaneous type communication needs, we can also provide corresponding solutions.
