QIWEI JFS-1100E High Speed Variable Frequency Disperser Automatic Lifting

SE
Variable frequency motor without carbon brush, vertical variable frequency control instrument, automatic lifting (optional manual lifting), digital display stepless speed regulation, maximum Rotation speed 8000 rpm; Power 1100W.
$685.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con

QiWei JFS-1100E High Speed Variable Frequency DisperserSPEC

QiWei JFS-1100E High Speed Variable Frequency DisperserDetails

QiWei JFS-1100E High Speed Variable Frequency DisperserPacking list

SKU
NB045867
Motor Power
1100W
Stirring dispersion impeller diameter
φ50mm；φ60mm；φ80mm
Lifting stroke
200mm
Power
220V 50HZ
Dimensions
400×450×800mm
Sand disc diameter
φ60mm
JFS-1100E
High Speed Variable Frequency Disperser
Variable frequency motor without carbon brush, vertical variable frequency control instrument, automatic lifting (optional manual lifting), digital display stepless speed regulation, maximum Rotation speed 8000 rpm; Power 1100W.

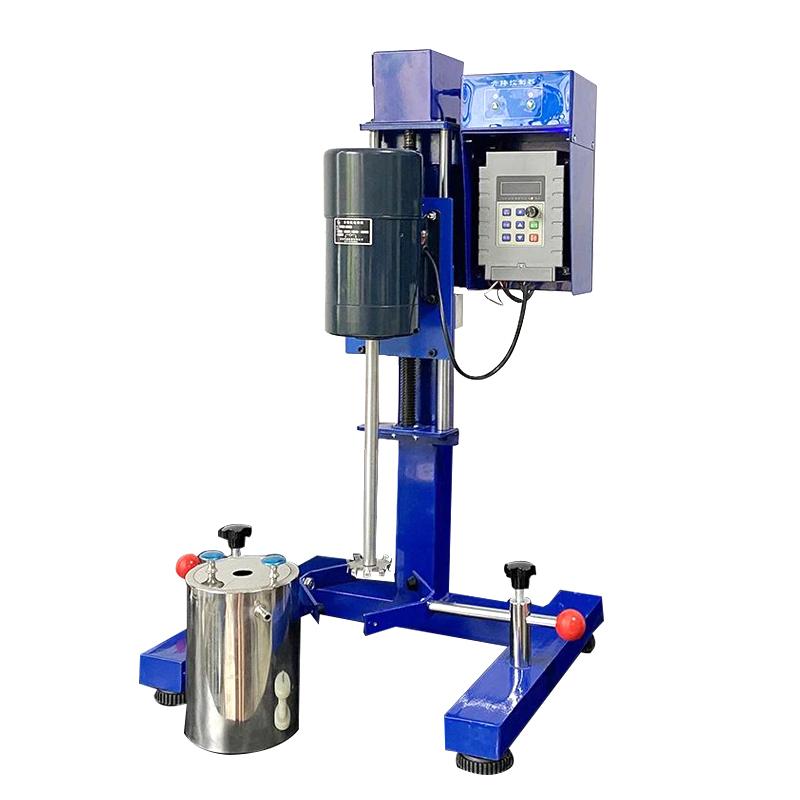

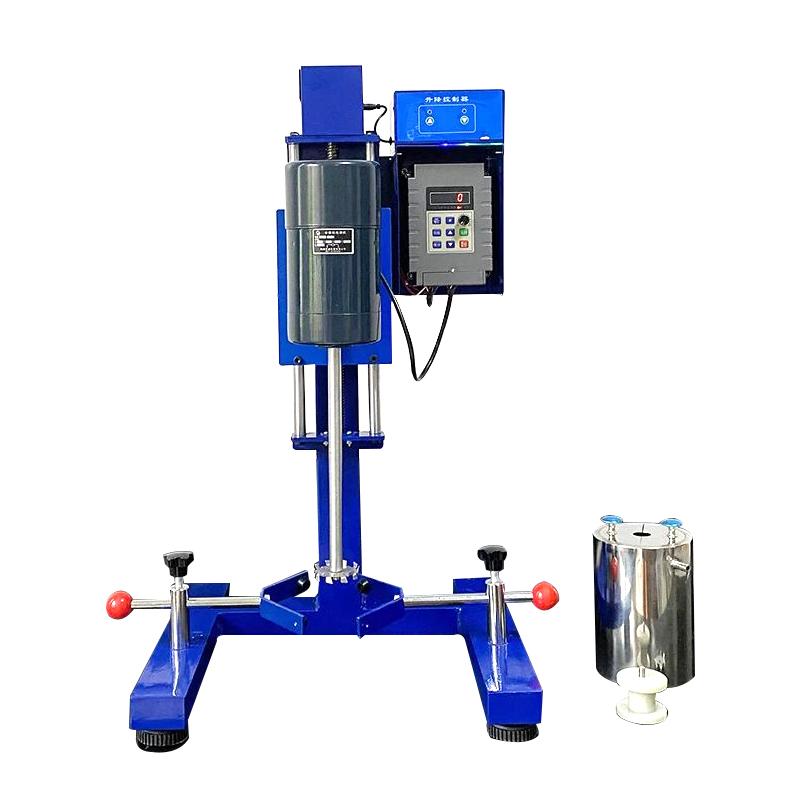

QIWEI JFS-1100E High Speed Variable Frequency Disperser Automatic Lifting Picture

I. Overview

JFS-1100E test multi-purpose disperser is a new environmentally friendly laboratory product designed and developed by our factory using new technologies at home and abroad. This product integrates the functions of stirring, sanding and dispersing, and is the first choice for laboratory personnel Laboratory equipment.

This equipment uses a variable frequency motor, which has the advantages of small size, low noise, no commutation interference, and no mechanical wear of carbon brushes. The numbers directly display the rotation speed of the rotating shaft, and is equipped with a dispersing impeller and a sanding blisk. It can adapt to different test needs in the laboratory, and can directly calculate the relationship between the linear speed of the mixing, dispersing, and sanding blades and the material viscosity and chemical reaction rate based on the displayed shaft speed, providing correct data for large-scale production.

3. Structure

1. This machine adopts a square tube chain lifting system, which is convenient for lifting and lowering.

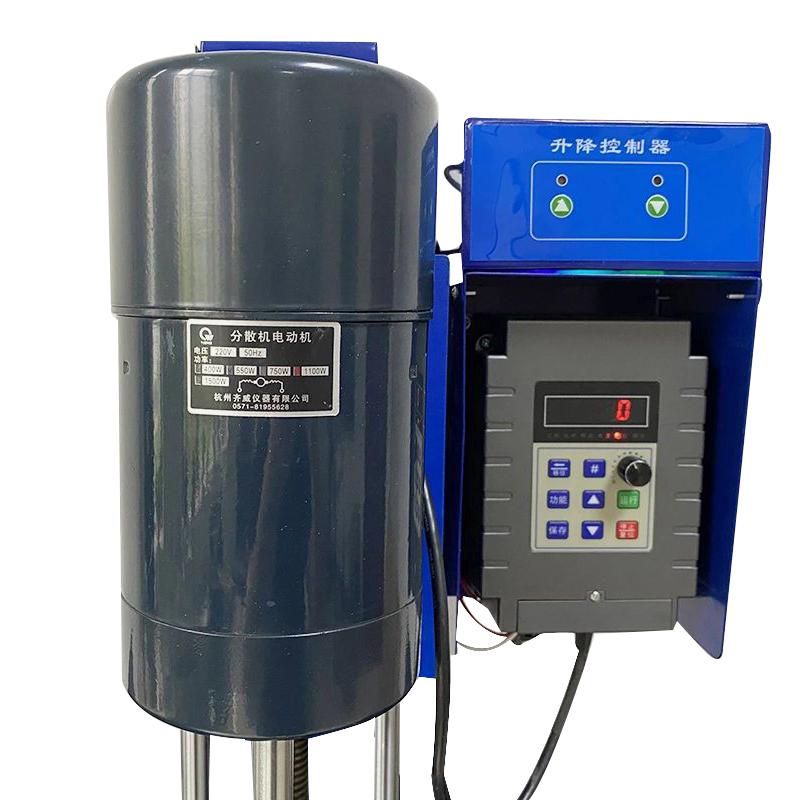

2. Adopt a new type of variable frequency motor and implement stepless speed regulation of the motor through an intelligent variable frequency controller. Applying digital PID technology, the control accuracy is high, and the 4-digit digital tube directly displays the spindle speed.

3. The dispersing impeller and sanding blisk are directly connected to the rotating shaft with screws.

4. The barrel is fixed by the left and right clamps. The barrel adopts a jacket structure and can be processed by stainless steel materials through cooling water.


FAQ
QLaboratory to do paint dispersion experiments, need to be able to adjust the speed and display Rotation speed equipment, have recommendations?
A QIWEI JFS-1100E high-speed variable frequency Disperser is recommended. It adopts variable frequency motor, Rotation speed 60~ 8000rpm stepless adjustable, 4-digit digital tube directly displays Rotation speed, which is convenient for you to accurately control the dispersion process, record the relationship between Rotation speed and material viscosity, and provide data support for paint formulation optimization.
QOur laboratory often needs to do mixing and grinding at the same time. Is there any multi-functional equipment?
A JFS-1100E integrates stirring, sanding, and dispersing functions. It comes standard with dispersed impeller and sanding blades. It can be quickly replaced by screws and is multi-purpose. It is suitable for scenarios that require a variety of process verification in the laboratory, which can effectively save equipment costs and space.
QI want to do Coating experiment, need high speed dispersion and sand grinding function, do you have any recommendation?
A QIWEI JFS-1100E high-speed frequency conversion Disperser is recommended. It integrates dispersion and sanding functions, and can achieve stepless speed regulation of 60-8000rpm with frequency conversion motor. It can precisely control the line speed of dispersion and sanding, and is suitable for material handling of different viscosity in Coating research and development.
QWhat equipment is suitable for nanomaterials grinding in the laboratory?
A JFS-1100E is very suitable, it is equipped with φ 60mm sand grinding disc, Rotation speed up to 8000rpm, can achieve efficient nano-scale grinding. And the barrel has a chill down jacket, which can control the ground temperature and avoid the material due to high temperature denaturation.
QYou need a multi-functional experimental equipment that can both stir and disperse. How to choose?
A QIWEI JFS-1100E is recommended, which integrates three functions of stirring, dispersion and sand grinding, and is also equipped with impellers of different sizes. It adopts chain lifting and digital display Rotation speed, which is easy to operate and can provide accurate data support for your subsequent enlargement production.
QOur laboratory needs a device that can perform mixing, dispersing and sanding at the same time. Do you have any recommendations?
A QIWEI JFS-1100E high-speed variable frequency Disperser is recommended. It integrates three functions of stirring, sanding and dispersion. It can quickly switch uses by changing the impeller and sanding disc, and is suitable for multi-task needs in the laboratory. The variable frequency motor provides 60-8000rpm stepless speed regulation, which can accurately simulate different process conditions and provide reliable support for your experimental data.
QWhen doing Coating R & D, how to choose the right decentralized equipment?
A JFS-1100E is recommended, its sanding disc can effectively grind pigment particles, disperse the impeller to ensure uniform mixing. The equipment has a chill down jacket to control the material temperature to avoid overheating, and the digital Rotation speed display allows you to accurately record the process parameters, which is essential for the development of Coating formulations.
QNeed to handle high viscosity materials, what function of Disperser should I choose?
A It is recommended to choose JFS-1100E, which is equipped with different diameter dispersed impeller (maximum φ 80mm), which can handle high viscosity materials. The variable frequency motor provides stable torque, the lifting mechanism is convenient to adjust the working height, and the direct connection design ensures transmission efficiency and makes high viscosity material handling easier.
QYou need multi-functional experimental equipment, which one can be stirred and dispersed?
A Select JFS-1100E, which integrates three functions of stirring, dispersing, and sand grinding. It is equipped with φ 50-80mm dispersing impeller. The square tube chain is easy to lift and lower, and one machine is multi-purpose to save laboratory space. It is especially suitable for process verification in the research and development stage.
