HUINUO intelligent TM3000A metering rod & drawdown blade Automatic Film Applicator Aluminum alloy baseplate
SE Boutique
TM3000A
-
HUINUO TM3000 Automatic Film Applicator Mini with Wire rod and Adjustable drawdown blade$ 2403.00SE -
China Drawdown blade bar Experimental Film Applicator TBJ-B2-DJ3 Automatic Film Applicator$ 2480.00SE -
Domestic TBJ-B2-DJ17 wire rod scraper type coating machine, small film scraping machine, coating format 900 * 1300mm$ 7533.00SE -
China drawdown Bar & blade Experimental Film Applicator TBJ-B2-XB Perovskite Film high-precision Spreader$ 2403.00SE -
China Intelligent program-controlled drawdown Bar & blade Film Applicator TBJ-B2-DJ7 Coating size 300 * 450mm$ 5045.00SE
HuiNuo TM3000A Automatic Film ApplicatorSPEC
HuiNuo TM3000A Automatic Film ApplicatorDetails
HuiNuo TM3000A Automatic Film ApplicatorPacking list
- SKU
- NB045872
- Coating method
- Bar + drawdown blade

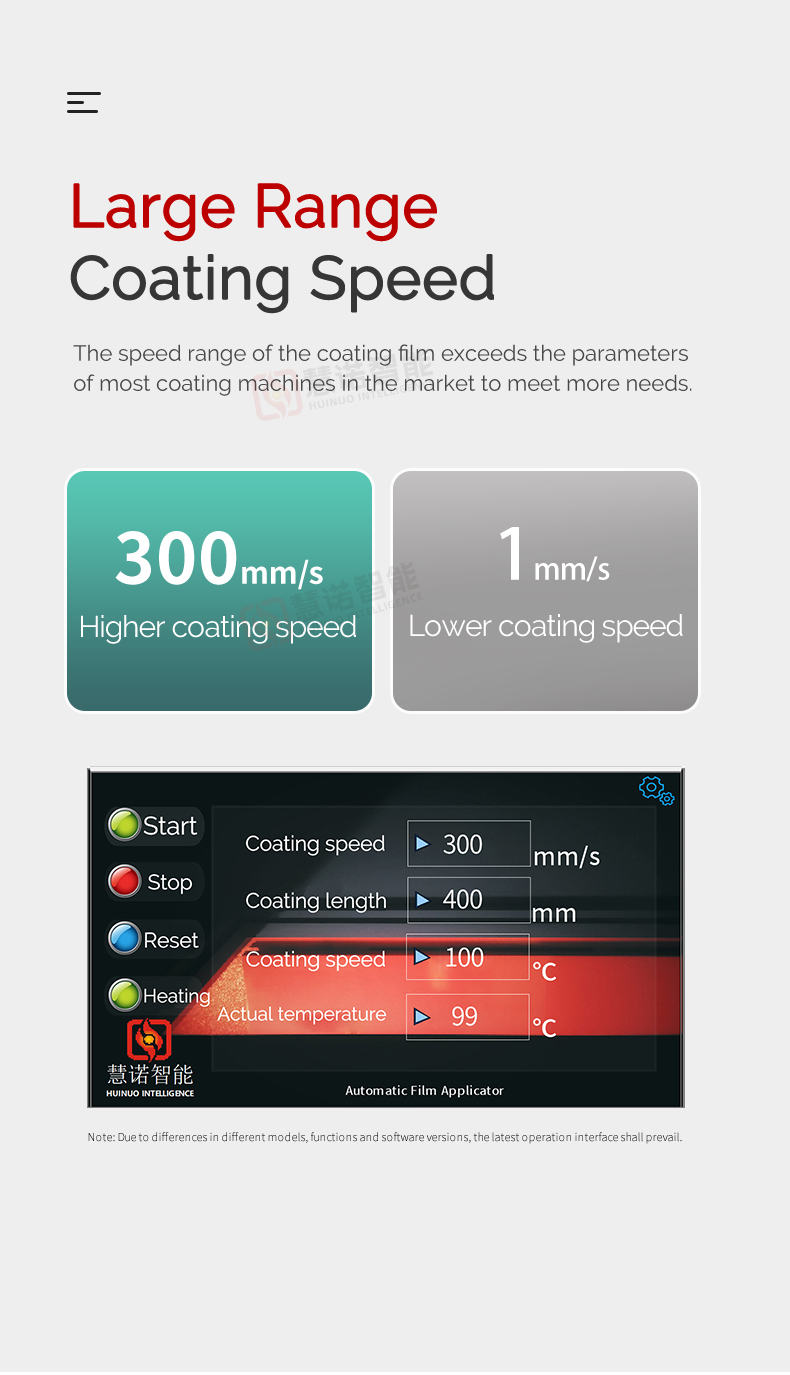

- Coating speed
- 1~ 300Mm/s stepless speed regulation (can be customized)

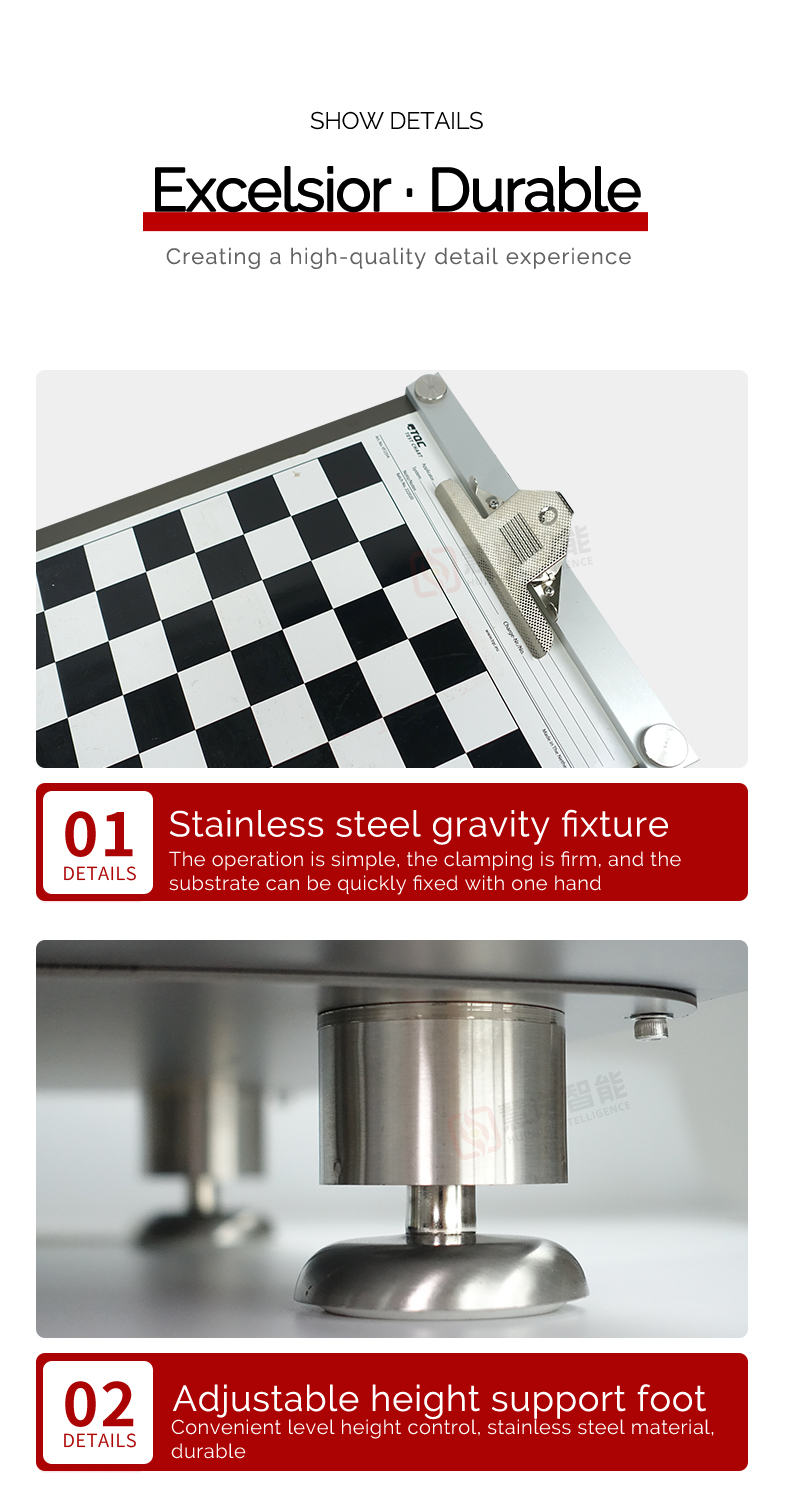

- Substrate clamping method
- fixture
- Coating table material
- aluminum alloy
- Coating table size
- 600*300mm
- Effective coating Area
- 400 * 300Mm (can be customized)
- Mayer Rod Thickness Range
- Different bar numbers have different thicknesses, with high-precision imported bars
- Mayer Rod Accuracy
- ±0.001mm
- Drawdown blade thickness range
- 0.1~ 10Mm (clamshell design is easy to clean)
- Drawdown blade material
- Die steel
- Drawdown blade application width
- 300mm
- Drawdown blade Accuracy
- ±0.003mm
- Power
- 600w
- Operating language
- Chinese (can be customized in English)
- Display
- Color LCD touch screen
- Host Power Supply
- 100V~220V/50~60HZ
- Dimension
- 658*438*400mm
product description
The automatic film coating machine is a device used for coating films in the laboratory. It replaces manual coating and automatically applies film to improve the accuracy and efficiency of coating. The working principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate to form the required film by controlling the coating head and coating parameters.

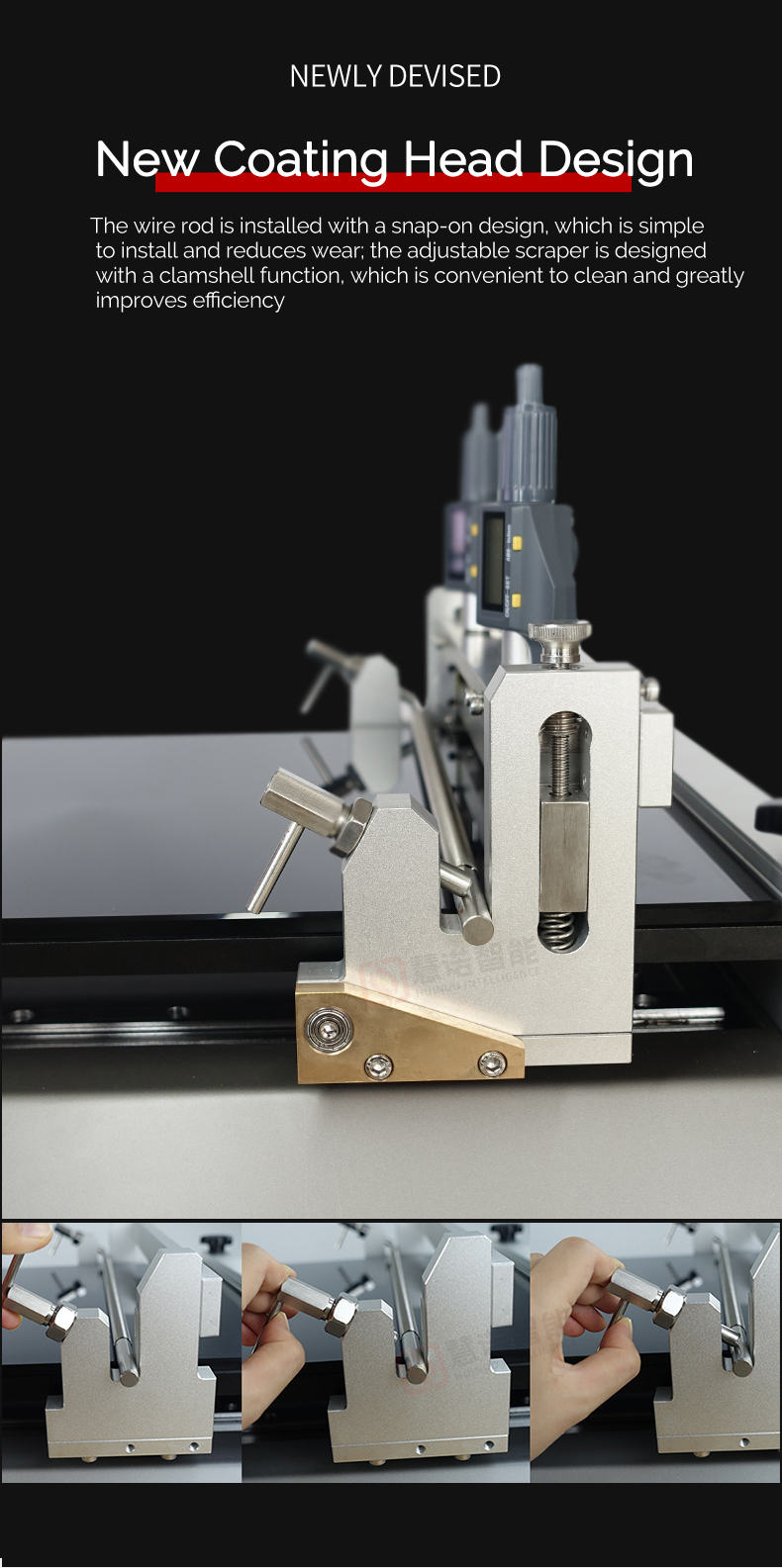

This coating machine is a wire bar doctor blade coating machine. It adopts two coating methods: wire bar and scraper. It has an external vacuum adsorption pump, an innovative wire bar installation method and a flip-type scraper head, which greatly improves the coating efficiency and facilitates cleaning. , with speed control and coating length adjustment functions, suitable for high-precision automatic coating in laboratories, film production and proofing in university research institutes, new materials, lithium batteries, glue, resin and other laboratories.
Applications
The film coating machine is suitable for coating film sample preparation of coatings, inks, paints, slurries, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, pharmaceuticals, etc. Used for scraping coating on films, cardboard, aluminum foil and copper foil.

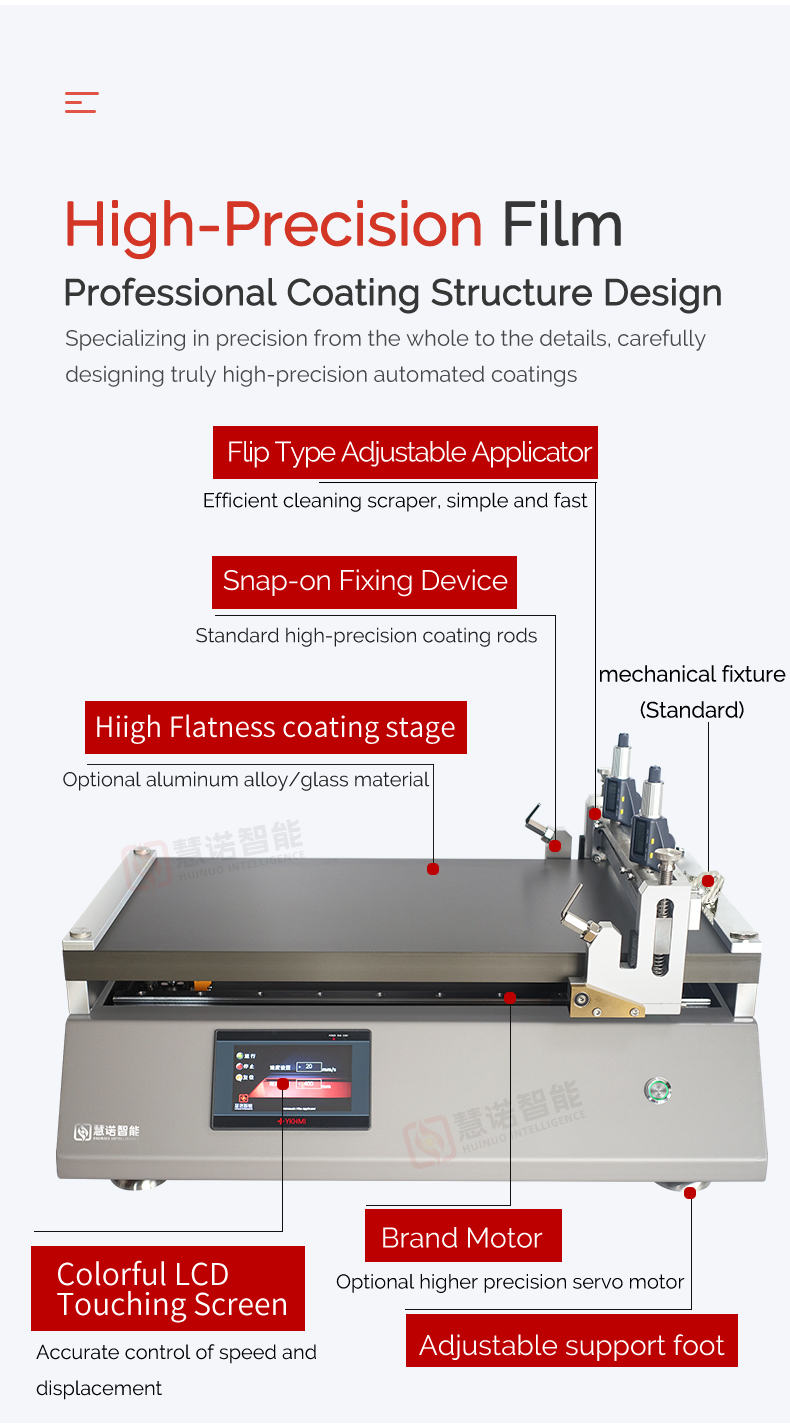

Features

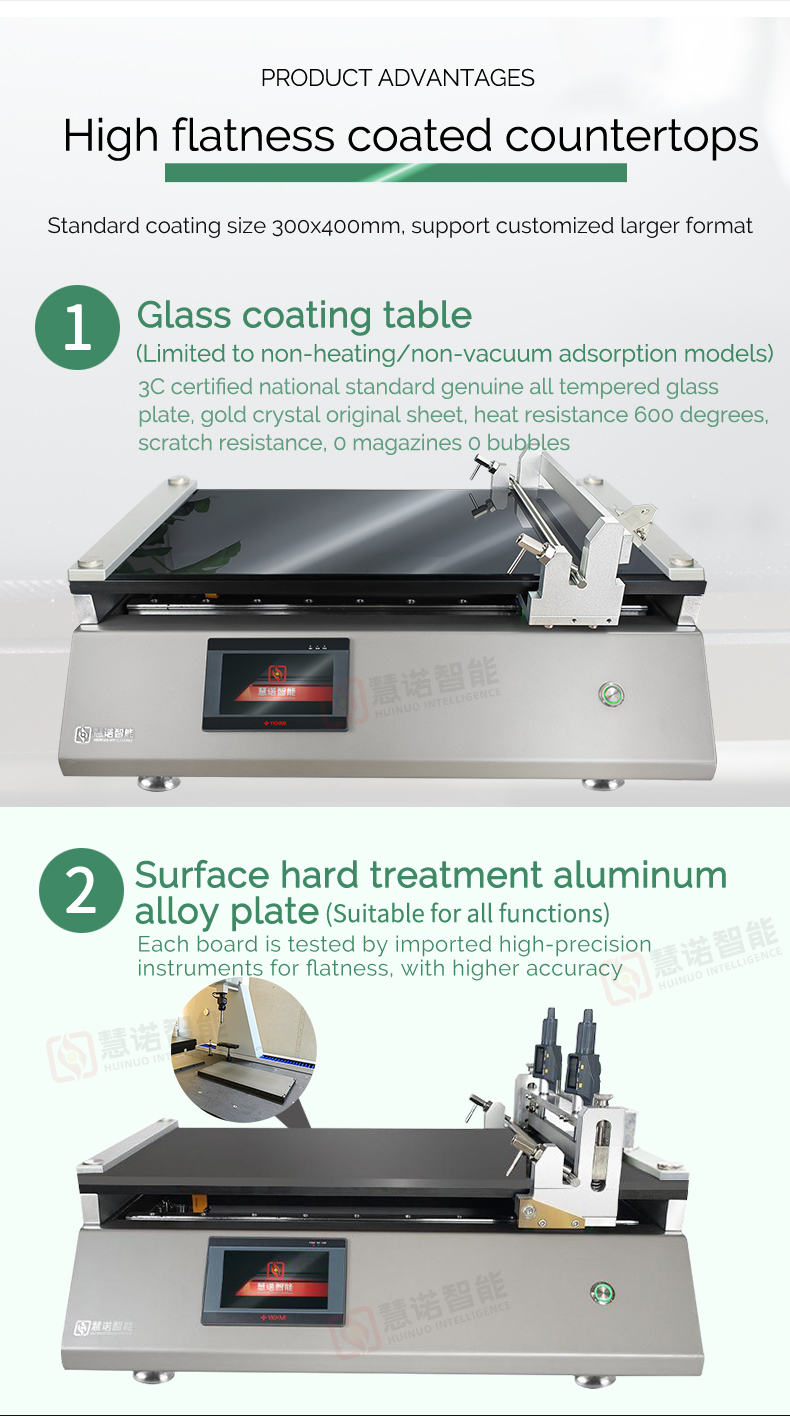

1) The surface is hard-treated aluminum alloy table, which has high hardness and wear resistance. The flatness of the table is tested with imported high-precision instruments.
2) Big brand differential regulator, high film thickness control accuracy
3) Flip-type doctor blade coating head, easy to clean
4) Equipped with a high-precision Film Applicator, the original imported wire rod can apply the film uniformly and with high precision
5) Touch screen control panel, easy to operate
6) Coating length and coating speed can be adjusted freely

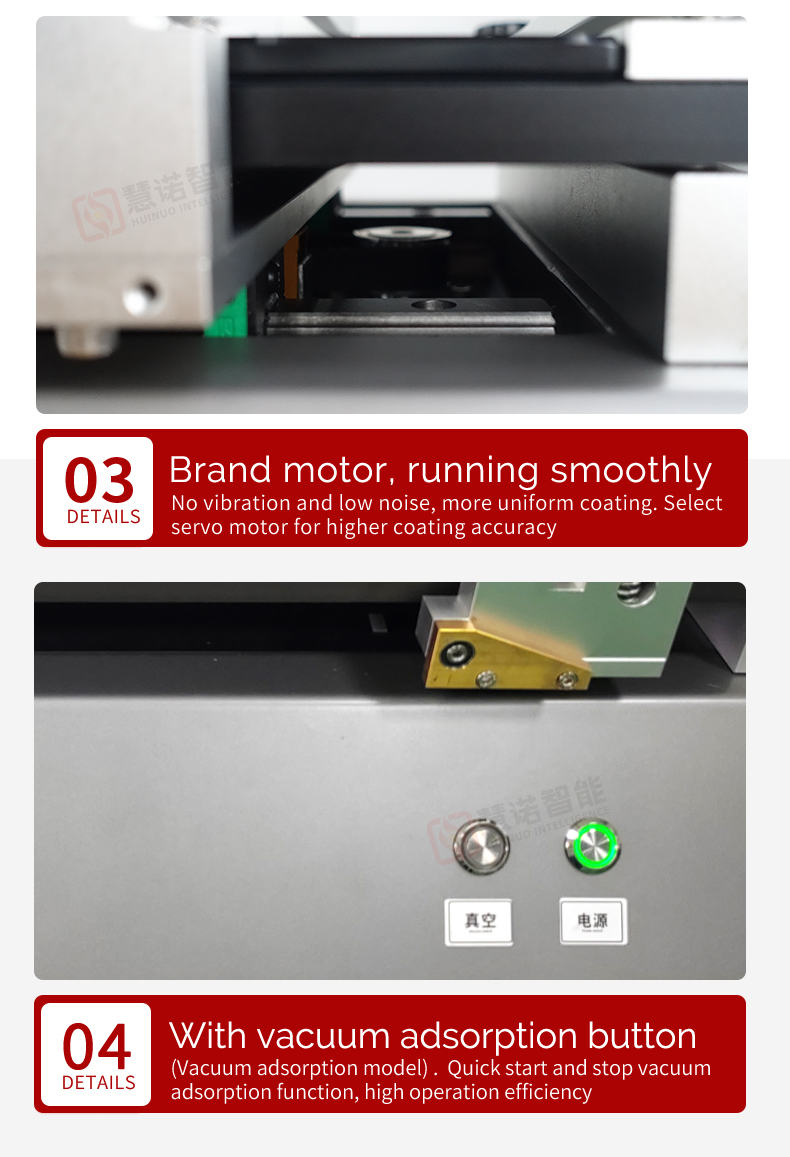

7) Equipped with vacuum adsorption function, suitable for coating soft substrates such as films.
