RDS 5 #1/4 "grooved rod film thickness 11.4μm rod diameter 6.35mm

SE
Can film 11.4 μm, formed molding technology, rod diameter of 6.35mm, with continuous wire, easy to clean and so on.
$155.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 5# 1/4“ Applicator rod 1/4 "SPEC

RDS 5# 1/4“ Applicator rod 1/4 "Details

RDS 5# 1/4“ Applicator rod 1/4 "Packing list

SKU
NB004588
Production process
formed
WFT
11.4μm
diameter
6.35mm
Total length
400mm
application width
300mm
Grip Width
50+50mm
material
stainless steel
5# 1/4“
Applicator rod 1/4 "
Can film 11.4 μm, formed molding technology, rod diameter of 6.35mm, with continuous wire, easy to clean and so on.

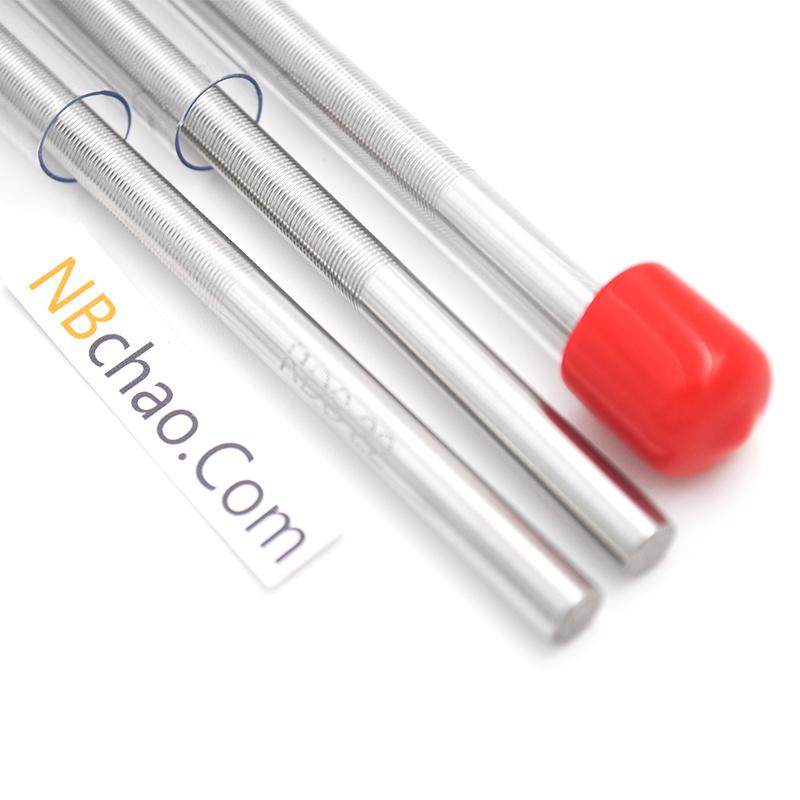

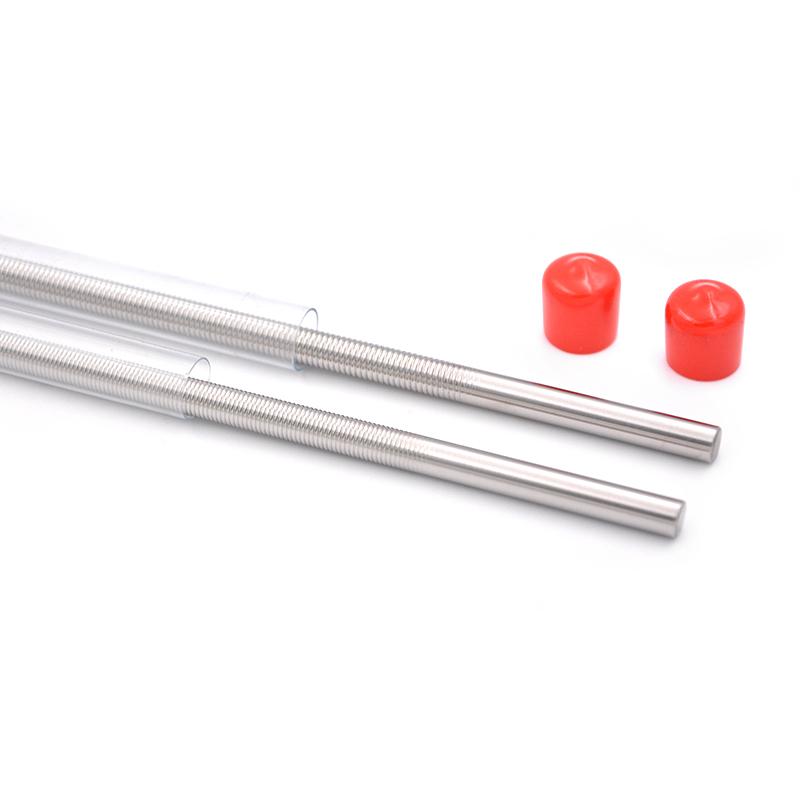

RDS 5 #1/4 "grooved rod film thickness 11.4μm rod diameter 6.35mm Picture

Product description

RDS No. 5 wire rod coater (also called coating rod, scraping rod) can be used in the laboratory to prepare precise film layers. The No. 5 scraping rod is made of high-grade stainless steel. According to different processes, RDS provides No. 5 forming coating rod, No. 5 wire wrap rod and wire wrap Bar Coaters are also available in 1/4, 3/8 and 1/2 inch diameters. Theoretically, wet film coatings prepared with different diameters have the same wet film thickness, but the difference is that the coating amount used will be different due to the groove shape and the diameter of the main rod. The domestic (CN) mainstream is to use 3/8 diameter, while in Taiwan, CHINA and Singapore, more 1/4 diameter wire rod coaters are used.

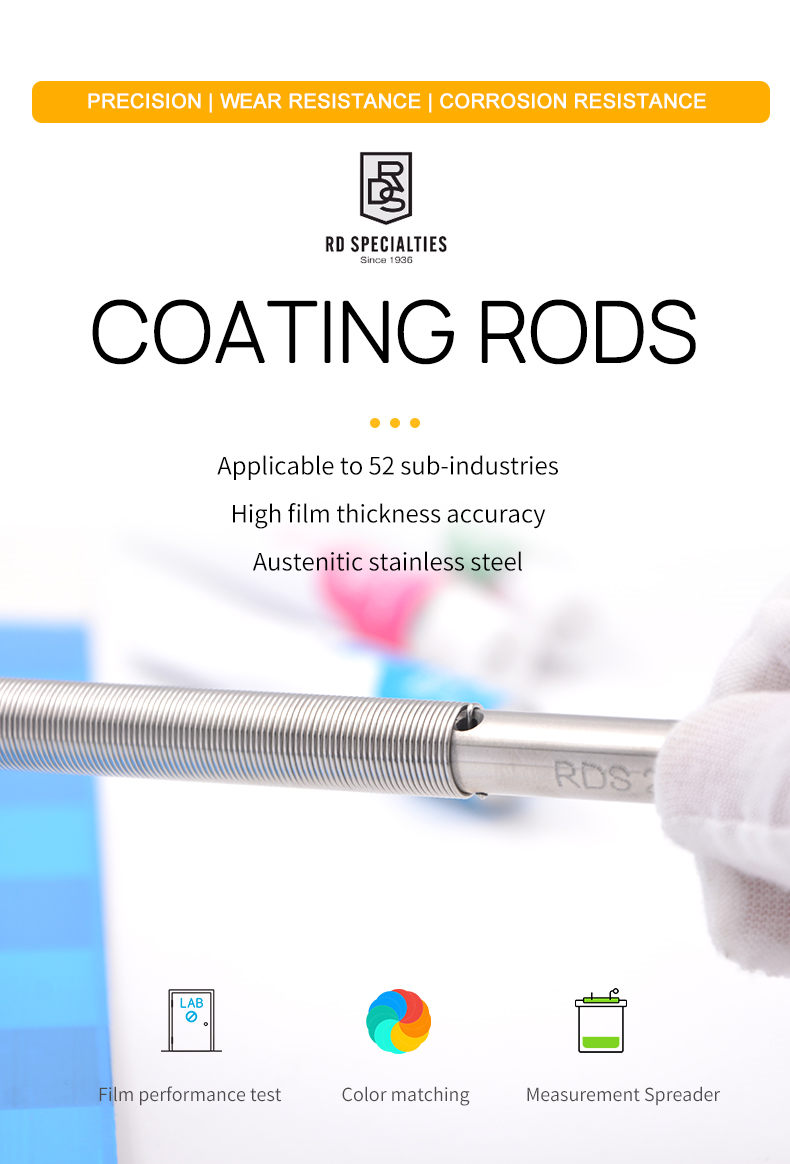

RDS coating Rods Figure 1



RDS coating Rods Figure 2

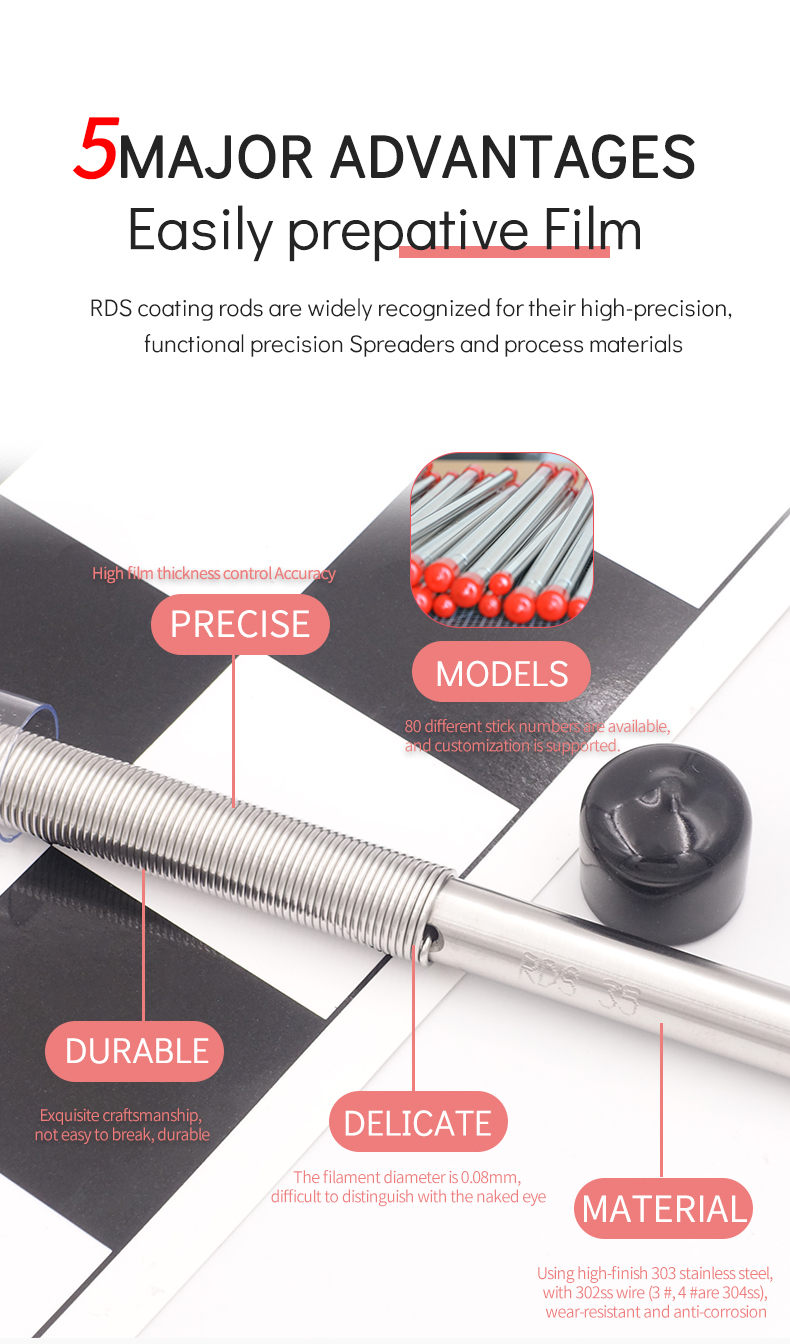

RDS coating Rods Figure 3

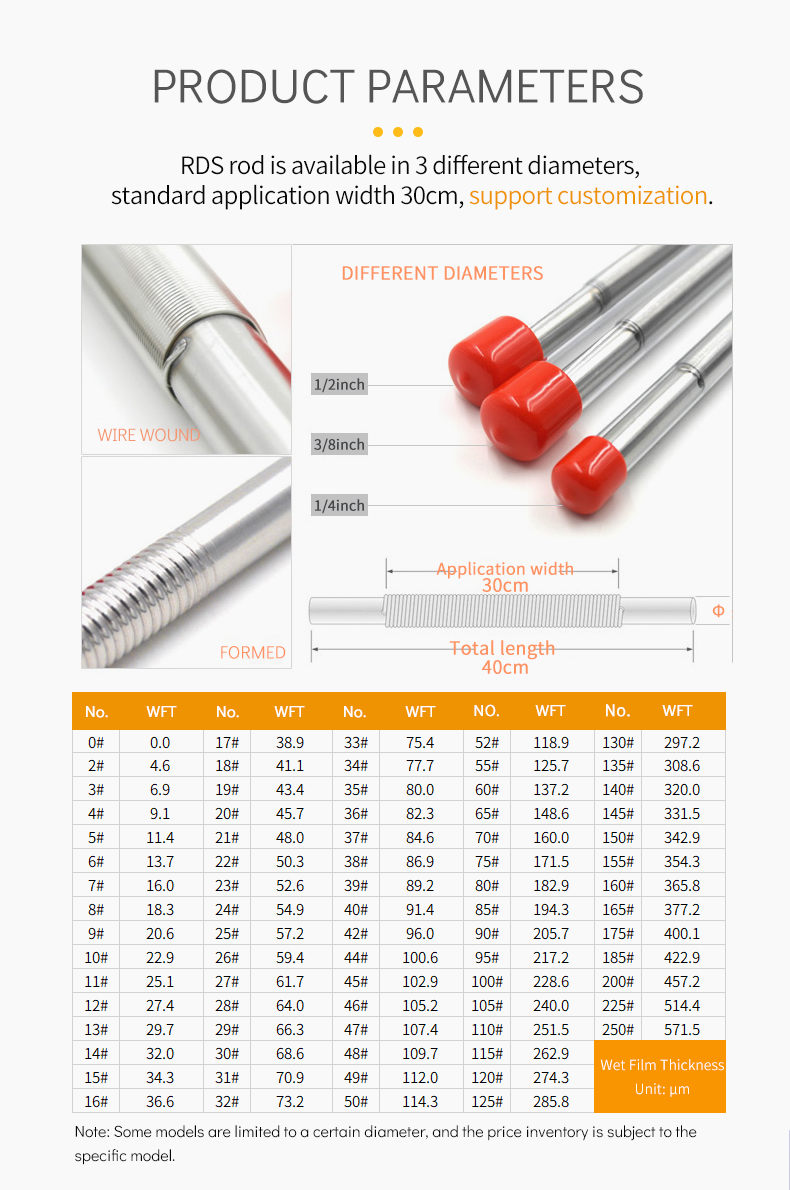

RDS coating Rods Figure 4

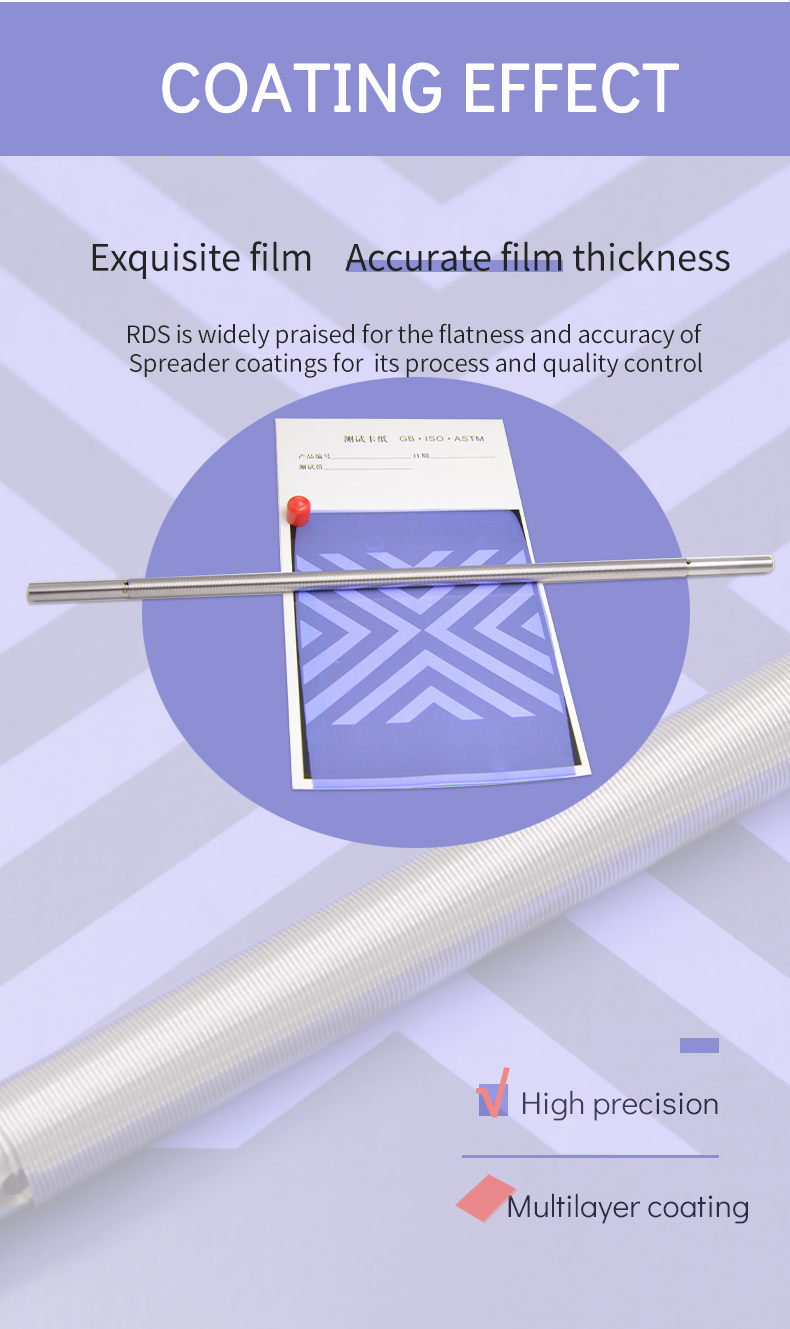

RDS coating Rods Figure 5

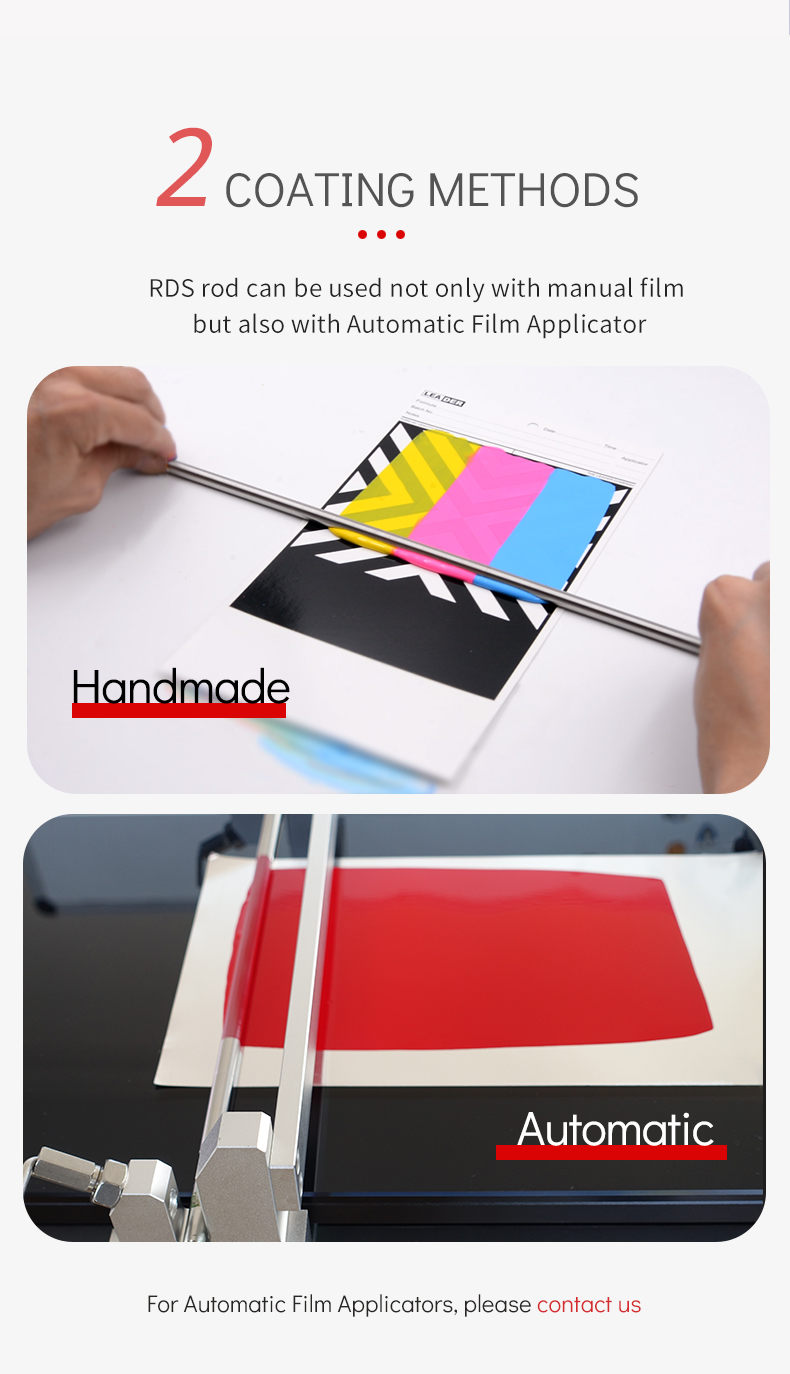

RDS coating Rods Figure 6



RDS coating Rods Figure 7

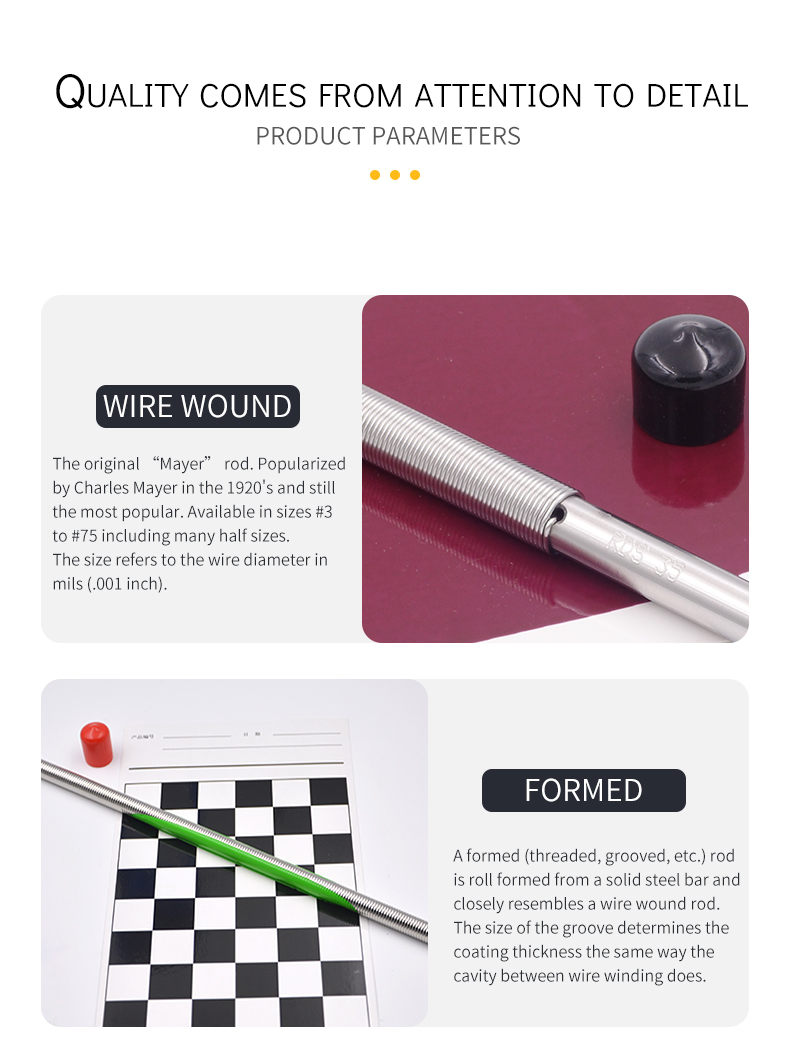

RDS coating Rods Figure 8

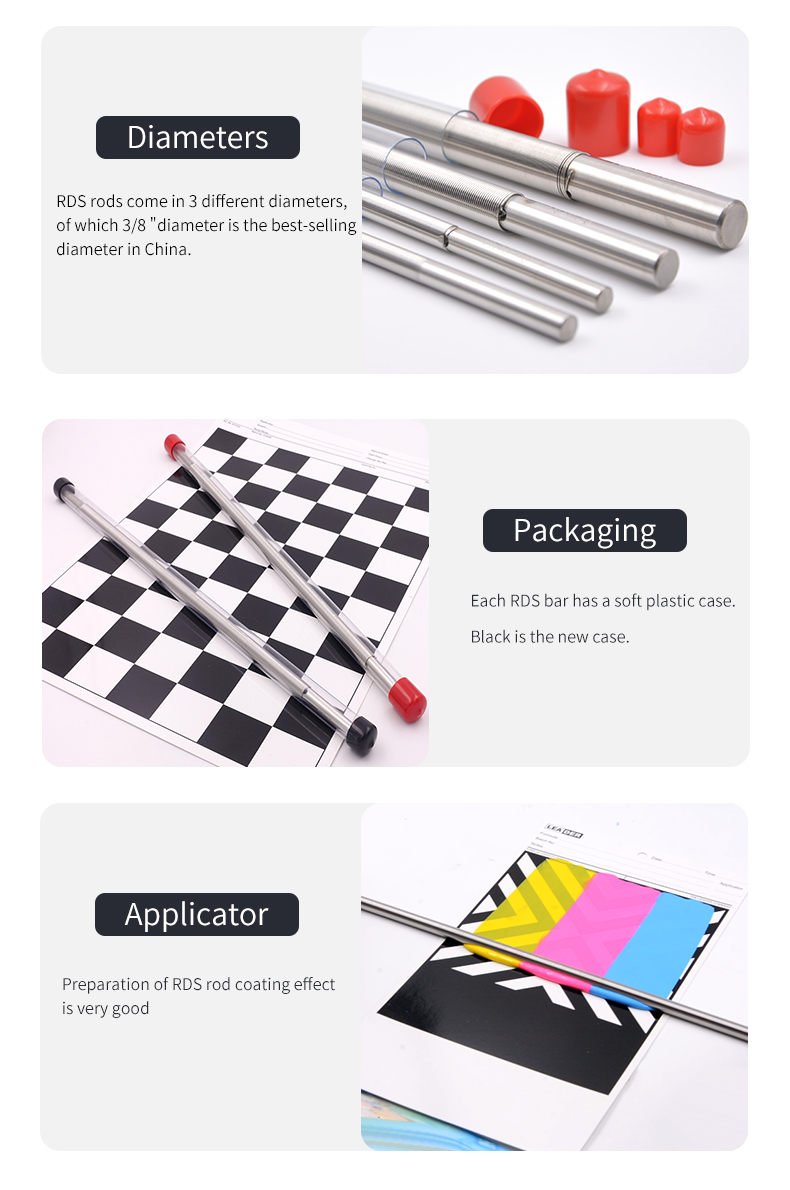

RDS coating Rods Figure 9



RDS coating Rods Figure 10



FAQ
QCan this scraper be coated with UV Gloss oil?
A OK
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
QIs there any GB/T13217.1 standard extrusion rod?
A This RDS extrusion rod is fine!
QHow many microns is a wire 5 rod?
A Different brands of No. 5 wire rod corresponding to the wet film thickness is different, RDS No. 5 wire rod 11.4 μ m; RK No. 5 wire rod is 50 μ m; OSP No. 5 wire rod is 5 μ m.
QI want to scrape out 3um 4um 5um film thickness, dry film, are these three applicable?
A Hello, Mayer Rods controls the wet film, and the thickness of dry film also depends on your Solid content. You can't simply match the selection with numbers. If you need help, you can consult customer service, or apply the dry and wet film converter developed by NBchao to calculate.
