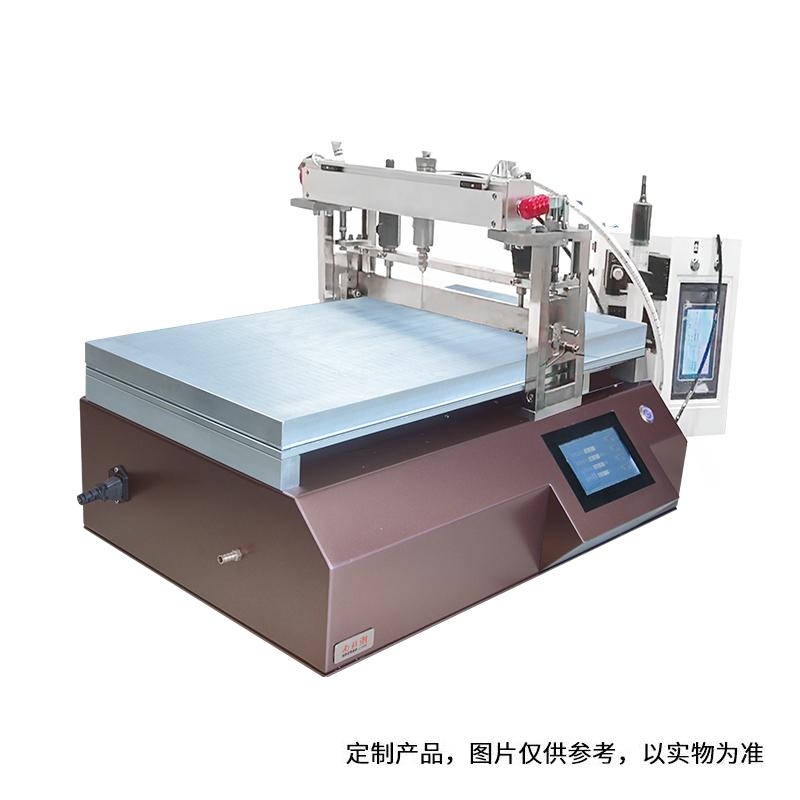

China TBJ-B2-DJ10 Injection Automatic Feeding Film Applicator drawdown Bar & blade coater

TBJ-B2-DJ10

Automatic Film Applicator

Bar + Drawdown blade type, using injection type automatic feeding, baseplate is Glass, film format 400 * 400mm; standard imported bar, accuracy up to 1μm, touch screen operation, injection Flow rate range 28.0.831 nL-150.5ml/min.

Overview

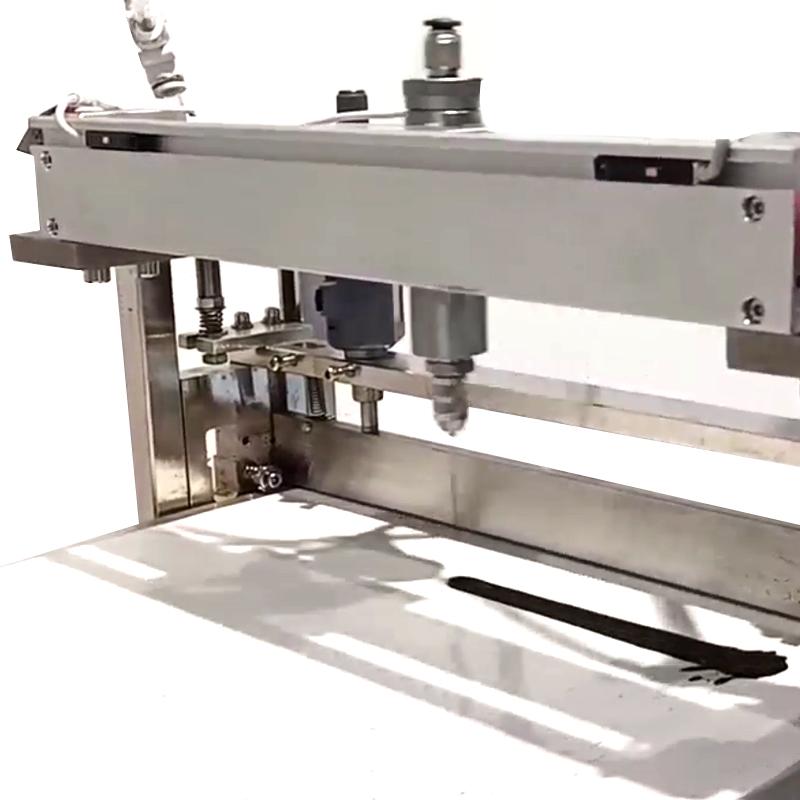

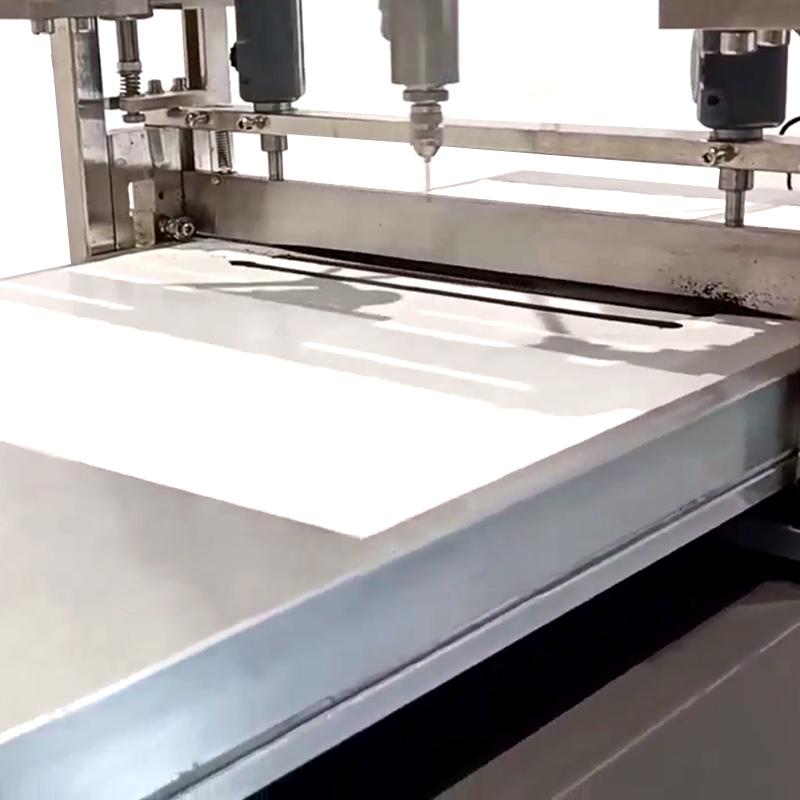

TBJ-B2-DJ10 Injection Automatic Feeding Coating Machine is an automatic coating machine with an integrated wire rod scraper, with a glass bottom plate, a coating film width of 400*400mm, the flow rate of the syringe pump can be adjusted according to actual needs, and the injection stroke is 400mm.

Since the main factors affecting the coating film are the coating speed and the pressure applied to the coater, the coating applied by hand is often inconsistent, especially between different people, which makes it difficult to compare the test results between the samples. The automatic Film Applicator is carefully designed to allow the operator to easily apply a precise wet film on different substrates, which greatly improves the reproducibility of the coating film.

This automaticCoater as standardImported wire rodsThe coating accuracy is up to 1 μm.

Optional

Packing list：Film Applicator X1, Imported bar X1, Drawdown blade X1, Injection automatic feeding system x1, Head and tail fixture x4, Product manual X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
