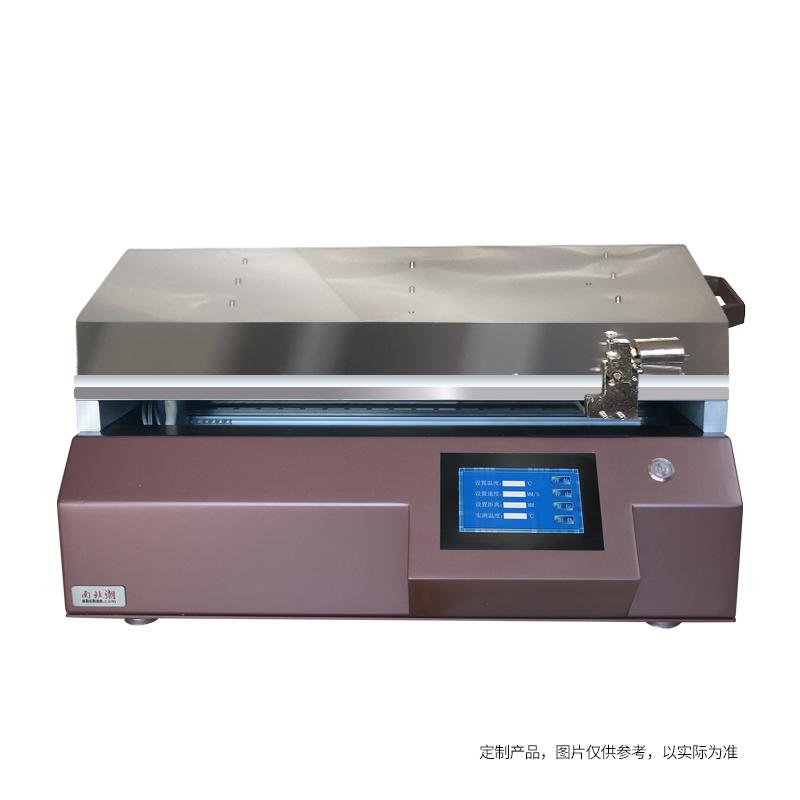

CHINA TBJ-B3-UV1 drawdown blade coater heating UV curing Film Applicator
SEHeating + drawdown blade + UV curing, effective Coating size 450 * 650mm, WFT 0~10mm, touch LCD screen operation, suitable for UV film.
$8154.00/set
PromotionLoading...
Coupon
Model：
TBJ-B3-UV1
zy
Manufacturer authorization
Similar products
-
CHINA UV curing Film Applicator metering rod & drawdown blade Heating type Film Applicator TBJ-B4-UV1$ 4423.00SE -
China TBJ-X1-DJ7UV UV curing Drawdown blade Film Applicator Vacuum chuck coater$ 5512.00SE -
HUINUO TM 2100/01 drawdown blade heating coater coating format 400 * 400mm$ 3957.00SE -
China TBJ-B3-DJ5 Drawdown blade Heating Film Applicator Coating area 400 * 400mm$ 4113.00
zy TBJ-B3-UV1 Automatic Film ApplicatorSPEC
zy TBJ-B3-UV1 Automatic Film ApplicatorDetails
zy TBJ-B3-UV1 Automatic Film ApplicatorPacking list
- SKU
- NB045909
- Drawdown blade type
- Integrated drawdown blade
- Drawdown blade Accuracy
- ±0.003mm

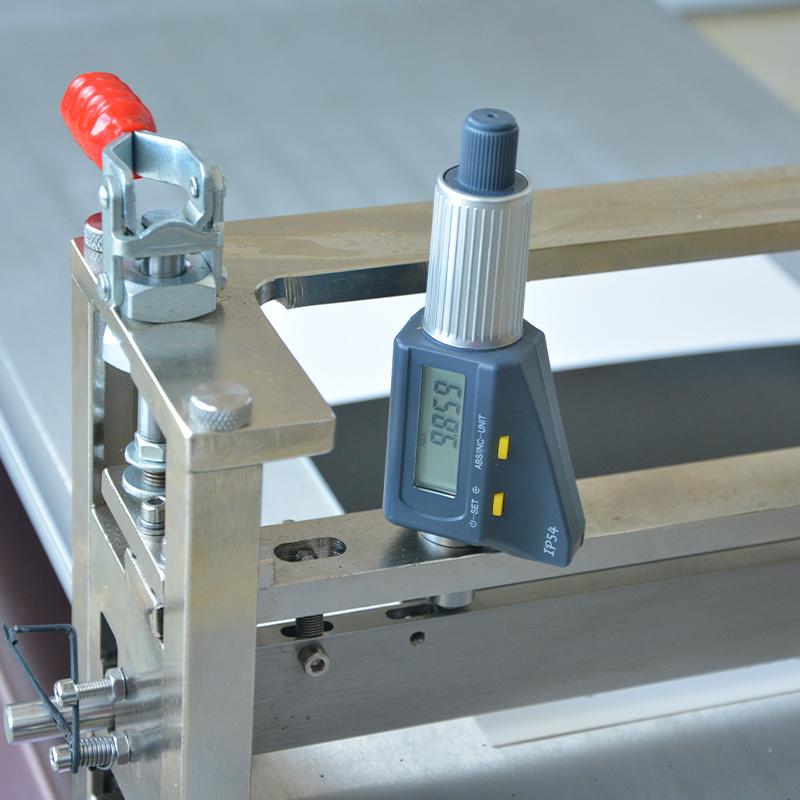

- Drawdown blade thickness range
- 0.001~ 10Mm adjustable
- Coating speed
- 5-200Mm/s (< 5mm/s can be customized)
- Spreader distance control
- The number can be set arbitrarily within the range of 1-650mm
- Heating Temperature range
- RT+~180℃
- Temperature Uniformity
- ±3℃
- Length of drawdown blade
- 400mm
- Drawdown blade material
- 304 stainless steel
- Host Power Supply
- 220V 50Hz 1700W
- speed control
- Infinitely variable speed
- Substrate clamping method
- Mechanical fixture
- Control mode

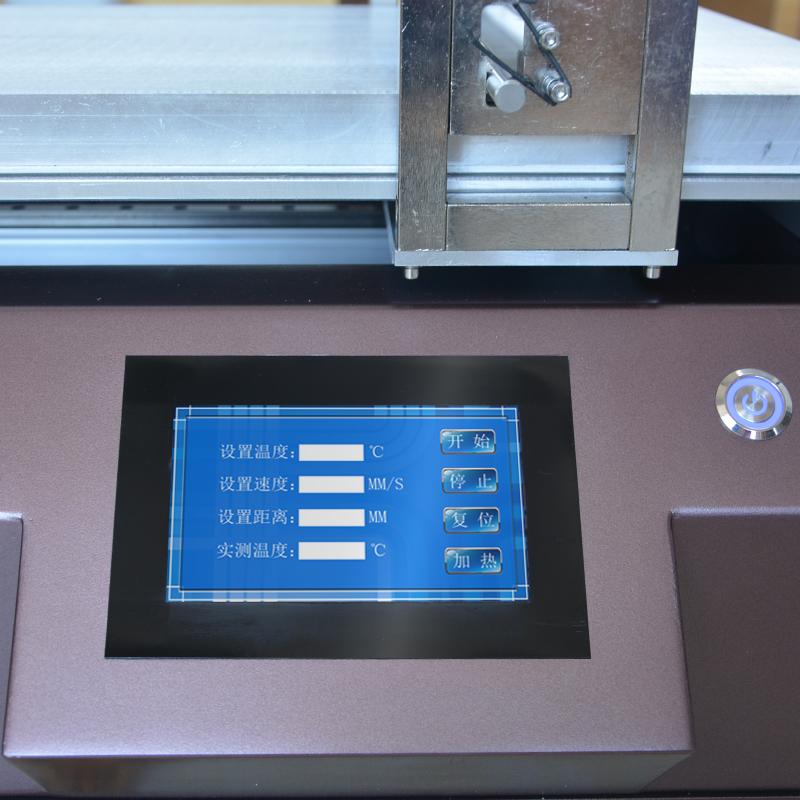

- Touch screen control
- Coating table material
- aluminum alloy
- UV light main peak wave
- 36nm
- UV Light Power
- 400*2W
- UV light curing wavelength
- 350-450nm
- switch
- Aviation plug/separate switch
- Light source spacing
- 18*18mm
- Light board height from Spreader
- 20Mm (support customized adjustable height)
- Optional Accessories
- Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle
- customizable function
- Automatic lame plating device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader
TBJ-B3-UV1
Automatic Film Applicator

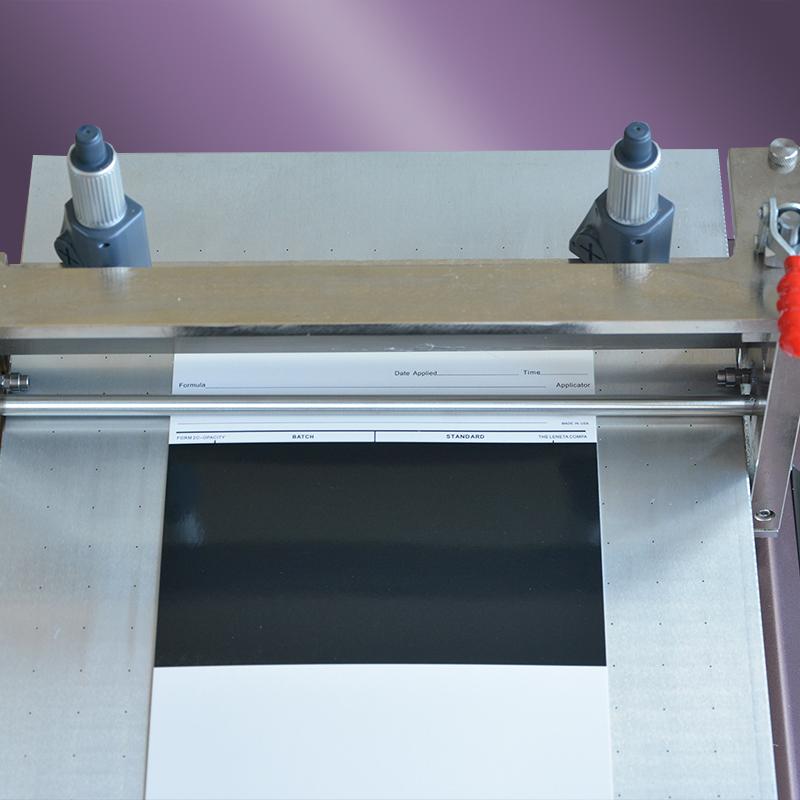

Heating + drawdown blade + UV curing, effective Coating size 450 * 650mm, WFT 0~10mm, touch LCD screen operation, suitable for UV film.
TBJ-B small coating testing machine for experimental use all imported accessories, and the price is cheap, has been favored by many multinational enterprise R&D institutions, many familiar universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure to ensure the coating and gluing effect, and ensure the uniformity and stability of the coating and gluing.

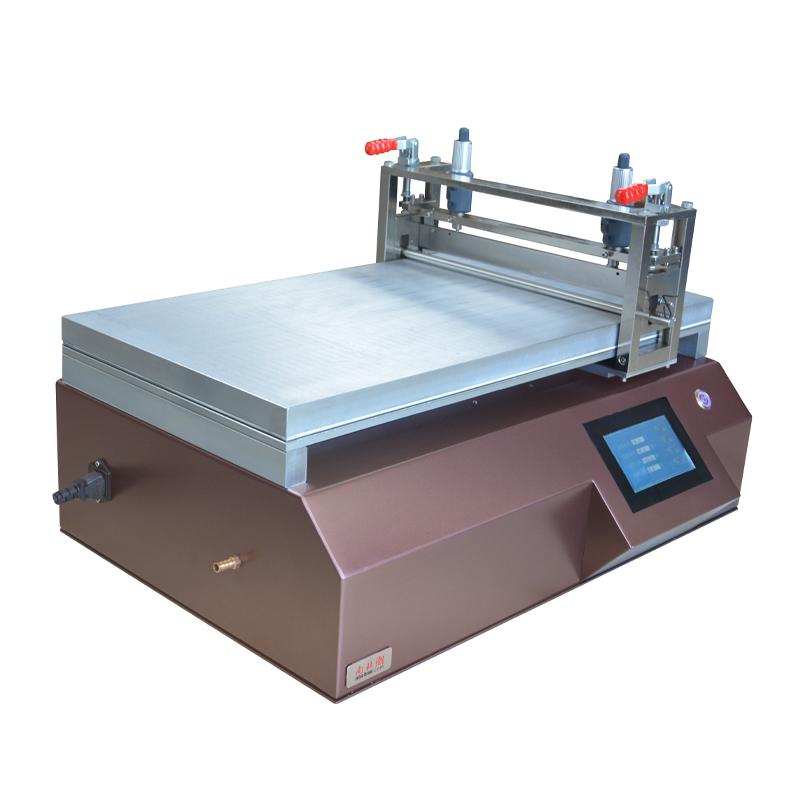

TBJ-B3-UV1 squeegee coating machine is a small film coating machine with heating function and UV curing function, the effective coating format is 450*650mm, using touch screen liquid crystal operation, suitable for UV varnish, UV glue and other film proofing.
Optional
|
|
|
