MODERNER Frame 50/100/150/200 Large Frame Applicator Groove Width 60mm

Frame type 50/100/150/200 (groove width 60mm)

Large Frame Applicator

Wet film thickness 50/100/150/200μm, Spreader width 60mm, size 60 * 80mm, stainless steel material, with abrasion resistance and corrosion resistance characteristics.

Large Frame ApplicatorIntroduction

MODERNER large Frame Applicator,Model frame 50/100/150/200It is a four-sided Wet Film Applicator with a frame shape with a film thickness of 50/100/150/200 microns and a groove width of 60 mm.Frame 50/100/150/200The large Frame Applicator is 60x80mm and is made of stainless steel.

Parameter comparison

Use of materials

Frame type 50/100/150/200 large Frame ApplicatorIt is made of 9Cr18Mo stainless steel, which has the characteristics of wear resistance and corrosion resistance.

Hardness value

The hardness of the preparer is HRC48±2

Procedure

1. Place the sample on the platform and fix it so that the Frame Applicator does not move when it slides over.

2. Select the appropriate wet film thickness for the preparation and place it on the short side of the sample, close to parallel or the specified position.

3. Pour about 5 ml of sample in front of the frame 50/100/150/200 large Frame Applicator, and press and hold both ends of the preparer with your fingers, and slide at a constant speed of 150 mm/s to finally obtain the wet film of the required wet film thickness.

4. After use,Box50/100/150/200Large-Frame ApplicatorScrub clean with a suitable solvent and apply oil or petroleum jelly to the surface.

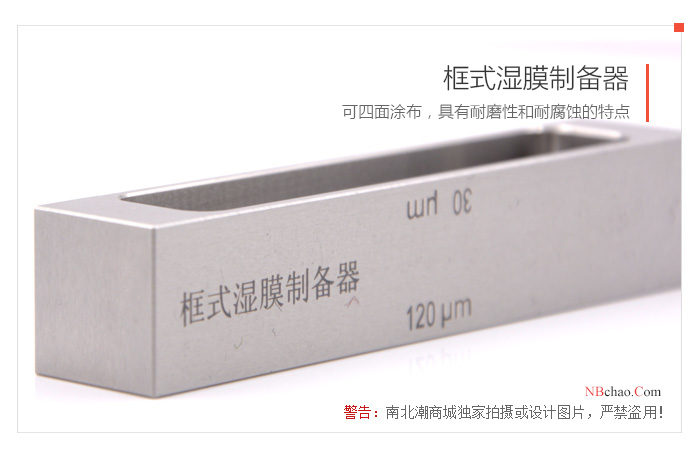

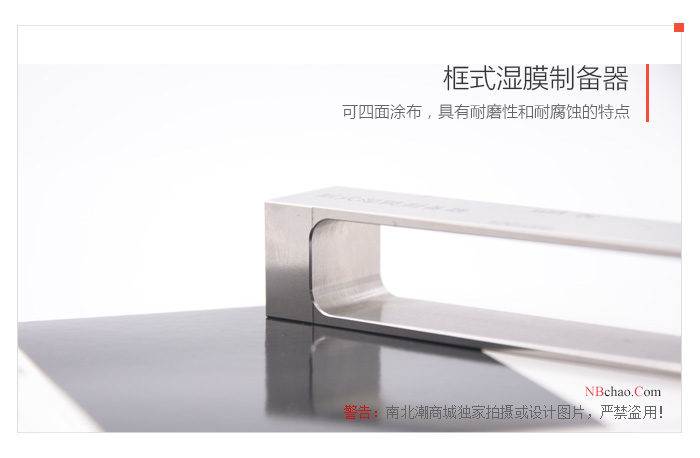

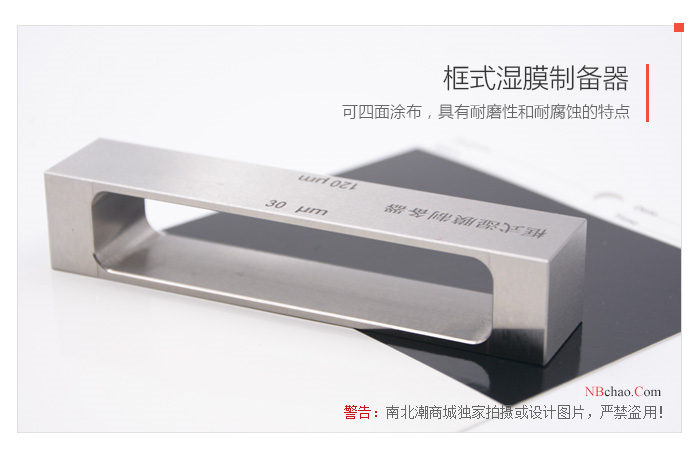

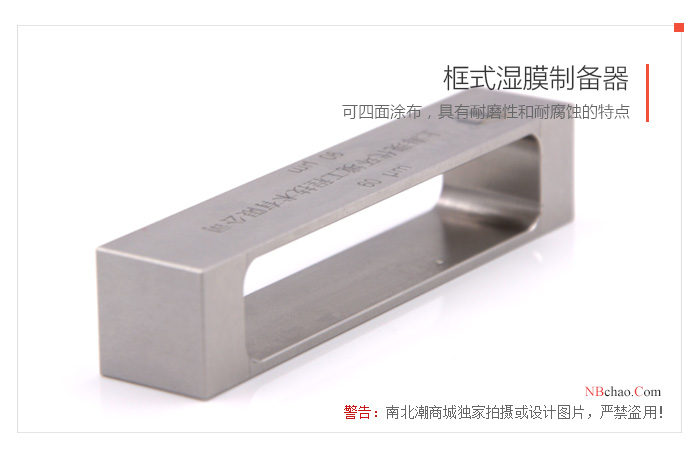

Actual picture of the product

Packing list：Applicator x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
