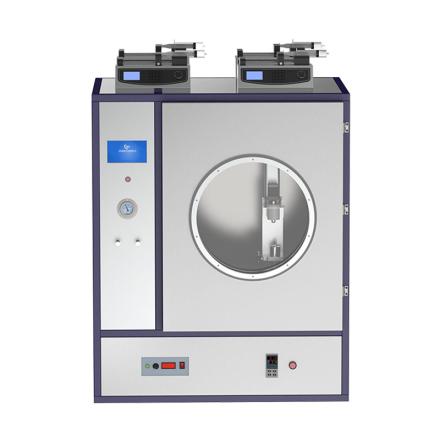

ChengYue CY-SP-04-HT High throughput ultrasonic pyrolysis lame plating machine Specifications
Search
Brand：ChengYue
Model：CY-SP-04-HT
Name：High throughput ultrasonic pyrolysis lame plating machine
Specifications
| input Voltage | 208-240V, 50/60Hz, single phase; Total Power: 3000W |
| nozzle | Includes two nozzles; compressed air nozzles for thick film coatings; ultrasonic nozzle with 150W 120Khz generator with solution viscosity < 30 cps; comes with a digital FMC for delivering complex gases to the nozzle at constant pressure. |
| syringe pump | Includes four syringe pumps. Three are used for mixing and Spreader solutions, and one is used to wash D water; |
| Standard syringe Capacity | 60Ml (Miscellaneous Capacity optional); |
| Linear speed range | 1 μm/min---120mm/min adjustable (Flow velocity = linear velocity x cross-sectional area in syringe) |
| Accuracy | ≤ +/- 0.5% (when > 30% FS) |
| control | The syringe pump is controlled by a self-digital control panel or a main touchscreen control panel |
| Size (L × W × H) | 1100×730×1500mm |
| Weight | About 1000 kilograms |
Packing list
host X1, manual X1, certificate X1, warranty card X1
After-sales instructions
Warranty days: 365 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/45911/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
