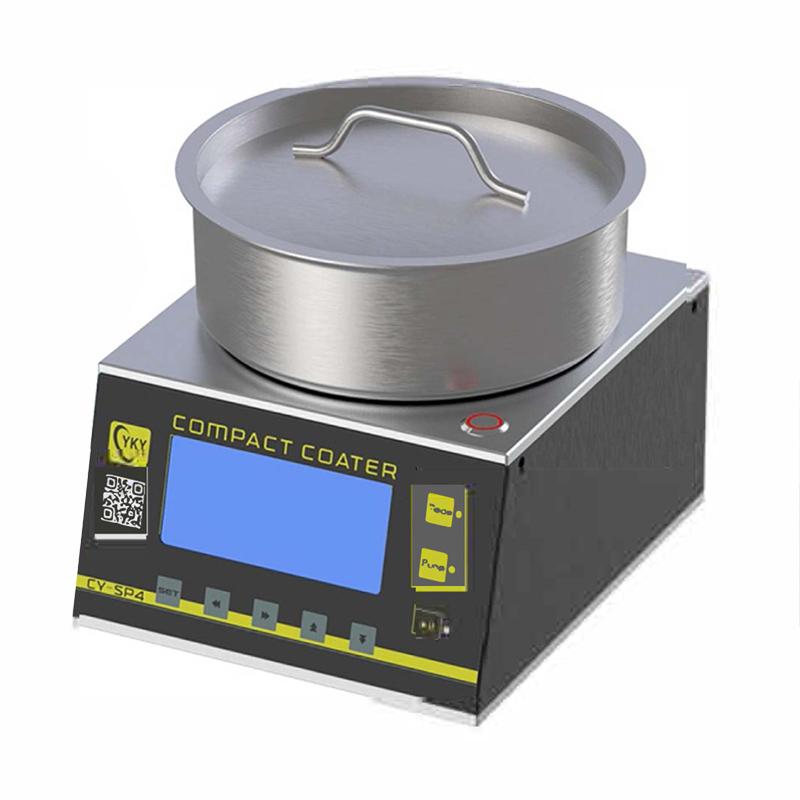

Chengyue CY-SPC4-SS Spinning Coater Photoresist Spin Coater 10000 rpm programmable homogenizer

SE
The miniaturized design is equipped with 304 stainless steel cavity, the maximum speed is 10,000 rpm, and it supports 5-stage homogeneous Linear dispersion storage, which is suitable for precision coating of substrates with a diameter of ≤ 4 inches.
$1392.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT

ChengYue CY-SPC4-SS Spin CoaterSPEC

ChengYue CY-SPC4-SS Spin CoaterDetails

ChengYue CY-SPC4-SS Spin CoaterPacking list

SKU
NB045913
Power Supply
AC220V,50Hz
Speed range
0~10000rpm
Acceleration range
100~5000rpm/s
RPM resolution
1rpm
single step time
3000s
Suitable substrate
Diameter ≤ 4 inches (100mm)
Cavity material
304 stainless steel
Human Machine Interface
button + LCD screen
Epoxy method
Manual glue drop, optional precision syringe pump
Linear dispersion
Linear dispersion 5 segments each, a total of 5 Linear dispersions can be stored
Extraction port
φ 6mm quick screw interface
Machine size
210*250*180mm
Machine Weight
8kg
Vacuumpump
Dry mechanical pump
pumping rate
50L/min
Vacuumpump Power Supply
AC220V 50/60Hz
CY-SPC4-SS
Spin Coater
The miniaturized design is equipped with 304 stainless steel cavity, the maximum speed is 10,000 rpm, and it supports 5-stage homogeneous Linear dispersion storage, which is suitable for precision coating of substrates with a diameter of ≤ 4 inches.
Chengyue CY-SPC4-SS Spinning Coater Photoresist Spin Coater 10000 rpm programmable homogenizer Picture

Product Introduction

CY-SPC4-SS homogenizing machine is designed to be miniaturized, with an aluminum alloy structure and a 304 stainless steel cavity for a beautiful and sturdy appearance. The instrument adopts advanced precision motors, and the maximum speed can reach 8000 rpm; The control relies on buttons and high-brightness LCD screen, and in addition to direct homogenization, it can also pre-store the homogenization curve for programmable homogenization. This instrument effectively guarantees the performance and function of the instrument under the premise of greatly reducing the volume, and is very suitable for laboratory purchase.

Scope of application

CY-SPC4-SS homogenizerLiquid or colloidal materials can be coated on silicon wafers, crystals, quartz, ceramics and other substrates to form thin films, which are mainly used in photoresist spin coating, biological culture medium production, sol-gel method to make polymer films and other fields.

FAQ
QWe do sol-gel thin film experiments, we need equipment that can store homogenization procedures, is there a suitable one?
A CY-SPC4-SS is very suitable. It can pre-store 5 homogeneous Linear dispersions, and each segment can be set with different Rotation speeds and times, which just meets the complex process requirements of sol-gel method for making polymer films.
