RDS 6 #1/4 "roller painting rod film thickness 13.7μm rod diameter 6.35mm

SE
Using formed molding technology, the rod diameter is 6.35mm, the film can be 13.7μm, the application width is 300mm, and it has the characteristics of continuous wire and easy cleaning.
$155.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 6# 1/4 Applicator rod 1/4SPEC

RDS 6# 1/4 Applicator rod 1/4Details

RDS 6# 1/4 Applicator rod 1/4Packing list

SKU
NB004593
Production process
formed
WFT
13.7μm
diameter
6.35mm
Total length
400mm
application width
300mm
Grip Width
50+50mm
material
stainless steel
6# 1/4
Applicator rod 1/4
Using formed molding technology, the rod diameter is 6.35mm, the film can be 13.7μm, the application width is 300mm, and it has the characteristics of continuous wire and easy cleaning.

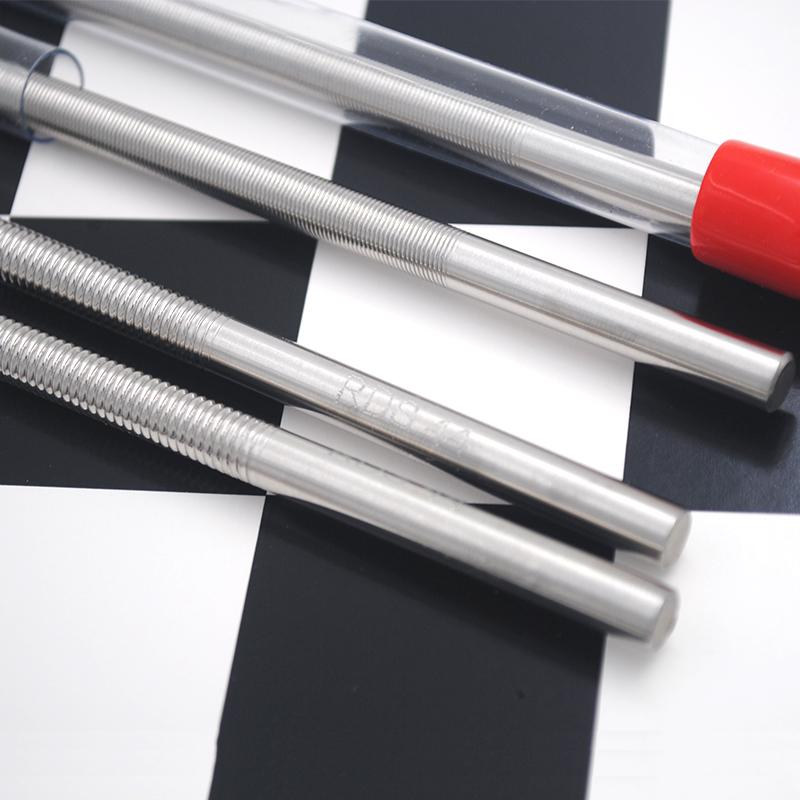

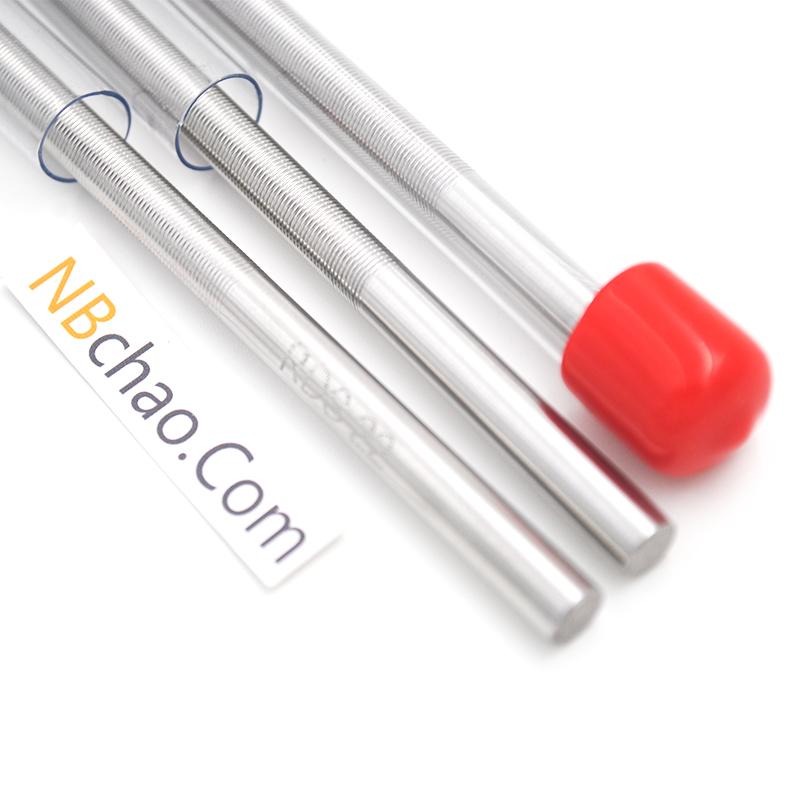

RDS 6 #1/4 "roller painting rod film thickness 13.7μm rod diameter 6.35mm Picture

Product description

RDS No. 6 wire rod coater is a coating rod with a wet film thickness of 13.7 microns. The length of the RDS wire rod coater is 40mm. According to different user needs, RDS has developed two types: wire winding type and forming type. For wire Bar Coaters, the wet film thickness prepared by the same type of coating bar is the same, but there will be differences in the amount of coating applied. The forming type wire rod coater currently only has a diameter of 6.35mm, while the wire-wound type has three diameters of 9.5mm, 6.35mm, and 12.7mm, and the diameter of 9.35mm is more widely used.


RDS coating Rods Figure 1



RDS coating Rods Figure 2



RDS coating Rods Figure 3



RDS coating Rods Figure 4



RDS coating Rods Figure 5



RDS coating Rods Figure 6



RDS coating Rods Figure 7



RDS coating Rods Figure 8



RDS coating Rods Figure 9



RDS coating Rods Figure 10



FAQ
QHas anyone prepared a coating rod for graphene film? 10 microns
A This one can be referred to.
QIs the RDS 6 #1/4 "roller painting stick wound or formed?
A Hello, this one is formed.
QCan this scraper be coated with UV Gloss oil?
A OK
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
QHelp me find an extruded wire rod that meets the GB/T13217.1 standard
A This 6 #1/4 "extrusion rod is fine!
Q6 #What is the thickness of the Spreader Film?
A Hello, different brands of 6 #Spreader sticks correspond to different Spreader Film thicknesses. The No. 6 wire rod of RDS is 13.7 μm; the No. 6 wire rod of RK is 60 μm; the No. 6 wire rod of OSP and Spreader, modern is 6 μm.
QOur company is a solar backplane, the laboratory needs to use a scraper, want to consult, want to achieve the film thickness in our mind, how to choose the rod number, no thickness of dry film can not refer to ah, before using the rds6 scraper, coated with a thickness of dry film is 4 microns, if I want to reach 6 to 8 microns, can you suggest?
A It can be roughly calculated according to dry film = wet film × solid parts. The wet film of RDS No. 6 rod is 13.7 μm, and the solid content is about 29% by calculation. If you want to make 6 μm and 8 μm dry films, you need to scrape the wet film 20.5 microns and 27.4 microns, which corresponds to RDS rod, which can be close to RDS 9 #and RDS 12. Thank you for your consultation.
