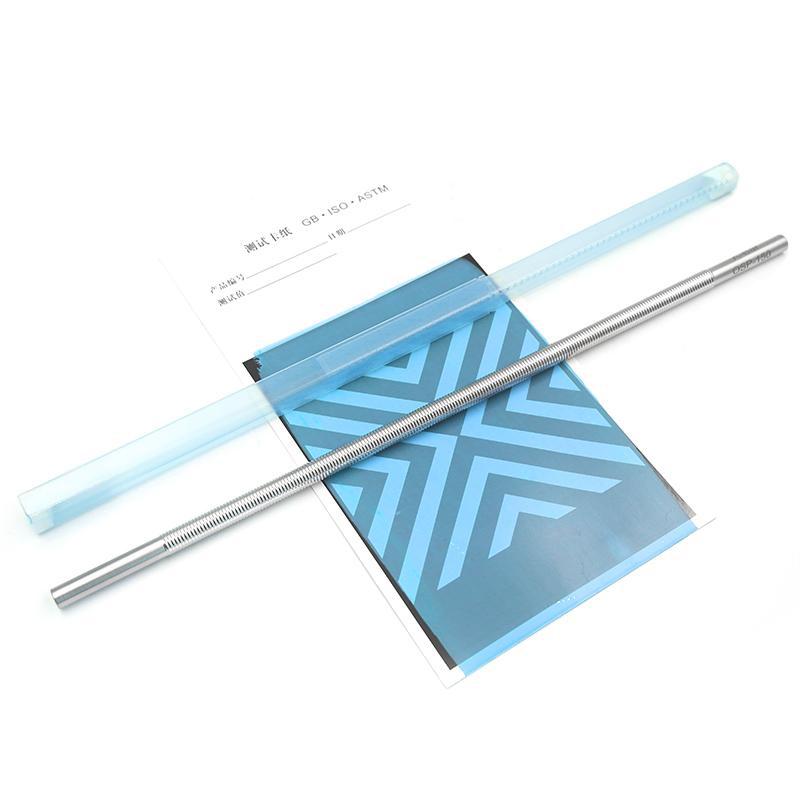

Japan OSP OSP-120T L400 Applicator rod wire-wound drawdown Bar WFT 120μm length 400mm
SEThe film thickness is 120μm, the length is 400mm, and the bottom is a K-shaped cogging, which is suitable for customers with higher glue viscosity, such as silk, non-woven fabrics, etc.
$172.00/piece
PromotionLoading...
Coupon
Model：
OSP-120T L400
OSP OSP-120T L400 Coating rodSPEC
OSP OSP-120T L400 Coating rodDetails
OSP OSP-120T L400 Coating rodPacking list
- SKU
- NB045931
- Production process
- Formed
- WFT
- 120μm
- diameter
- 10mm
- Total length
- 400mm
- Application width
- 300mm
- material
- 304 stainless steel

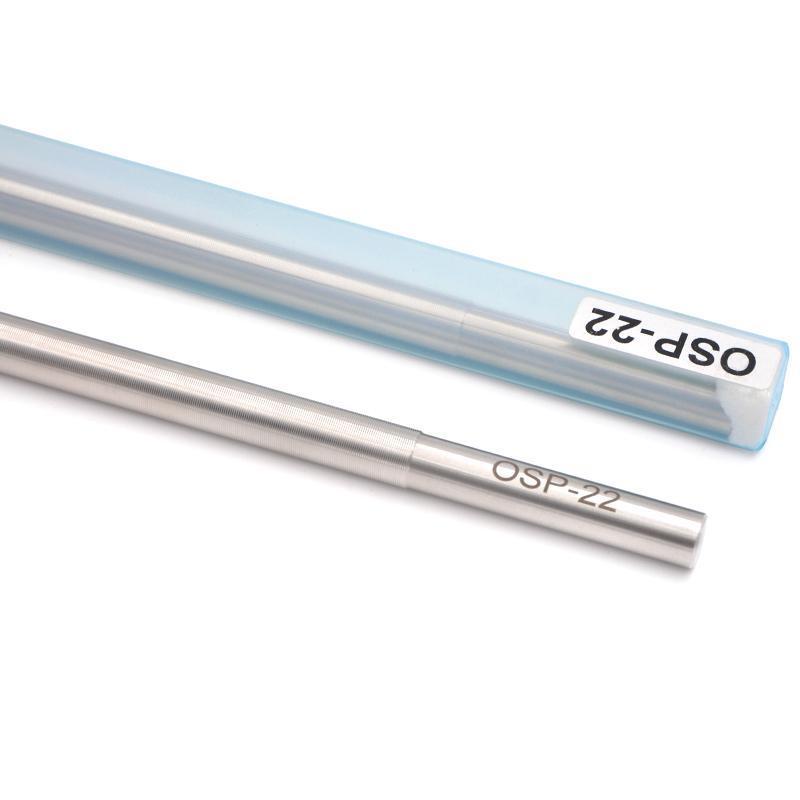

OSP-120T L400
Coating rod
The film thickness is 120μm, the length is 400mm, and the bottom is a K-shaped cogging, which is suitable for customers with higher glue viscosity, such as silk, non-woven fabrics, etc.

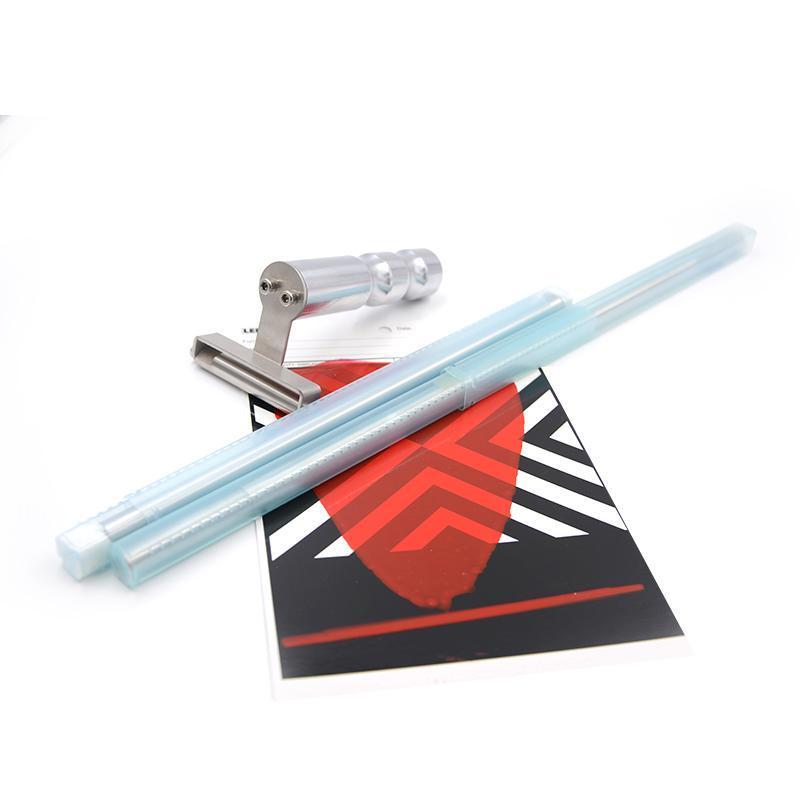

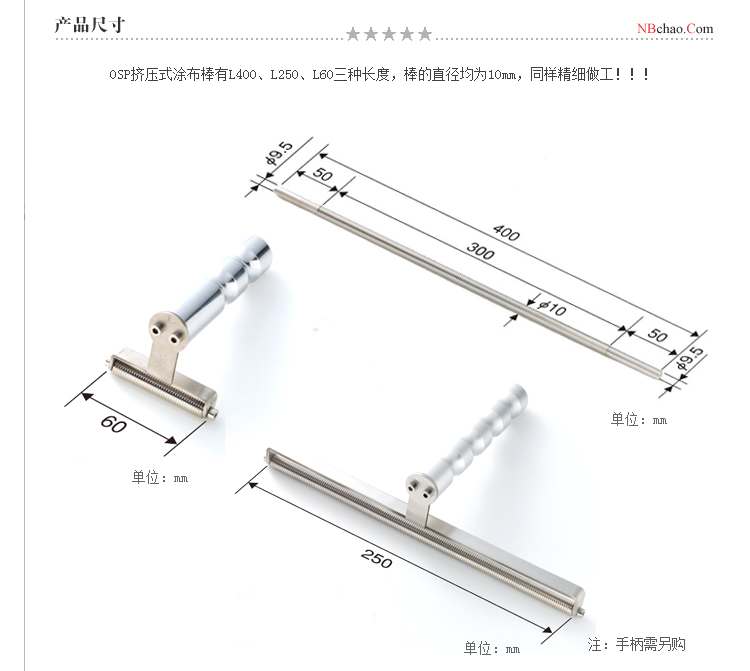

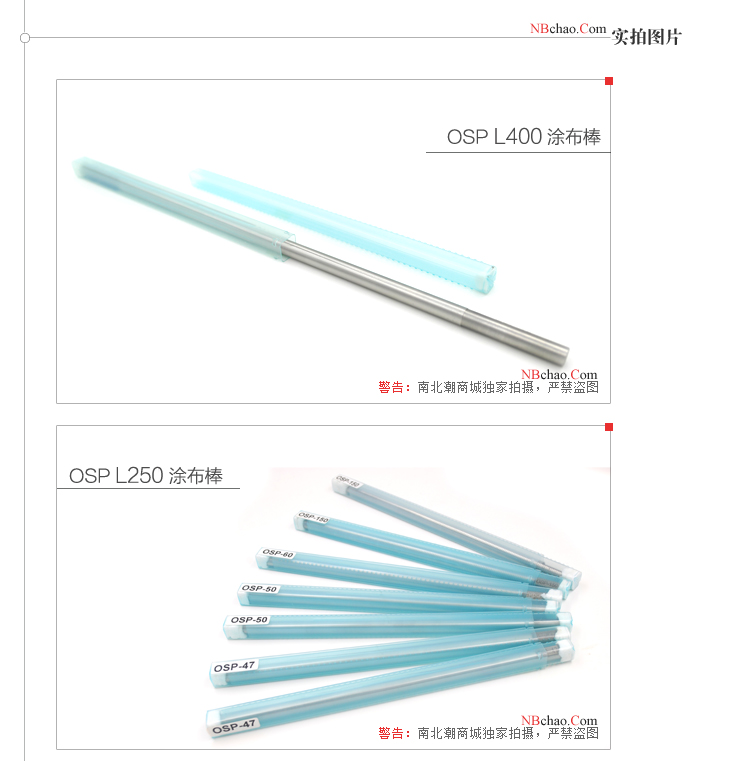

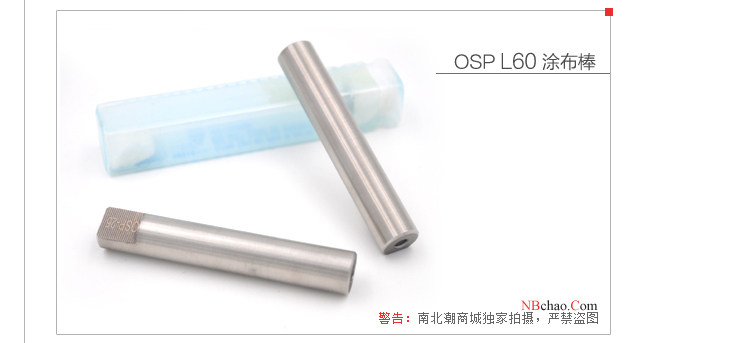

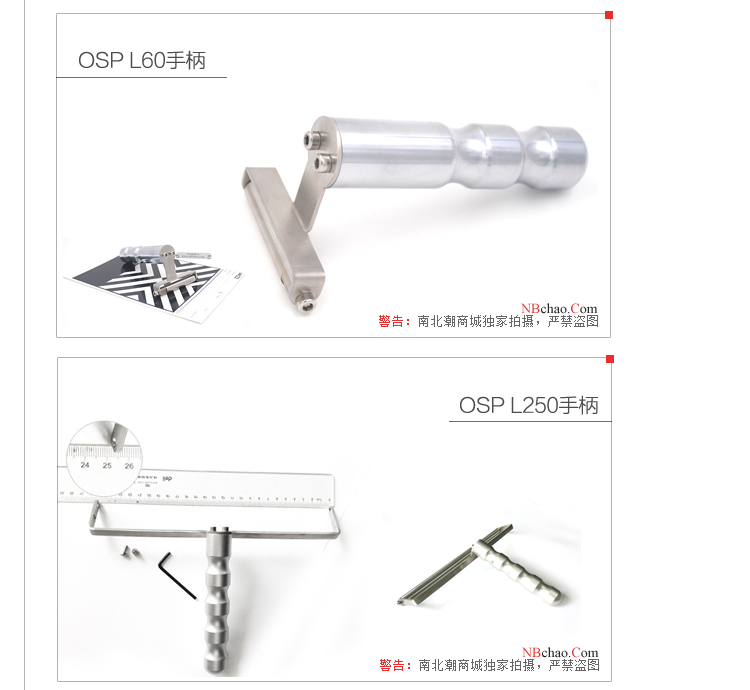

Japan OSP coating rod has three lengths of 400mm, 250mm and 60mm, and the coating width is 300mm, 250mm and 60mm respectively, of which 250mm and 60mm need to be used with handles for easy coating.

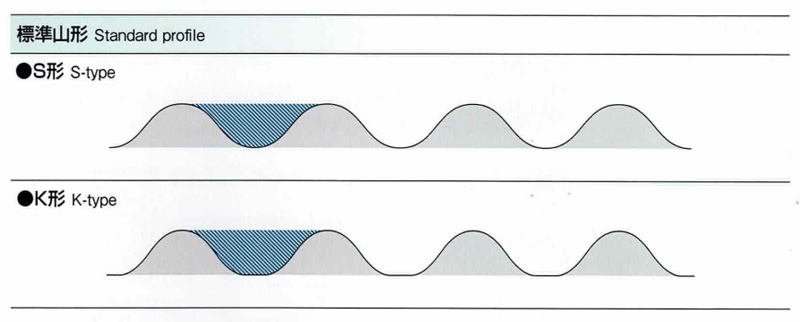

Compared with the S shape, the K shape has a large tooth spacing, which is suitable for high-viscosity coatings, has good leveling, and the bottom of the tooth groove is wider, which is more suitable for customers with a larger glue viscosity, such as silk, non-woven fabrics, etc.
Optional
 |
|
 |  |
FAQ
QI think Spreader has a higher viscosity glue on the non-woven fabric, which coating rod should be selected?
A
OSP-120T L400 coating rod is recommended. It adopts K-shaped cogging design, large tooth spacing, suitable for high viscosity Coating, better leveling, and can easily cope with the Spreader needs of non-woven fabrics.
QI need Spreader silk material, which coating rod is suitable?
A
It is recommended to use OSP-120T series coating rod. Its K-shaped cogging bottom is wider, which can better handle the high viscosity glue required by silk and other materials, ensuring uniform Spreader and avoiding blockage.
QCoating rods are available in different lengths. How do I choose?
A
Choose according to your application width requirements: 400mm rod length application width 300mm, suitable for large size samples; 250mm and 60mm rod lengths need to be equipped with handles, corresponding to 250mm and 60mm application width respectively, which is more flexible. If Spreader has high viscosity materials, remember to choose the model with "T".
QI need an application width 300mm bar, what do you recommend?
A
OSP-120T L400 just application width 300mm, total length 400mm, 304 stainless steel material is durable, suitable for large area Spreader, easy to operate.
