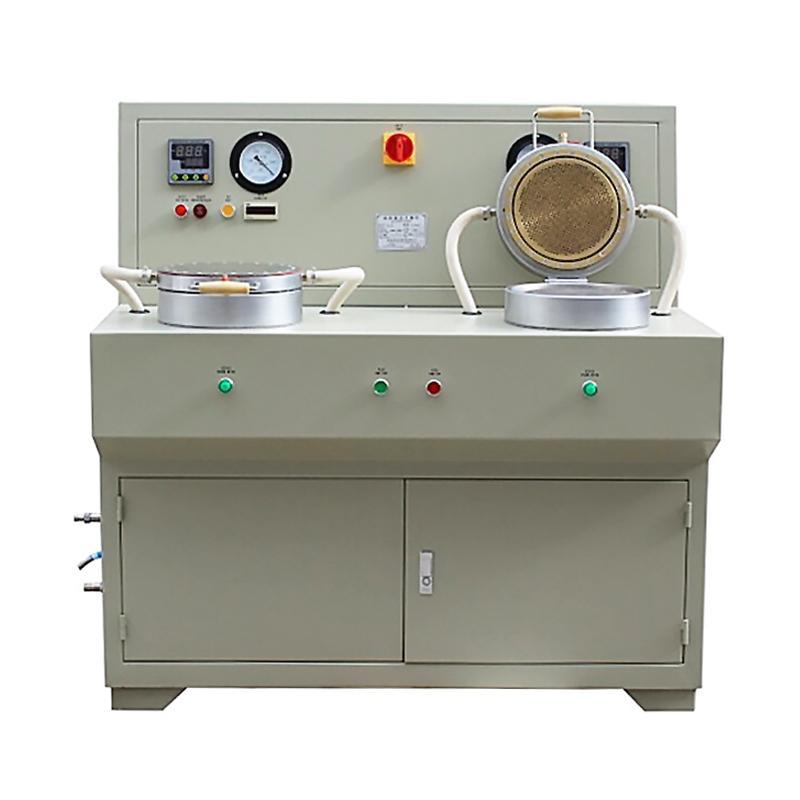

CHINA ZY-KGZ-2S Double station pattern rapid drying device
SESample diameter ≤ 200mm, Vacuum Pump vacuum degree -0.092~ -0.098MPa, Vacuum Pump pumping capacity 80~120 liters/min, drying temperature ≤ 120 ℃, vacuum pressing force Technologies 0.1MPa, used to identify pulp performance and formulate beating process specifications.
$4734.00/set
PromotionLoading...
Coupon
Model：
ZY-KGZ-2S
zy
Manufacturer authorization
zy ZY-KGZ-2S Double station pattern quick dryingSPEC
zy ZY-KGZ-2S Double station pattern quick dryingDetails
zy ZY-KGZ-2S Double station pattern quick dryingPacking list
- SKU
- NB045953
- Specimen diameter
- ≦200mm
- Vacuum pump vacuum
- -0.092~-0.098MPa
- Vacuum pump pumping Volume
- 80~120 liters/min
- Drying temperature
- ≤120℃
- vacuum pressing force
- ≈0.1MPa
- Drying time
- (Quantitative 30-80g/m2): 4-6 minutes
- Heating power
- 1KW×2
- Vacuum Pump Power
- 200W
- Dimensions
- 1200×710×1200mm
- material
- stainless steel
ZY-KGZ-2S
Double station pattern quick drying
Sample diameter ≤ 200mm, Vacuum Pump vacuum degree -0.092~ -0.098MPa, Vacuum Pump pumping capacity 80~120 liters/min, drying temperature ≤ 120 ℃, vacuum pressing force Technologies 0.1MPa, used to identify pulp performance and formulate beating process specifications.
Introduction
ZY-KGZ-2S double-station paper pattern fast dryer can be used for rapid vacuum heating and drying of wet paper samples with a sample diameter of ≦200mm. It is widely used to identify the performance of pulp and formulate the specification of the pulping process, and can also be used for vacuum drying of thin fiber specimens.
Features
It has a double station;
High temperature control accuracy, high vacuum degree and large pumping capacity.
FAQ
QThe laboratory needs to process multiple patterns simultaneously. What efficient equipment is there?
A
ZY-KGZ-2S is a double station design, which can simultaneously dry two paper samples to improve efficiency. The vacuum pump has a pumping capacity of 80~ 120 liters/min, and the temperature control is accurate to ensure uniform drying. It is suitable for pulp testing and thin fiber sample processing, saving time.
