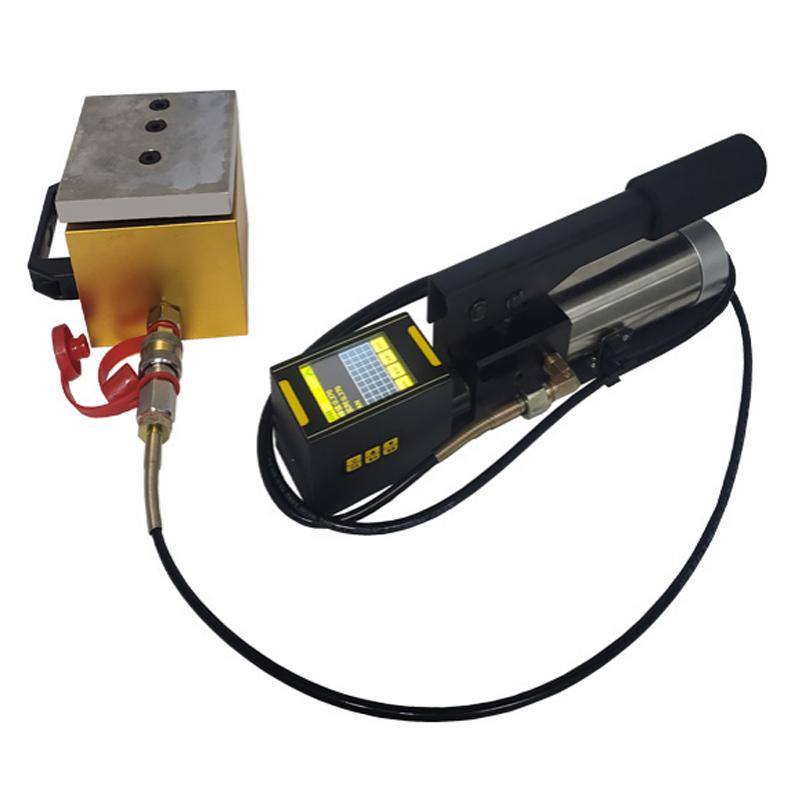

KOSON KS-150S intelligent in-situ single shearing instrument, masonry shear resistance Detector 150KN thrust, Bluetooth printing

KS-150S

Intelligent in situ single shear instrument

Hydraulic drive, rated thrust 150KN, accuracy +/- 1%, with 2.8 inch touch screen and Bluetooth printing function, can store 200,000 pieces of data and support computer connection.

Introduction

The intelligent in-situ single shear meter is a special instrument used to detect the shear strength of building masonry. The instrument is a small hydraulic device, through the piston rising to push the cover plate to produce force on the block to detect the shear strength of the masonry, so that the upper and lower two surfaces of the block are sheared, by measuring the force when the block is sheared, the shear strength of the masonry is calculated, the test results are intuitive, and the detection part is partially damaged.

Features

1. The instrument has novel structure, small size, light weight and easy operation.

2. The manual pump loading cylinder is adopted, which is simple and convenient to operate and has strong interchangeability.

3. Intelligent digital display pressure gauge, which can directly read the shear force.

4. The computer can be connected to view the test data more intuitively;

5. Equipped with Bluetooth printing, directly print the test results.

Operating Principle

Press the hand pump and press the handle, the hydraulic oil communicates with the intelligent digital pressure gauge through the oil pipe, and the other way enters the single shear instrument to push the piston up, and the piston pushes the cover plate to exert thrust on the block. With the increase of the thrust of the block, the upper and lower sides of the block are sheared, and the oil pressure is rapidly reduced back to zero, and the piston returns to position under the action of spring force. The intelligent digital pressure gauge records the pressure value at this time, and the shear strength of the masonry can be calculated through calculation.

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
