China

KOSON KS-100S smart bolt puller

SE
Maximum pressure 0-1000KN, error of indication ≤ +/- 1% F.S, resolution 0.1KN\ 0.001MPa, can be printed by Bluetooth, can be used for on-site pullout resistance testing (test) of Glass curtain wall, is a necessary testing instrument for quality control and construction units.
Model：
Certificate
Contact
Details SPEC CAT

KOSON KS-100S Smart bolt pullerSPEC

KOSON KS-100S Smart bolt pullerDetails

KOSON KS-100S Smart bolt pullerPacking list

SKU
NB045997
maximum pressure
0-1000KN
Error of indication
≤±1%F.S
Resolution
0.1KN�.001MPa
Force unit
KN   MPa
charging method
Type-c high Capacity lithium battery
Center Hole
86mm
language
Switch between Chinese and English
Print
Bluetooth printing (optional)
screen
2.8-Inch full-touch LCD display
Pressurization method
manual
itinerary
150mm
storage
200,000 Computer Connectivity
Linear dispersion
Yes.
peak
Yes.
Automatic shutdown
Yes.
Cylinder reset
manual
KS-100S
Smart bolt puller
Maximum pressure 0-1000KN, error of indication ≤ +/- 1% F.S, resolution 0.1KN\ 0.001MPa, can be printed by Bluetooth, can be used for on-site pullout resistance testing (test) of Glass curtain wall, is a necessary testing instrument for quality control and construction units.

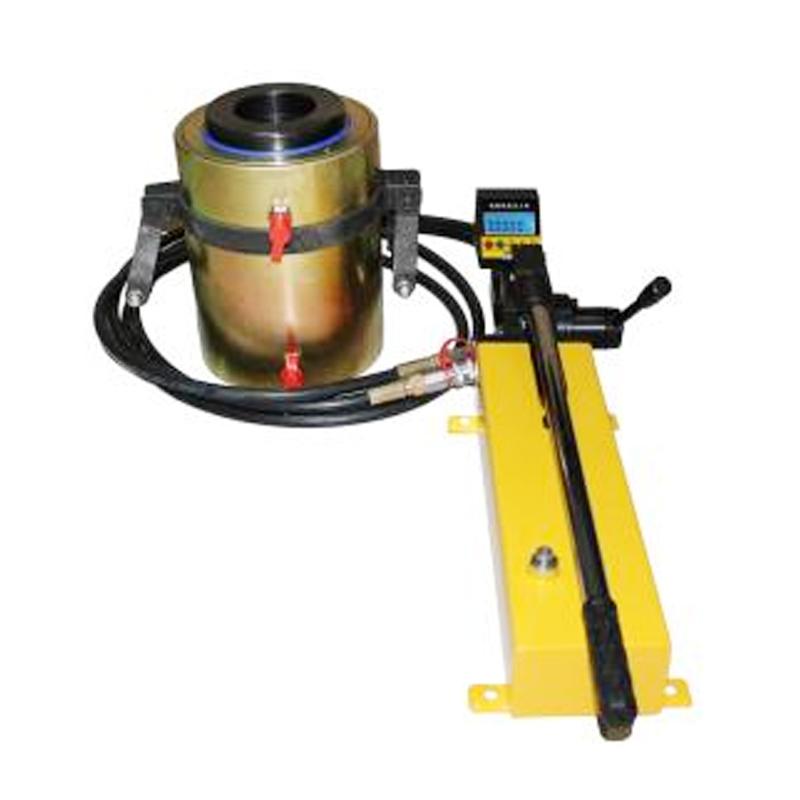

KOSON KS-100S smart bolt puller Picture

Introduction

The intelligent bolt puller is composed of a hand pump, a hollow hydraulic cylinder, an intelligent digital pressure gauge, a high-pressure tubing with a quick connector, an optional (anchor, a conversion joint, a tie rod) and a portable carrying case, the 100T hydraulic cylinder is a manual reset type (can be equipped with an electric pump), the numerical display part of this instrument is an integrated multi-function display instrument, which adopts an imported sensor with high sensitivity and accurate value, can directly read the tensile value (kN, Mpa) and has automatic calculation, peak holding, storage and query functions, with backlight display, The hollow hydraulic cylinder is equipped with a dust-proof system and an imported sealing ring, which has a long service life, especially suitable for laboratory and field use, simple operation, easy to learn and use.

Application

The intelligent bolt puller is suitable for detecting the pull-out force of various anchors, steel bars (planting bars), expansion bolts, chemical anchors and other anchors, and can also be used for on-site pull-out force testing (test) of glass curtain walls, which is a necessary testing instrument for quality inspection and construction units. This product is guaranteed for one year, and the company implements a lifelong maintenance responsibility system for the products sold.

Meets standards

GB 50367-2013 Code for Reinforcement Design of Concrete Structures

GB 50330-2013

JGJ 120-2012 Technical Regulations for Building Foundation Pit Support

CECS 22:2005 Technical specification for geotechnical bolts (cables)

GB 50007-2011 Code for Design of Building Foundations

JGJ 145-2013 Technical specification for post-anchorage of concrete structures

GB 50550-2010 Code for Acceptance of Construction Quality of Building Structure Reinforcement Engineering

GB 50203-2011 Code for Acceptance of Construction Quality of Masonry Structure Engineering
