KOSON KS-50S smart bolt drawing instrument

KS-50S

Smart bolt puller

Maximum pressure 0-500KN, error of indication ≤ +/- 1% F.S, resolution 0.01KN\ 0.001MPa, automatic calculation, peak holding, storage and query functions, with backlight display, hollow hydraulic cylinder plus dust system and import sealing ring, long service life, especially suitable for laboratory and field use, simple operation, easy to learn and use.

Introduction

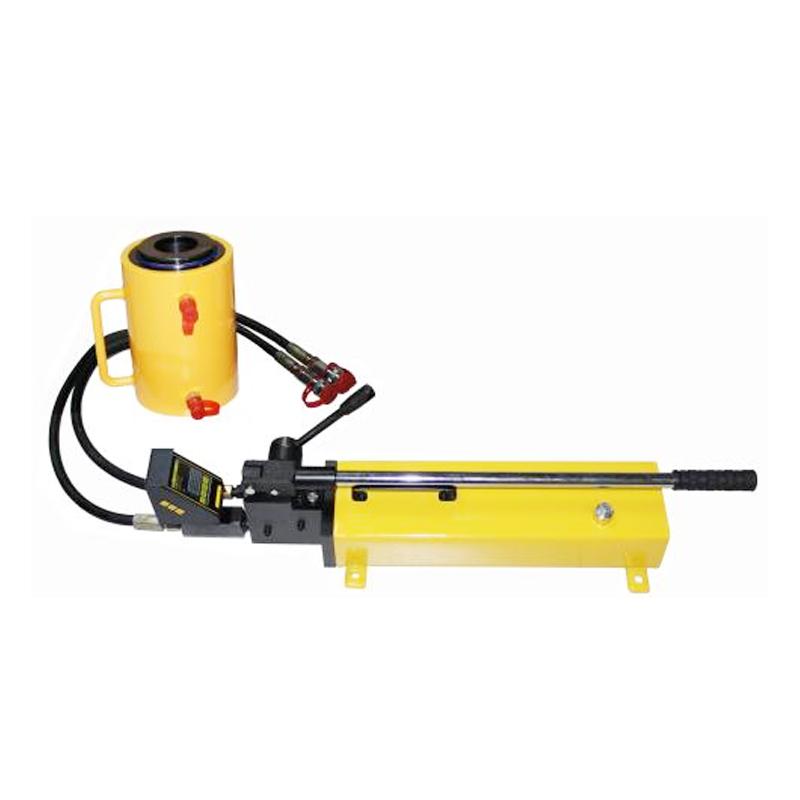

The intelligent bolt puller is composed of a hand pump, a hollow hydraulic cylinder, an intelligent digital pressure gauge, a high-pressure oil pipe with a quick connector, an optional (anchor, a conversion joint, a tie rod) and a portable carrying case, the 50T hydraulic cylinder is a manual reset type (can be equipped with an electric pump), the numerical display part of this instrument is an integrated multi-function display instrument, which adopts an imported sensor with high sensitivity and accurate value, which can directly read the tensile value (kN, Mpa) and has automatic calculation, peak holding, storage and query functions, with backlight display, The hollow hydraulic cylinder is equipped with a dust-proof system and an imported sealing ring, which has a long service life, especially suitable for laboratory and field use, simple operation, easy to learn and use.

Application

The intelligent bolt puller is suitable for detecting the pull-out force of various anchors, steel bars (planting bars), expansion bolts, chemical anchors and other anchors, and can also be used for on-site pull-out force testing (test) of glass curtain walls, which is a necessary testing instrument for quality inspection and construction units. This product is guaranteed for one year, and the company implements a lifelong maintenance responsibility system for the products sold.

Meets standards

GB 50367-2013 "Code for Reinforcement Design of Concrete Structures" GB 50330-2013 "Technical Code for Building Slope Engineering" JGJ 120-2012 "Technical Code for Building Foundation Pit Support" CECS 22:2005 "Technical Code for Geotechnical Anchors (Cables)" GB 50007-2011 "Code for Design of Building Foundation Foundations" JGJ 145-2013 "Technical Code for Post-Anchorage of Concrete Structures" GB 50550-2010 Code for Construction Quality Acceptance of Building Structure Reinforcement Engineering" GB 50203-2011 "Code for Construction Quality Acceptance of Masonry Structure Engineering"

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
