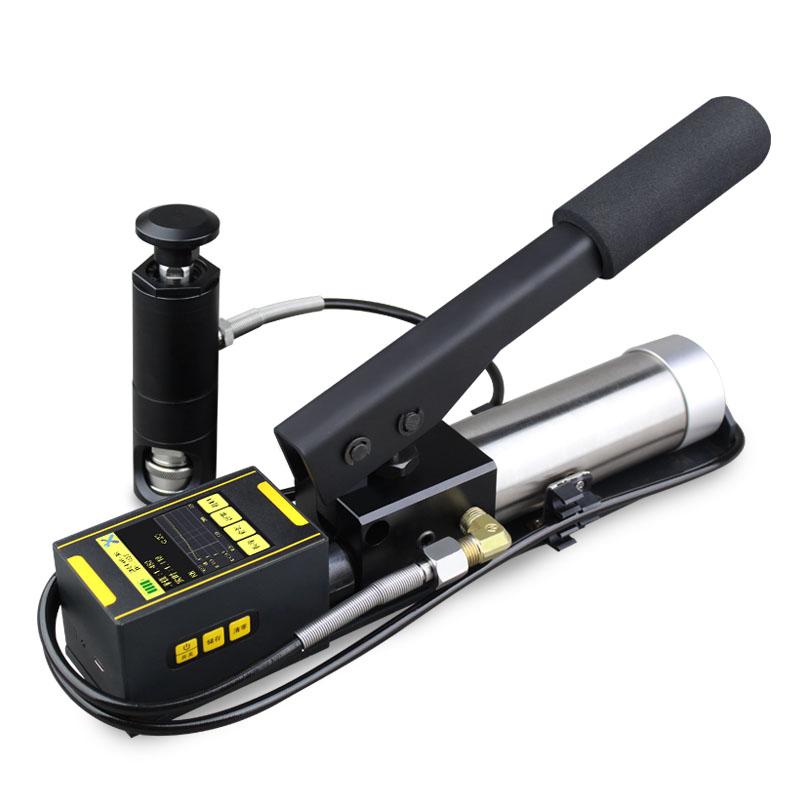

KOSON KS-T smart Adhesion Tester
SE
KS-T
-
TIANDIXINGHUO TC-M20 Manual Pull-off adhesion Tester kit Diameter 20mm$ 1414.00SE -
TIANDIXINGHUO TC-A20 Automatic Adhesion Tester with 20mm kit$ 1888.00SE -
TIANDIXINGHUO XH-M Adhesion Tester Pull-off adhesion Detector 20mm$ 1414.00SE -
KOSON KS-M coating adhesion Detector 20mm$ 910.00SE -
RUNJIE RJ-M Adhesion Tester 20mm$ 1227.00SE
KOSON KS-T Smart Adhesion TesterSPEC
KOSON KS-T Smart Adhesion TesterDetails
KOSON KS-T Smart Adhesion TesterPacking list
- SKU
- NB046001
- Force range
- 0-127.38MPa
- Accuracy
- +/- 1% (full scale)
- resolution
- 0.001KN or 0.001MPa
- Force unit
- KN MPa PSI
- Charging method
- Type-c high Capacity lithium battery
- Device size
- 340X53X100mm
- language
- Switch between Chinese and English
- Bluetooth printing (optional)
- screen
- 2.8 inch full touch LCD display
- Pressurization method
- manual
- Packaging Dimensions
- 450X185X385mm
- store
- 200,000 Connectivity
- Linear dispersion
- Yes.
- peak
- Yes.
- Automatic shutdown
- Yes.
- Encasement total Weight
- 7KG
- Kit size
- 20mm
Instrument Introduction
The Smart Pull-Off Adhesion Tester measures the adhesion of coatings on metals, paints, sprays, waterproofing materials, adhesives, chrome, nickel, concrete, and other materials. The working principle of the instrument is to use the hydraulic system to detach the coating of a certain diameter on the surface of the substrate to measure the adhesion of the coating, and the multi-function digital display of the Tester shows the size of the adhesion, which is displayed in MPa, KN and PSI. The digital display makes the test results intuitive and reliable. Different from the detection of grid products, it reduces the error of human observation. The product is designed and manufactured according to relevant international and national standards, with advanced technology and stable performance.
Meets standards
① ISO 4624 《Paints and varnishes-Pull-offtest for adhesion》
② ASTM D 4541 《StandardTest Method for Pull-Off Strength of Coatings Using Portable Adhesion Testers》
③ ASTM D7234 《Standard Test Method for Pull-OffAdhesion Strength of Coatings on Concrete Using Portable Pull-OffAdhesion Testers》
(4) GB/T 5210-2006 "Adhesion Test of Pigment and Varnish Pulling Method", TB-T2965-2011 "Technical Conditions for Waterproof Layer of Railway Concrete Bridge Deck", ISO 4624/16276-1
