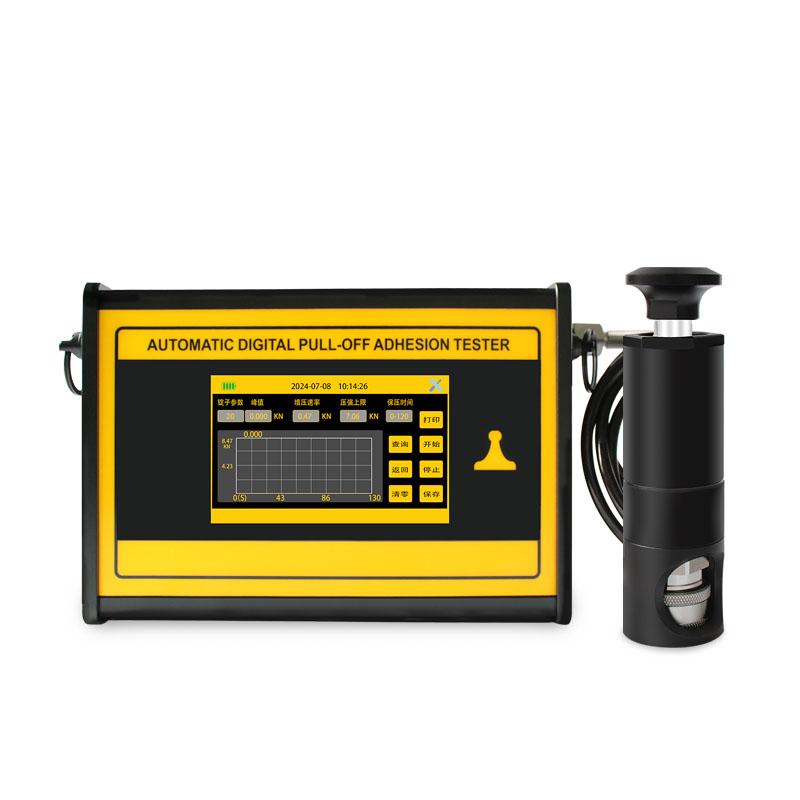

KOSON KS-A Automatic Digital Display Adhesion Tester

KS-A

Automatic Digital Display Adhesion Tester

Accuracy +/- 1% (full scale), resolution 0.001KN\ 0.001MPa, 5 inch full touch LCD display, storage 200,000 can be computer Connectivity, set the holding time, so as to evaluate the durability of the sample under a certain pressure.

Instrument Introduction

Automatic digital display pull-off adhesion Tester is a newly developed intelligent adhesion testing instrument, it pulls off the coating of a specific area through hydraulic pressure, the whole process of pull-off is automatically completed by the instrument, the pull-off speed is stable and controllable, and avoids the error caused by the unstable speed caused by manual pressurization; psi and KN can be selected, the instrument can set the upper limit of pressurization, can apply precise pressure to the sample, after the set pressure is reached, the holding time can be set to evaluate the durability of the sample under a certain pressure.

Meets standards

ISO 4624 《Paints and varnishes-Pull-offtest for adhesion》；

ASTM D 4541 《StandardTest Method for Pull-Off Strength of Coatings Using Portable Adhesion Testers》；

ASTM D7234 《Standard Test Method for Pull-OffAdhesion Strength of Coatings on Concrete Using Portable Pull-OffAdhesion Testers》；

GB/T 5210-2006

TB-T2965-2011 "Technical Conditions for Waterproof Layer of Railway Concrete Bridge Deck" ISO 4624/16276-1

Features

1. Portable design, built-in rechargeable lithium battery, no external power supply, suitable for use in construction, production site and laboratory;

2. U disk storage technology, equipped with Type-C interface, can directly copy the stored experimental data after connecting to the computer, no need to install additional driver software, simple and convenient to use;

3. The machine has a built-in real-time clock, and all saved data have the corresponding experimental date and time, etc., which is convenient for users to summarize and manage the experimental data;

4. The pull-off spindle sizes are 10, 14, 20 and 50mm for products with different bonding strengths, which expands the function and resolution of the instrument;

5. Each instrument is calibrated by CMA traceable pressure sensor before leaving the factory, and the accuracy is ±1% of the full scale;

6. Internal storage of pull-off data, including maximum pull-off force, pull-off rate, test time and size of pull-off spindle;

7. With just one button, you can select the size of the pull-off unit, change the measurement unit or store the reading;

8. There is no need to convert the table, and the instrument automatically calculates the pull-off force according to the size of the pull-off unit;

9. The pull-off unit uses cheap and high-quality aluminum spindles that meet international standards;

10. The aluminum automatic centering pull-off unit ensures that the pull-off force is uniform when acting on the test indication when testing on smooth or uneven surfaces, and prevents unilateral pull-off;

11. Liquid crystal display, there are three units: MPa, psi and KN;

12. With the function of pulling force curve display, the change of pulling force in the whole drawing process can be clearly observed;

13. Data can be stored up to 200,000 pieces;

14. Bluetooth printer can be printed directly on site (optional);

15. This product adopts full touch screen design, one-key switching between Chinese and English, easy to operate;

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
