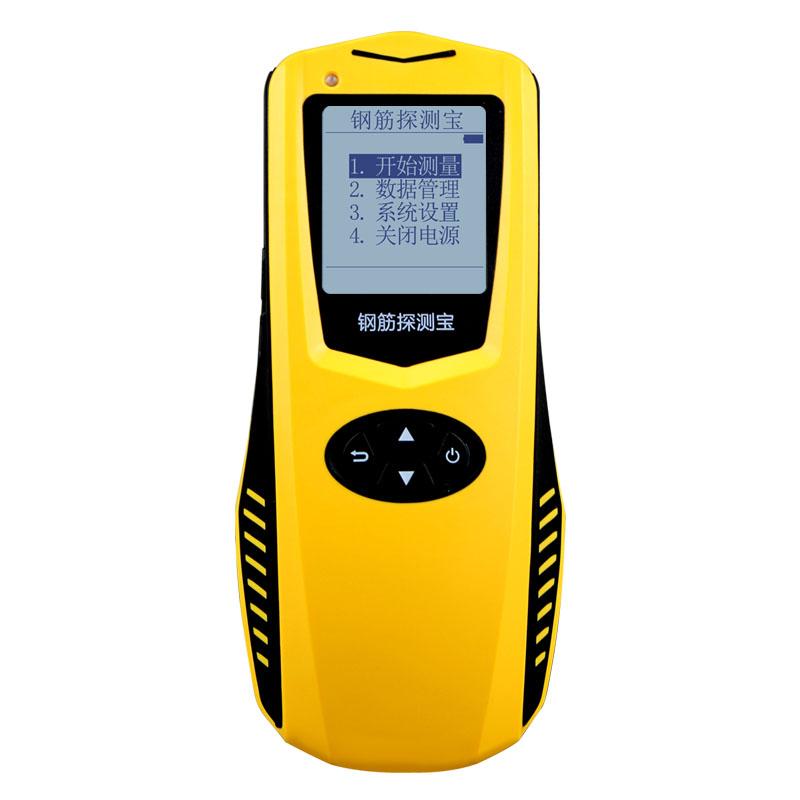

KOSON KS-70 steel bar detection Baoke detects the position of steel bars inside the concrete structure

KS-70

Steel Detection Treasure

Scope of application: 6-50mm, test range positioning range: 1-120mm, professional high-strength magnetic Induction Detector, combined with various engineering actual characteristics, accurate and reliable data, durable products.

Introduction

Steel bar Detector, pure portable hand-held products, set steel positioning, protective layer thickness, diameter, data storage, output and analysis in one, professional high-strength magnetic induction Detector, combined with a variety of engineering actual characteristics, accurate and reliable data, the product is durable, easy and fast to operate, to achieve carrying, is the integration of advanced electronic technology and modern simple design of the intentions.

The steel bar Detector is mainly used to detect the position of the steel bar, the thickness of the protective layer, the estimated diameter of the steel bar, the spacing of the steel bar, the test detection pipeline and the metal embedded parts of the concrete structure such as walls, columns, beams and slabs, etc., to provide high-precision and high-speed detection data.

Meets standards

Technical specification for the detection of reinforcement in concrete JGJ/T152-2019;

Code for Acceptance of Construction Quality of Concrete Structure Engineering GB 50204-2015;

Technical Standard for Detection of Building Structures GB/T50344-2004;

Code for Design of Concrete Structures (2015 Edition) GB50010-2010;

Technical specification for detecting the thickness of the protective layer and the diameter of the reinforcement by electromagnetic induction method DB11/T365-2016;

Technical Standard for On-site Inspection of Concrete Structures GBT/50784-2013;

"Specification for Measurement and Calibration of Reinforcement Protective Layer Thickness Measuring Instrument and Floor Thickness Measuring Instrument" JJF1224-2009

Scope of application

Concrete components of buildings (such as beams, plates and columns) accurately locate the reinforcement, the thickness of the protective layer, measure the diameter of the reinforcement and the spacing of the reinforcement; the application industries include the acceptance of reinforcement engineering, the positioning of bored reinforcement, the installation of furniture walls, the detection of wires and cables, the detection of wires and cables, the detection of drilling and coring to avoid reinforcement, the reinforcement of drilling to avoid reinforcement, the acceptance of concealed steel reinforcement engineering, the installation of air conditioning, the detection of pole reinforcement, the detection of wires and cables, the detection of metal pipes and embedded parts.

Features

1. The high-resolution LCD screen is: 128×128 pixels

2. Hand-held ergonomic design, easy to operate;

3. Accurate positioning of steel bars, delicate and durable;

4. Avoid steel bars, pipelines and embedded parts in drilling, and prolong the life of the drill bit;

5. Multi-coil structure design, fast speed, high precision and strong resolution;

6. Built-in large-capacity lithium battery, low design power consumption, normal standby work is not less than 20h.

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
