KOSON KS-20S smart bolt puller, maximum pressure 200KN
SE
KS-20S
KOSON KS-20S Smart bolt pullerSPEC
KOSON KS-20S Smart bolt pullerDetails
KOSON KS-20S Smart bolt pullerPacking list
- SKU
- NB046010
- maximum pressure
- 0-200KN
- Error of indication
- ≤±1%F.S
- Resolution
- 0.01KN�.001MPa
- Force unit
- KN MPa
- charging method
- Type-c high Capacity lithium battery
- Center Hole
- 34mm
- Device size
- 740mmX175mmx160mm
- language
- Switch between Chinese and English
- Bluetooth printing (optional)
- screen
- 2.8-Inch full-touch LCD display
- Pressurization method
- manual
- itinerary
- 80mm
- Packaging Dimensions
- 290mmX238mmX275mm
- storage
- 200,000 Computer Connectivity
- Linear dispersion
- Yes.
- peak
- Yes.
- Automatic shutdown
- Yes.
- Cylinder reset
- automatic
- Total Weight
- 33KG
Introduction

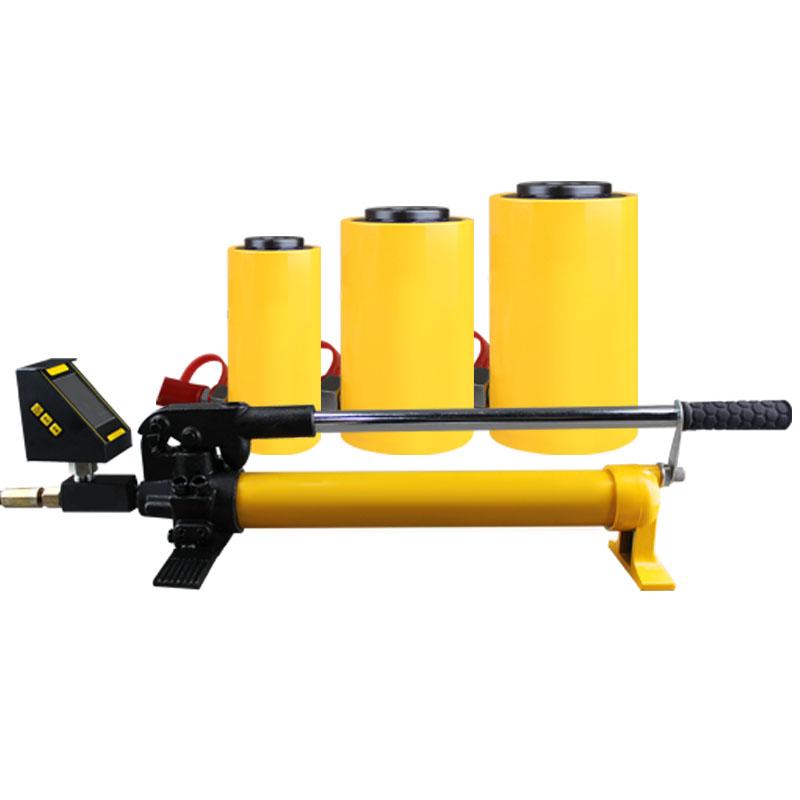

The intelligent bolt puller consists of a hand pump, hollow hydraulic cylinder, digital pressure gauge, high-pressure hose with quick couplings, with options (anchors, tie rods, adapters) and a portable case. The whole series of hydraulic cylinders is hollow self-centering, digital display integrated design, can directly read the force value (KN MPa), and has peak holding, storage, clearing, query and automatic shutdown functions, advanced technology, simple operation, one-year warranty, especially suitable for laboratory and field use.
Application
The intelligent bolt puller is suitable for detecting the pull-out force of various anchors, steel bars (planting bars), expansion bolts, chemical anchors and other anchors, and can also be used for on-site pull-out force testing (test) of glass curtain walls, which is a necessary testing instrument for quality inspection and construction units. This product is guaranteed for one year, and the company implements a lifelong maintenance responsibility system for the products sold.
Meets standards
GB 50367-2013 Code for Reinforcement Design of Concrete Structures;
GB 50330-2013 Technical Code for Building Slope Engineering;
JGJ 120-2012 Technical Regulations for Building Foundation Pit Support;
CECS 22:2005 Technical specification for geotechnical anchors (cables);
GB 50007-2011 Code for Design of Building Foundations;
JGJ 145-2013 Technical specification for post-anchoring of concrete structures;
GB 50550-2010 Code for Acceptance of Construction Quality of Building Structure Reinforcement Engineering;
GB 50203-2011 Code for Acceptance of Construction Quality of Masonry Structure Engineering
