KOSON KS-10S smart bolt puller, maximum pressure 100KN

SE
Maximum pressure 0-300KN, error of indication ≤ +/- 1% F.S, resolution 0.01KN\ 0.001MPa, language switching between Chinese and English, Bluetooth printing, suitable for detecting various anchors, steel bars (planting bars), expansion bolts, chemical anchors and other anchors.
$769.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT

KOSON KS-30S Smart bolt pullerSPEC

KOSON KS-30S Smart bolt pullerDetails

KOSON KS-30S Smart bolt pullerPacking list

SKU
NB046011
maximum pressure
0-300KN
Error of indication
≤±1%F.S
Resolution
0.01KN�.001MPa
Force unit
KN   MPa
charging method
Type-c high Capacity lithium battery
Center Hole
45mm
Device size
740mmX175mmx160mm
language
Switch between Chinese and English
Print
Bluetooth printing (optional)
screen
2.8-Inch full-touch LCD display
Pressurization method
manual
itinerary
80mm
Packaging Dimensions
290mmX238mmX275mm
storage
200,000 Computer Connectivity
Linear dispersion
Yes.
peak
Yes.
Automatic shutdown
Yes.
Cylinder reset
automatic
Total Weight
34KG
KS-30S
Smart bolt puller
Maximum pressure 0-300KN, error of indication ≤ +/- 1% F.S, resolution 0.01KN\ 0.001MPa, language switching between Chinese and English, Bluetooth printing, suitable for detecting various anchors, steel bars (planting bars), expansion bolts, chemical anchors and other anchors.

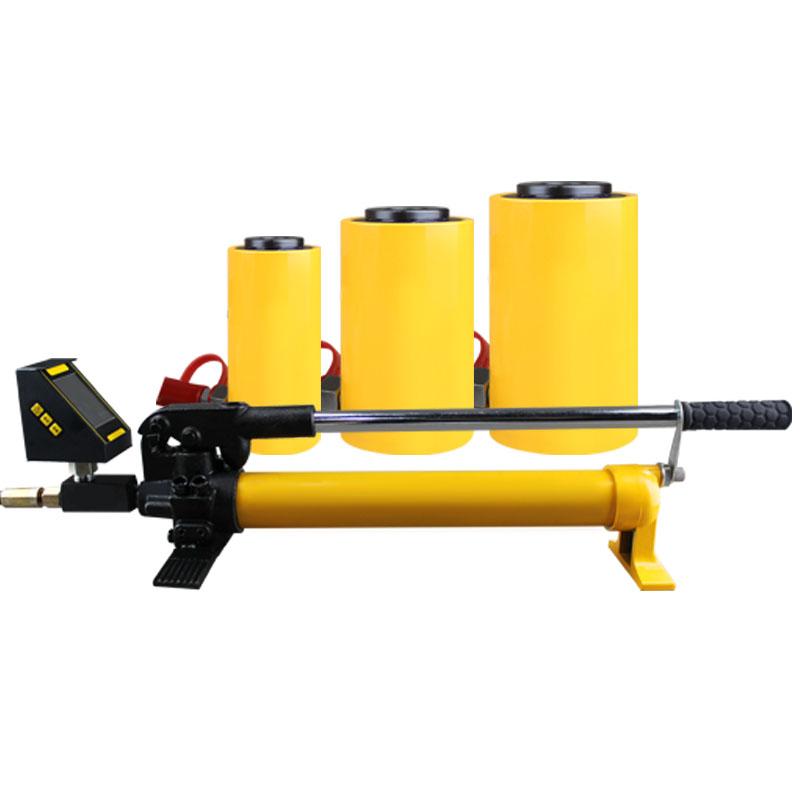

KOSON KS-10S smart bolt puller, maximum pressure 100KN Picture

Introduction

The intelligent bolt puller consists of a hand pump, hollow hydraulic cylinder, digital pressure gauge, high-pressure hose with quick couplings, with options (anchors, tie rods, adapters) and a portable case. The whole series of hydraulic cylinders is hollow self-centering, digital display integrated design, can directly read the force value (KN MPa), and has peak holding, storage, clearing, query and automatic shutdown functions, advanced technology, simple operation, one-year warranty, especially suitable for laboratory and field use.

Application

The intelligent bolt puller is suitable for detecting the pull-out force of various anchors, steel bars (planting bars), expansion bolts, chemical anchors and other anchors, and can also be used for on-site pull-out force testing (test) of glass curtain walls, which is a necessary testing instrument for quality inspection and construction units. This product is guaranteed for one year, and the company implements a lifelong maintenance responsibility system for the products sold.

Meets standards

GB 50367-2013 Code for Reinforcement Design of Concrete Structures;

GB 50330-2013 Technical Code for Building Slope Engineering;

JGJ 120-2012 Technical Regulations for Building Foundation Pit Support;

CECS 22:2005 Technical specification for geotechnical anchors (cables);

GB 50007-2011 Code for Design of Building Foundations；

JGJ 145-2013 Technical specification for post-anchoring of concrete structures;

GB 50550-2010 Code for Acceptance of Construction Quality of Building Structure Reinforcement Engineering;

GB 50203-2011 Code for Acceptance of Construction Quality of Masonry Structure Engineering



FAQ
QI want to test the pullout resistance of the planting bar, is it suitable to use the KS-30S anchor pullout instrument?
A Yes! The KS-30S is specially used to detect the pull-out resistance of anchors such as tendons and bolts. It has a maximum pressure of 300KN and high accuracy. It can also display the load-time Linear dispersion in real time, allowing you to clearly see the data changes throughout the inspection process.
QIs this instrument suitable for use on a construction site?
A Suitable! It adopts a portable box design, weight 34KG for easy handling. The hollow hydraulic cylinder is automatically reset, the manual pressurization operation is simple, and the built-in large-capacity lithium battery does not require an external power supply, which is very convenient to use at any time on the construction site.
QHow about the data logging function of the KS-30S?
A It can store 200,000 pieces of detection data, with peak hold function, and can directly read the maximum force value after detection. You can also choose a Bluetooth module to transfer the data to the computer for analysis, saving the trouble of manual recording.
QWhat instrument should I use to test the pull-out resistance of the planted tendons?
A KOSON KS-30S smart bolt pullout instrument is recommended. It is specially used to detect the pull-out force of the anchors such as tendons and bolts. The maximum pressure is 300KN, the accuracy is high, the operation is simple, and the force value can be displayed in real time. Linear dispersion, suitable for on-site testing.
QA puller with data recording function is required. Do you recommend it?
A KOSON KS-30S can be selected. It can store 200,000 pieces of data, support peak hold and load-time Linear dispersion display, and export data through Bluetooth after inspection, suitable for engineering inspection scenarios that require long-term recording and review.
