China

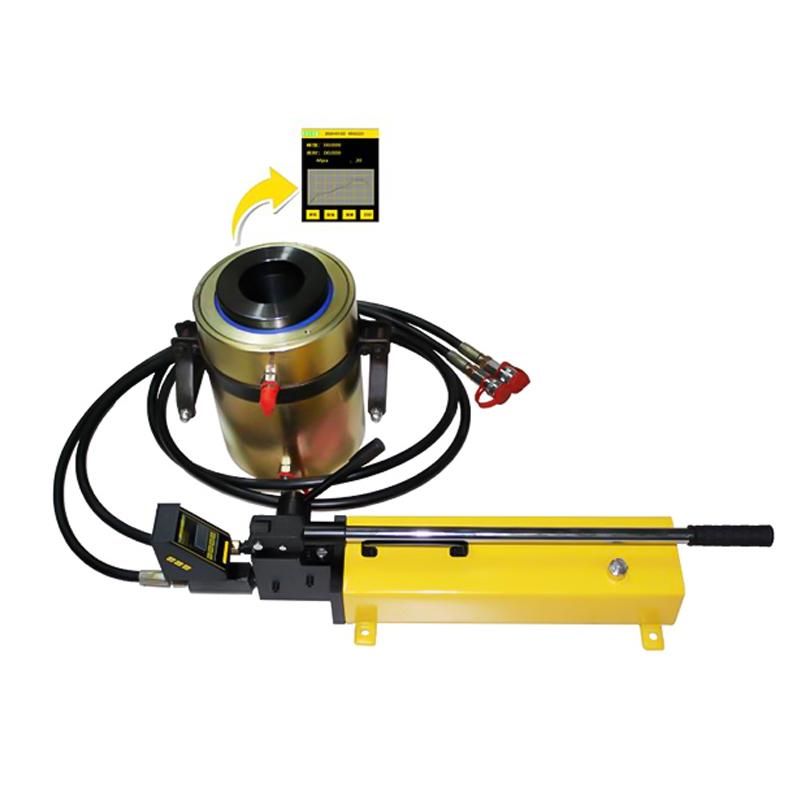

KOSON KS-100S smart bolt puller, touch screen, pressure Linear dispersion Chinese and English, computer Connectivity KN/Mpa

SE
Error of indication ≤ +/- 1% F.S, resolution 0.01KN\ 0.001MPa, storage 200,000 can be computer Connectivity, hydraulic cylinder is hollow self-reset, digital display integrated design, can directly read the force value (KN\ MPa).
$1534.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT

KOSON KS-100S Smart bolt pullerSPEC

KOSON KS-100S Smart bolt pullerDetails

KOSON KS-100S Smart bolt pullerPacking list

SKU
NB046014
Error of indication
≤±1%F.S
Resolution
0.01KN/0.001MPa
Force unit
KN   MPa
charging method
Type-c high Capacity lithium battery
language
Switch between Chinese and English
Print
Bluetooth printing (optional)
screen
2.8-Inch full-touch LCD display
Pressurization method
manual
storage
200,000 Computer Connectivity
Linear dispersion
Yes.
peak
Yes.
Automatic shutdown
Yes.
Cylinder reset
automatic
KS-100S
Smart bolt puller
Error of indication ≤ +/- 1% F.S, resolution 0.01KN\ 0.001MPa, storage 200,000 can be computer Connectivity, hydraulic cylinder is hollow self-reset, digital display integrated design, can directly read the force value (KN\ MPa).
KOSON KS-100S smart bolt puller, touch screen, pressure Linear dispersion Chinese and English, computer Connectivity KN/Mpa Picture

Introduction

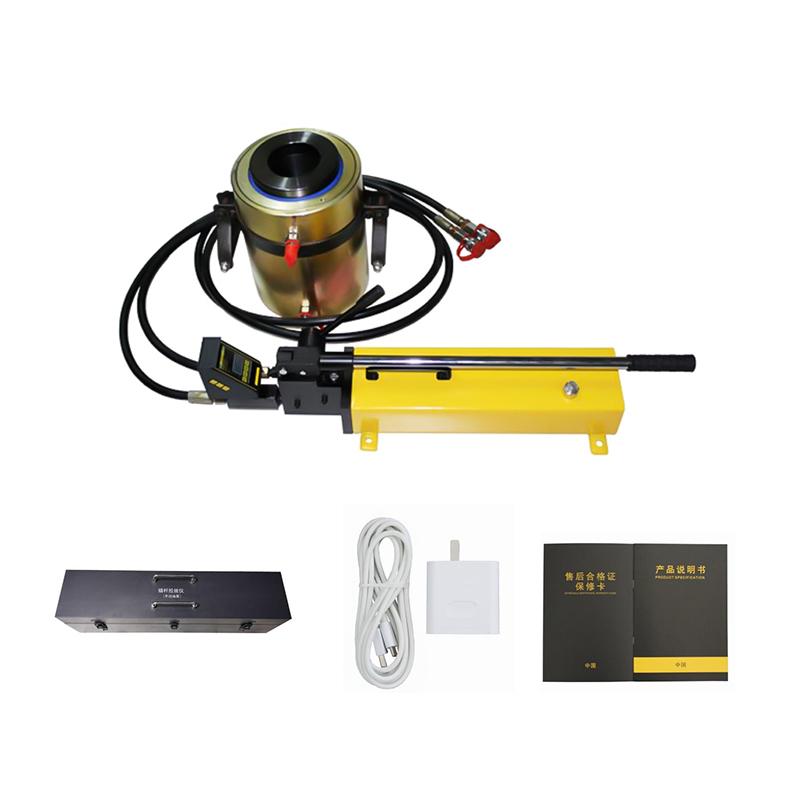

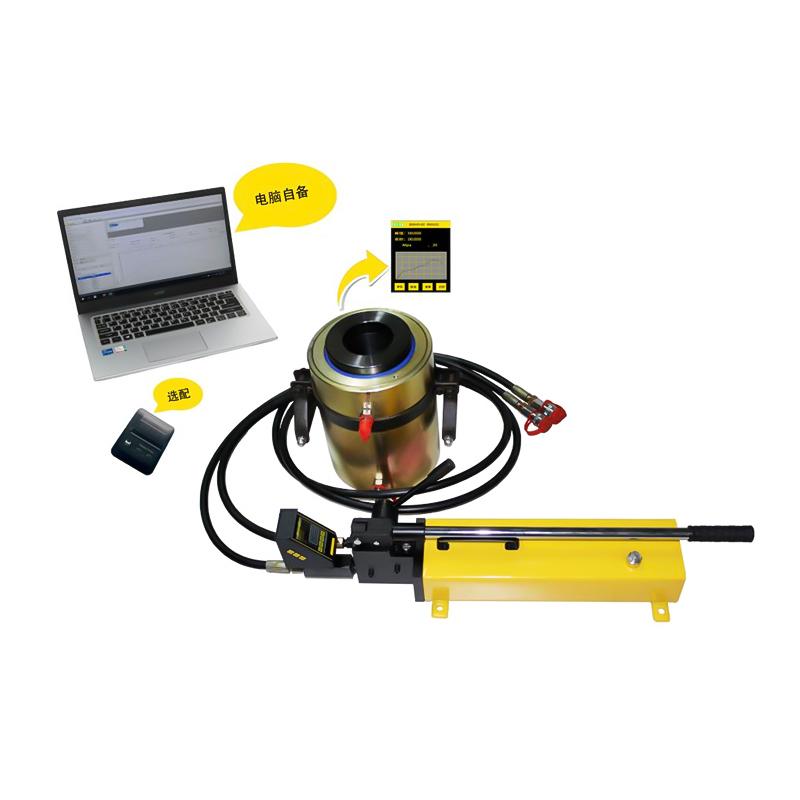

The intelligent bolt puller consists of a hand pump, hollow hydraulic cylinder, digital pressure gauge, high-pressure hose with quick couplings, with options (anchors, tie rods, adapters) and a portable case. The whole series of hydraulic cylinders is hollow self-centering, digital display integrated design, can directly read the force value (KN MPa), and has peak holding, storage, clearing, query and automatic shutdown functions, advanced technology, simple operation, one-year warranty, especially suitable for laboratory and field use.

Application

The intelligent bolt puller is suitable for detecting the pull-out force of various anchors, steel bars (planting bars), expansion bolts, chemical anchors and other anchors, and can also be used for on-site pull-out force testing (test) of glass curtain walls, which is a necessary testing instrument for quality inspection and construction units. This product is guaranteed for one year, and the company implements a lifelong maintenance responsibility system for the products sold.

Meets standards

GB 50367-2013 Code for Reinforcement Design of Concrete Structures;

GB 50330-2013 Technical Code for Building Slope Engineering;

JGJ 120-2012 Technical Regulations for Building Foundation Pit Support;

CECS 22:2005 Technical specification for geotechnical anchors (cables);

GB 50007-2011 Code for Design of Building Foundations；

JGJ 145-2013 Technical specification for post-anchoring of concrete structures;

GB 50550-2010 Code for Acceptance of Construction Quality of Building Structure Reinforcement Engineering;

GB 50203-2011 Code for Acceptance of Construction Quality of Masonry Structure Engineering





FAQ
QIs it suitable to use KOSON KS-100S bolt pullout instrument to test the pullout resistance of planting tendons?
A Suitable! KS-100S is specially used to detect the pull-out resistance of anchor parts such as planting bars and bolts. Its hollow hydraulic cylinder can be directly set on the steel bar for testing, and the digital display meter can directly read the force value. It also has a peak holding function, which is convenient for on-site operation.
QOur site to do bolt pull-out testing, this instrument can meet the standard requirements?
A Yes, KS-100S conforms to the "Technical Specifications for Construction Slope Engineering", "Technical Regulations for Geotechnical Anchors" and other national standards, the error of indication ≤ +/- 1%, the resolution reaches 0.01KN, the data is accurate and reliable, and meets the requirements of site inspection.
