RDS 12 #1/2 "Applicator rod film thickness 27.4μm Wire diameter 0.30mm

SE
Also known as glue rod, using winding process, Wire diameter 0.30mm, rod diameter 12.7mm, the main rod and steel wire are stainless steel, RDS 12 #scraping rod can film 27.4μm.
$179.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 12# 1/2" Applicator rod 1/2 "SPEC

RDS 12# 1/2" Applicator rod 1/2 "Details

RDS 12# 1/2" Applicator rod 1/2 "Packing list

SKU
NB004607
Production process
Wire-wound
WFT
27.4µm
diameter
12.7mm
Total length
400mm
Application width
300mm
Grip width
50+50mm
material
stainless steel
Wire diameter
0.30mm
12# 1/2"
Applicator rod 1/2 "
Also known as glue rod, using winding process, Wire diameter 0.30mm, rod diameter 12.7mm, the main rod and steel wire are stainless steel, RDS 12 #scraping rod can film 27.4μm.

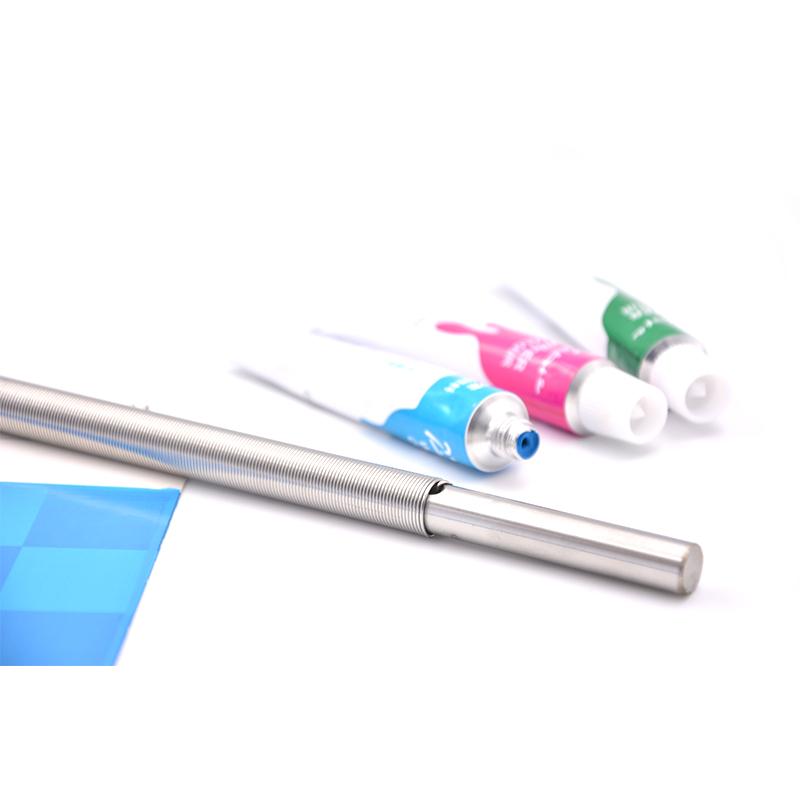

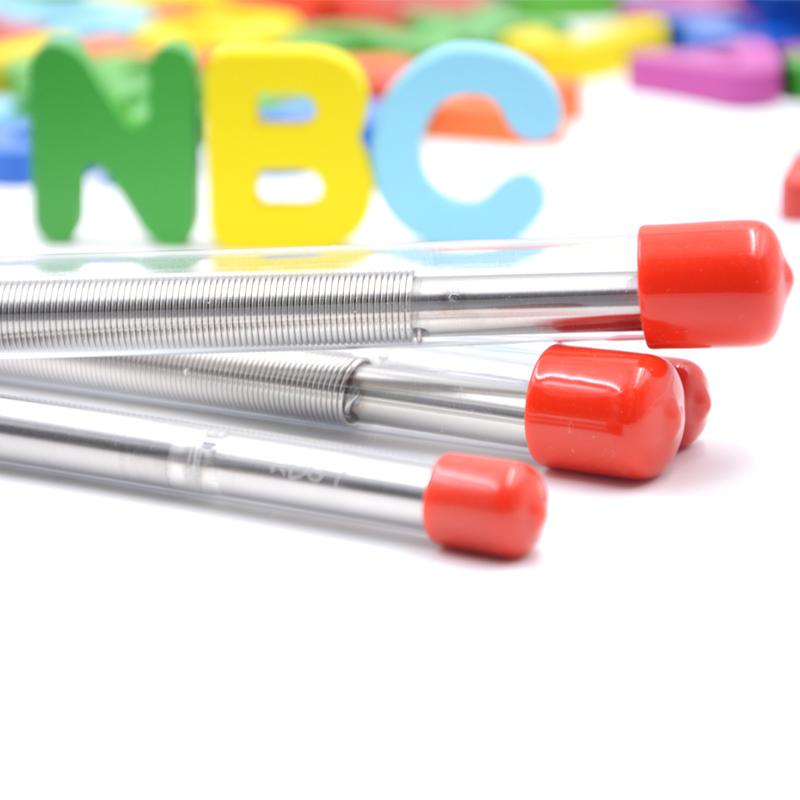

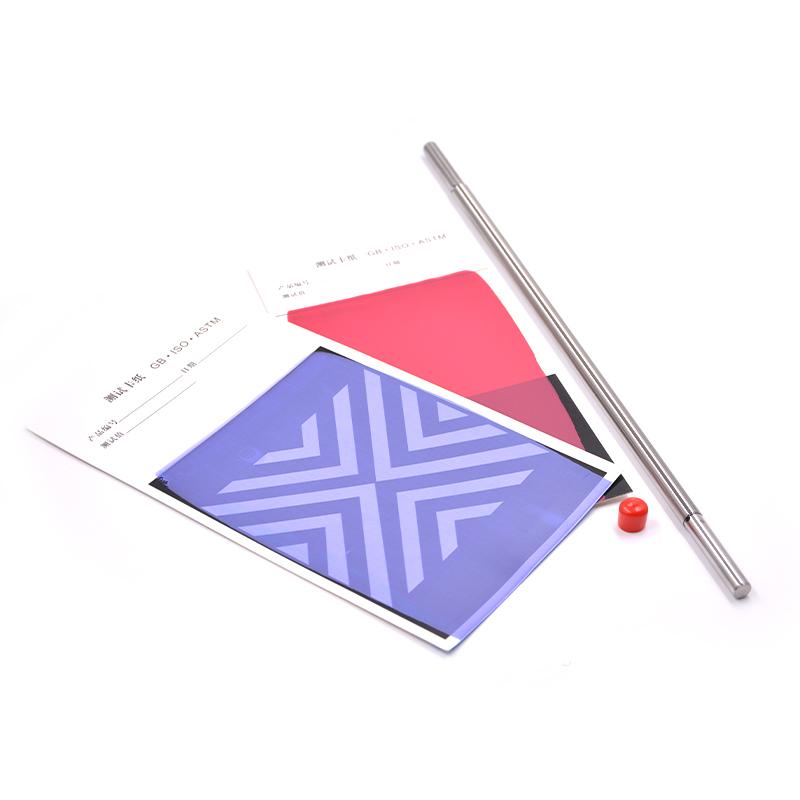

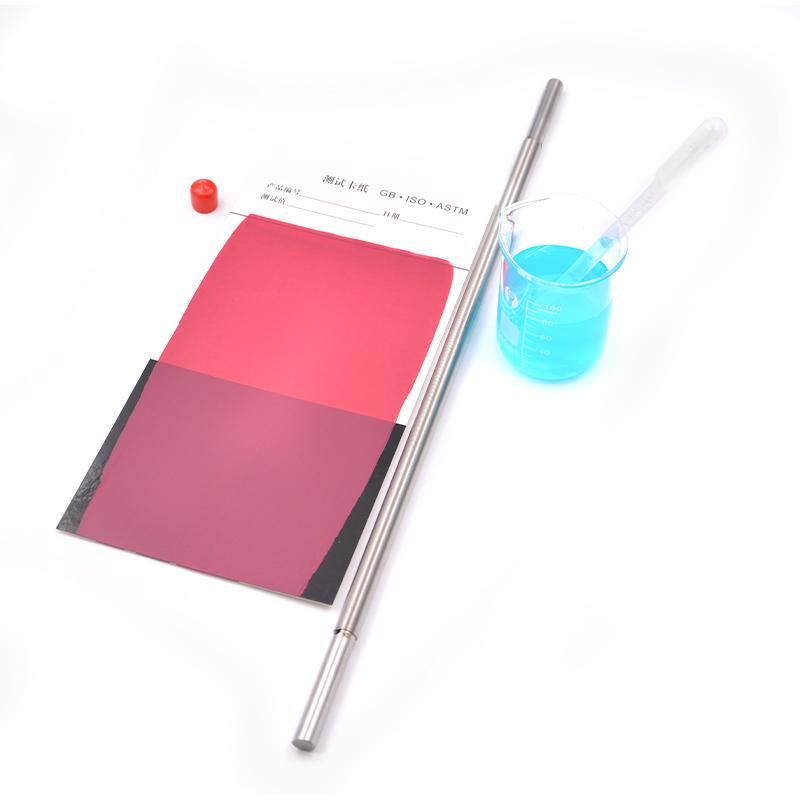

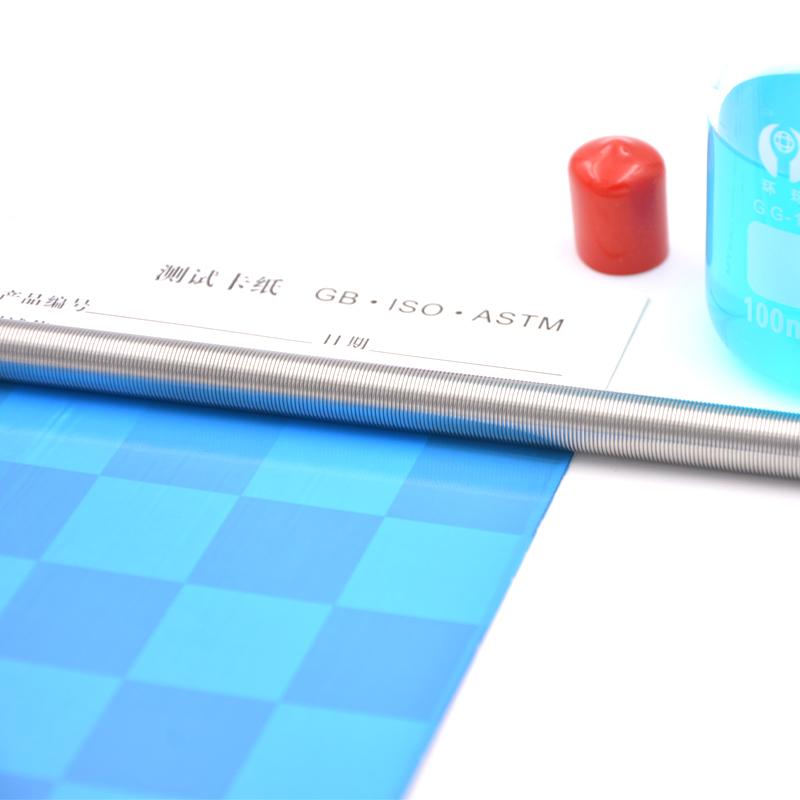

RDS 12 #1/2 "Applicator rod film thickness 27.4μm Wire diameter 0.30mm Picture

RDS 12 #1/2 "Applicator rod film thickness 27.4μm Wire diameter 0.30mm Figure 1

RDS 12 #1/2 "Applicator rod film thickness 27.4μm Wire diameter 0.30mm Figure 2

RDS 12 #1/2 "Applicator rod film thickness 27.4μm Wire diameter 0.30mm Figure 3

RDS 12 #1/2 "Applicator rod film thickness 27.4μm Wire diameter 0.30mm Figure 4

RDS 12 #1/2 "Applicator rod film thickness 27.4μm Wire diameter 0.30mm Figure 5

RDS 12 #1/2 "Applicator rod film thickness 27.4μm Wire diameter 0.30mm Figure 6

RDS 12 #1/2 "Applicator rod film thickness 27.4μm Wire diameter 0.30mm Figure 7

RDS 12 #1/2 "Applicator rod film thickness 27.4μm Wire diameter 0.30mm Figure 8

RDS 12 #1/2 "Applicator rod film thickness 27.4μm Wire diameter 0.30mm Figure 9

RDS 12 #1/2 "Applicator rod film thickness 27.4μm Wire diameter 0.30mm Figure 10


FAQ
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
QI want to do a test on the ASTMD 4147 standard. Is this Applicator rod okay?
A Sure
QOur company is a solar backplane, the laboratory needs to use a scraper, want to consult, want to achieve the film thickness in our mind, how to choose the rod number, no thickness of dry film can not refer to ah, before using the rds6 scraper, coated with a thickness of dry film is 4 microns, if I want to reach 6 to 8 microns, can you suggest?
A It can be roughly calculated according to dry film = wet film × solid parts. The wet film of RDS No. 6 rod is 13.7 μm, and the solid content is about 29% by calculation. If you want to make 6 μm and 8 μm dry films, you need to scrape the wet film 20.5 microns and 27.4 microns, which corresponds to RDS rod, which can be close to RDS 9 #and RDS 12. Thank you for your consultation.
