TASI TASI-634 UV Irradiometer for one-handed operation with 3 ½ digits (1999 reading)

TASI TASI-634 UV Irradiometer, Digital Display UVA UV Digital Irradiometer, Using UV Photo Diode Sensor, Measurement range 199.9uW/cm2, 1.999mW/cm2, 19.99mW/cm2.
Model：
Certificate
Contact
Details SPEC OI

TASI TASI-634 UV IrradiometerSPEC

TASI TASI-634 UV IrradiometerDetails

TASI TASI-634 UV IrradiometerPacking list

SKU
NB000461
Sensors
Silicon optical diode sensor
Measurement range
199.9uW/cm2, 1.999mW/cm2, 19.99mW/cm2, UV sensor Light spectrum: 320 nm~ 400 nm, main wavelength 365 nm
Accuracy
+/- (4% FS +/- 2 bits) (FS: full scale)
Resolution
199.9uW / cm2 · 0.1uW / cm2; 1.999mW / cm2 · 00.001mW / cm2; 19.99mW / cm2 · 0.01mW / cm2
show
3 ½ digit LCD display, maximum 1999 readings
Sampling rate
2.5 times/second
Low battery Voltage display
When the battery Voltage is lower than the operating Voltage, "+ -" is displayed
Operating environment
0 ℃~ 50 ℃, Relative Humidity < 70% R.H.
Storage environment
-20 ℃ to 60 ℃, 0 to 80% R.H.
Power Supply
3 1.5V AA batteries
Host size
155*48*24mm
Instrument Weight
200G (including battery)
TASI-634
UV Irradiometer

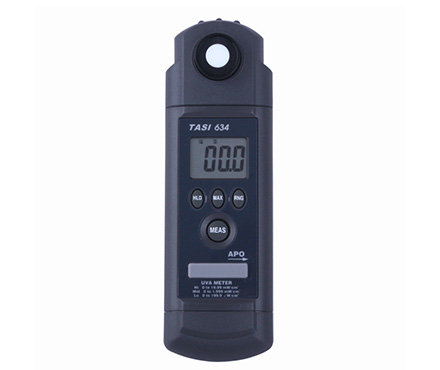

TASI TASI-634 UV Irradiometer for one-handed operation with 3 ½ digits (1999 reading) Picture

Overview

The TASI-634 UV Radiometer is a handheld, easy-to-use, 31/2-digit (1999 reading), rugged digital lux meter designed for one-handed operation.

Features

1) Easy to carry, one-handed operation.

2) Maximum value and reading value lock function.

3) Pocket hook design.

4) UVA radiation measurement.

5) The spectrum of the UV sensor ranges from 320 nm to 400 nm, and the dominant wavelength is 365 nm.

Product display

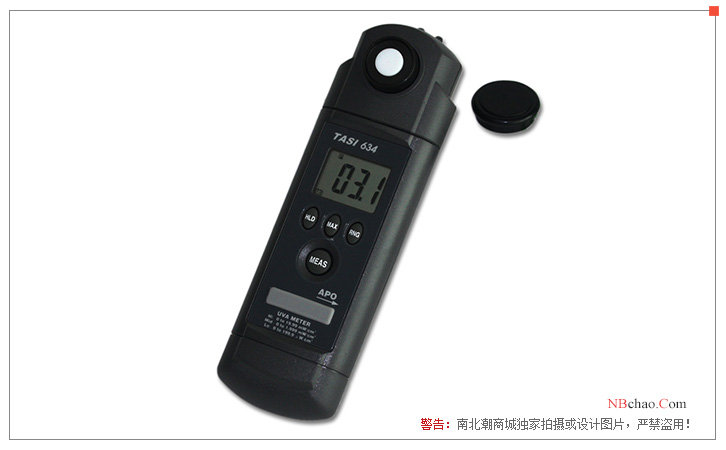

Exterior view of TASI-634 ultraviolet irradiatIon Meter

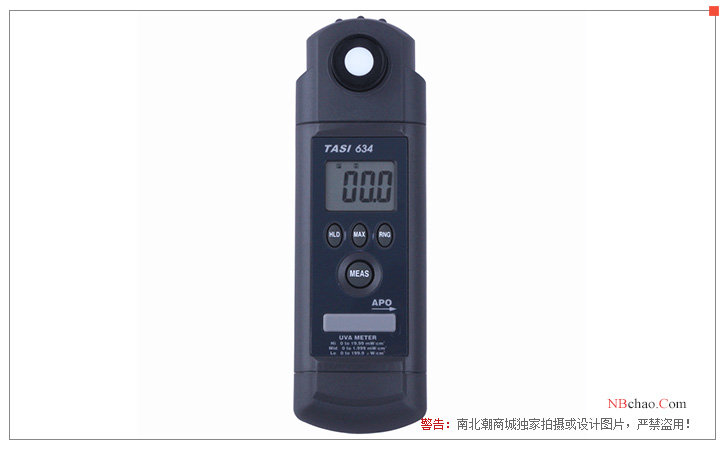

Front view of TASI-634 ultraviolet radiometer

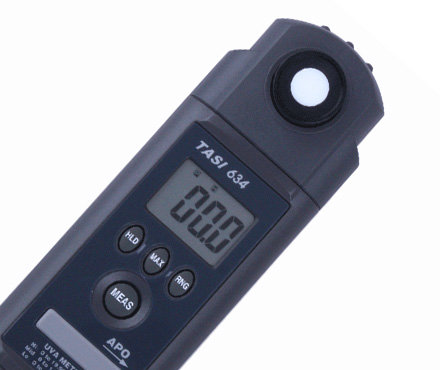

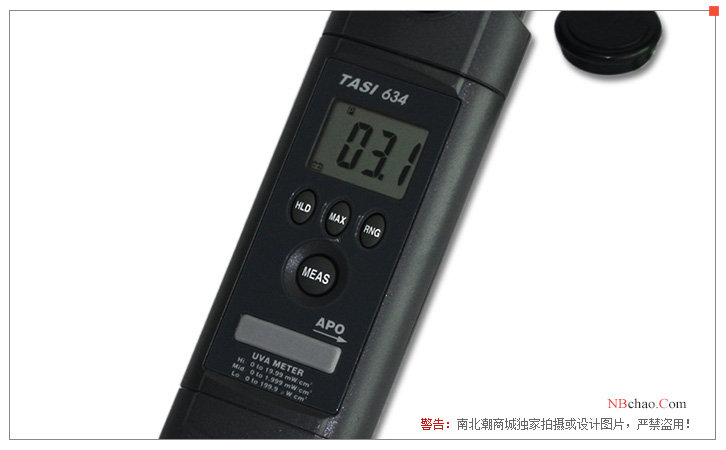

Detail of TASI-634 ultraviolet radiometer display and button panel

Operating Procedures

1. Press the "MEAS" button to start the UV radiometer (use the RNG key to select the gear)

2. Take off the protective cover of the sensor head and put it away

3. Hold the sensing head steady

4. The intensity of ultraviolet rays can be read by the display, if the intensity of ultraviolet rays is so large that it is unknowable, the gear should be maximized, and then lowered until it is lowered to a suitable gear.

5. After the measurement, please cover the illuminance sensor head with a protective cover to prolong the life of the sensor and reduce the aging phenomenon.

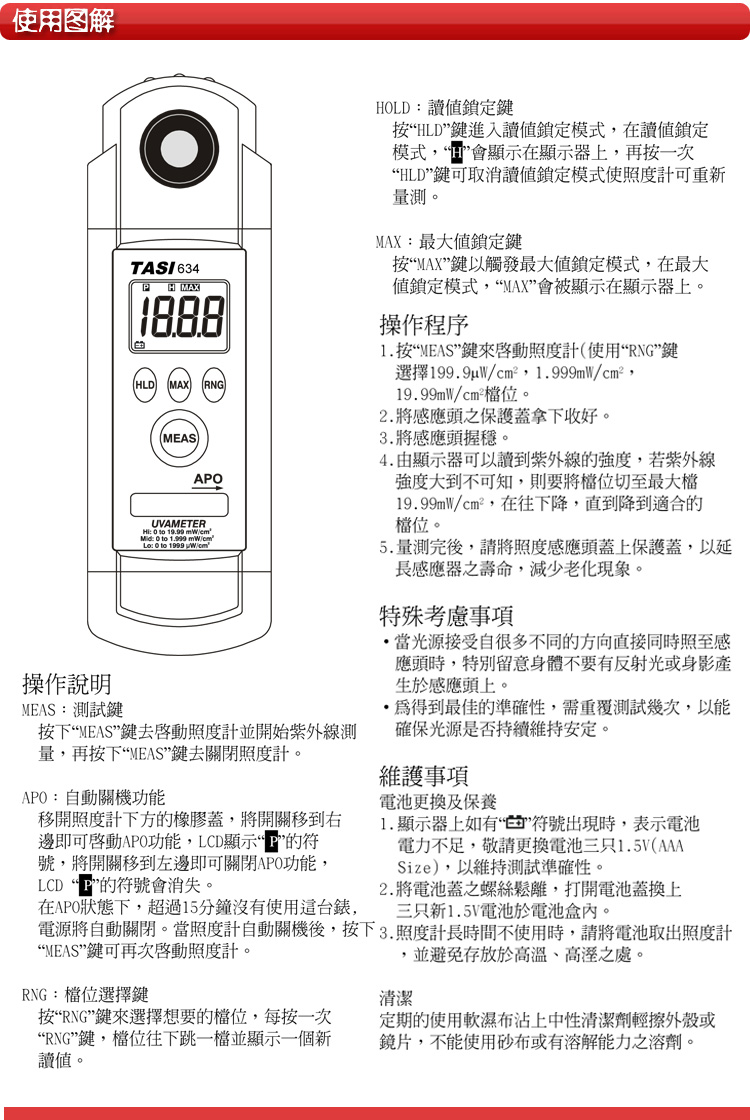

Use diagrams

特安斯TASI-634紫外辐照计操作说明


FAQ
QCan this UV radiometer measure UV energy value?
A No, this 634 measures radiation, measures the intensity of ultraviolet rays, and cannot measure UV energy values.
