RDS 22 #1/2 "Steel Wire Drawdown Rod film thickness 50.3μm Wire diameter 0.56mm

SE
Winding process, Wire diameter 0.56mm, rod diameter 12.7mm, the main rod and steel wire are stainless steel, Applicator rod can film 50.3μm.
$179.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 22# 1/2" Applicator rod 1/2 "SPEC

RDS 22# 1/2" Applicator rod 1/2 "Details

RDS 22# 1/2" Applicator rod 1/2 "Packing list

SKU
NB004615
Production process
Wire-wound
WFT
50.3µm
diameter
12.7mm
Total length
400mm
Application width
300mm
Grip width
50+50mm
Material
不锈钢
Wire diameter
0.56mm
22# 1/2"
Applicator rod 1/2 "
Winding process, Wire diameter 0.56mm, rod diameter 12.7mm, the main rod and steel wire are stainless steel, Applicator rod can film 50.3μm.

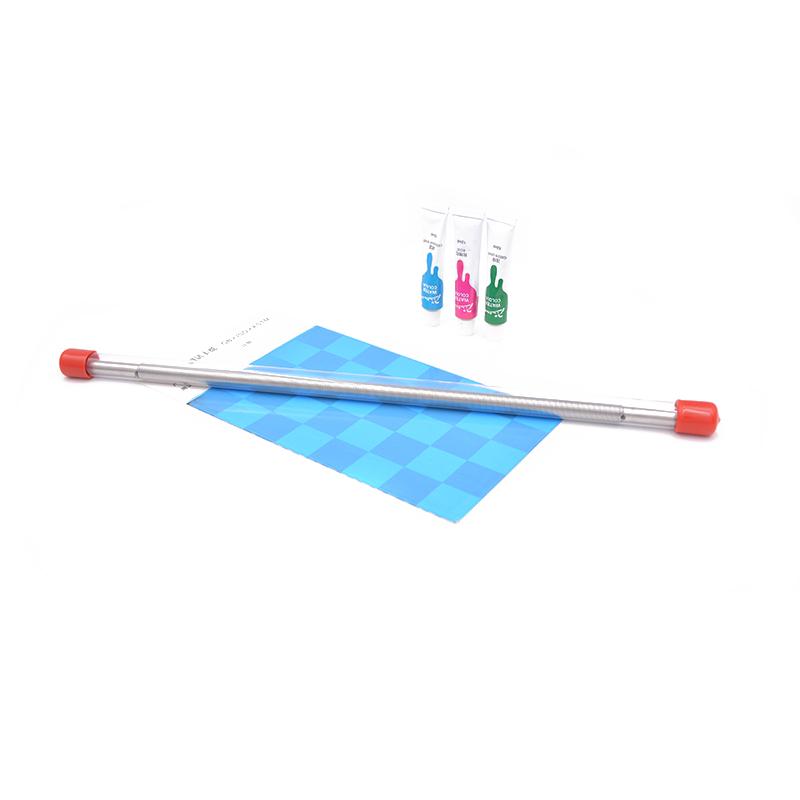

RDS 22 #1/2 "Steel Wire Drawdown Rod film thickness 50.3μm Wire diameter 0.56mm Picture

RDS 22 #1/2 "Steel Wire Drawdown Rod film thickness 50.3μm Wire diameter 0.56mm Figure 1

RDS 22 #1/2 "Steel Wire Drawdown Rod film thickness 50.3μm Wire diameter 0.56mm Figure 2

RDS 22 #1/2 "Steel Wire Drawdown Rod film thickness 50.3μm Wire diameter 0.56mm Figure 3

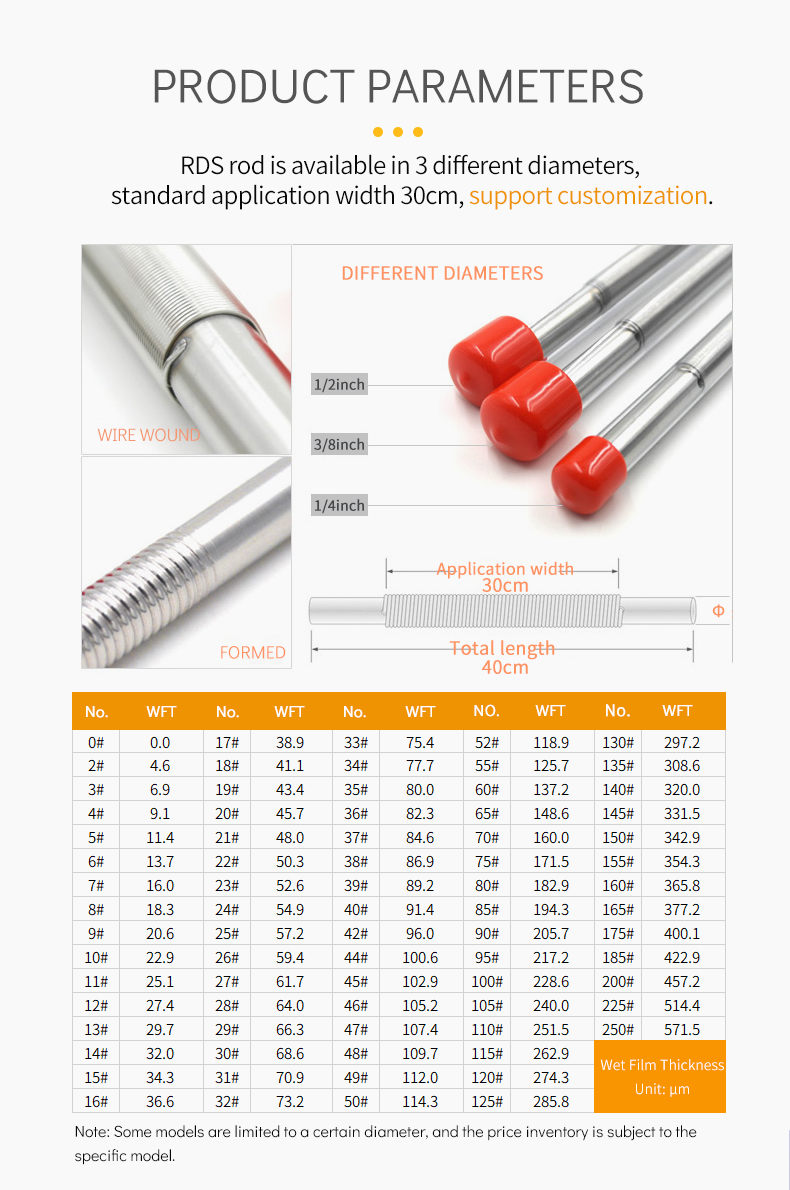

RDS 22 #1/2 "Steel Wire Drawdown Rod film thickness 50.3μm Wire diameter 0.56mm Figure 4

RDS 22 #1/2 "Steel Wire Drawdown Rod film thickness 50.3μm Wire diameter 0.56mm Figure 5

RDS 22 #1/2 "Steel Wire Drawdown Rod film thickness 50.3μm Wire diameter 0.56mm Figure 6

RDS 22 #1/2 "Steel Wire Drawdown Rod film thickness 50.3μm Wire diameter 0.56mm Figure 7

RDS 22 #1/2 "Steel Wire Drawdown Rod film thickness 50.3μm Wire diameter 0.56mm Figure 8

RDS 22 #1/2 "Steel Wire Drawdown Rod film thickness 50.3μm Wire diameter 0.56mm Figure 9

RDS 22 #1/2 "Steel Wire Drawdown Rod film thickness 50.3μm Wire diameter 0.56mm Figure 10


FAQ
QIs this kind of wire rod used for the preparation of hot melt adhesive backing layer?
A Yes, this model can prepare wet film 50um, which can be scraped by hand or matched with motorized film on the film machine.
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
QApplicator rod conforms to GB/T13217.7 standard?
A Applicator rod is suitable for GB/T13217.7, please consult customer service for detailed application definition
Standard
