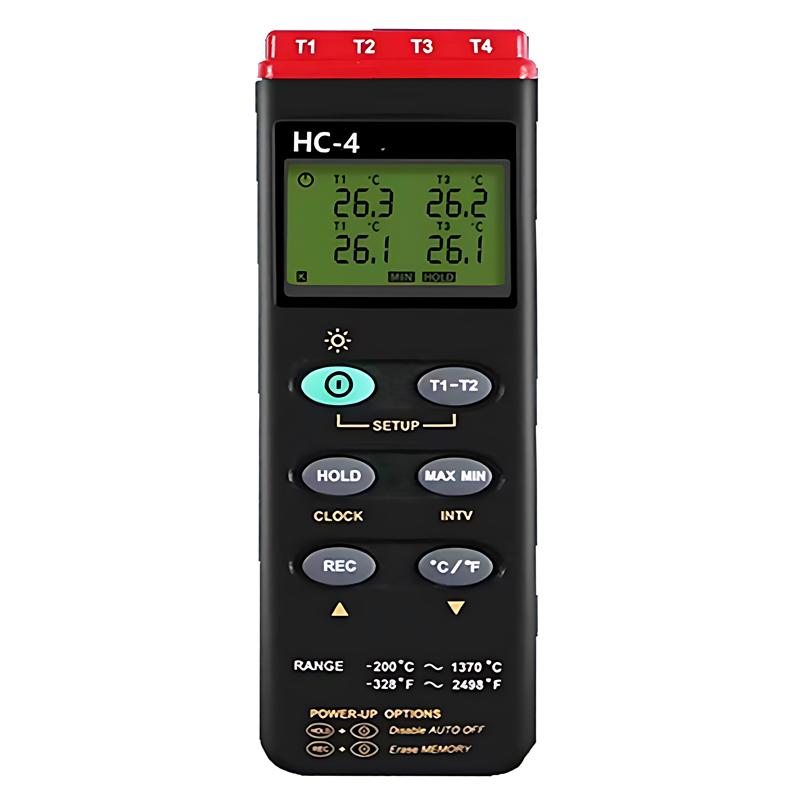

Rennes HC-4 painting Furnace temperature tracker 4 channels 300 ℃ 1 hour
SE
HC-4
LeiEn HC-4 Furnace temperature tracker for paintingSPEC
LeiEn HC-4 Furnace temperature tracker for paintingDetails

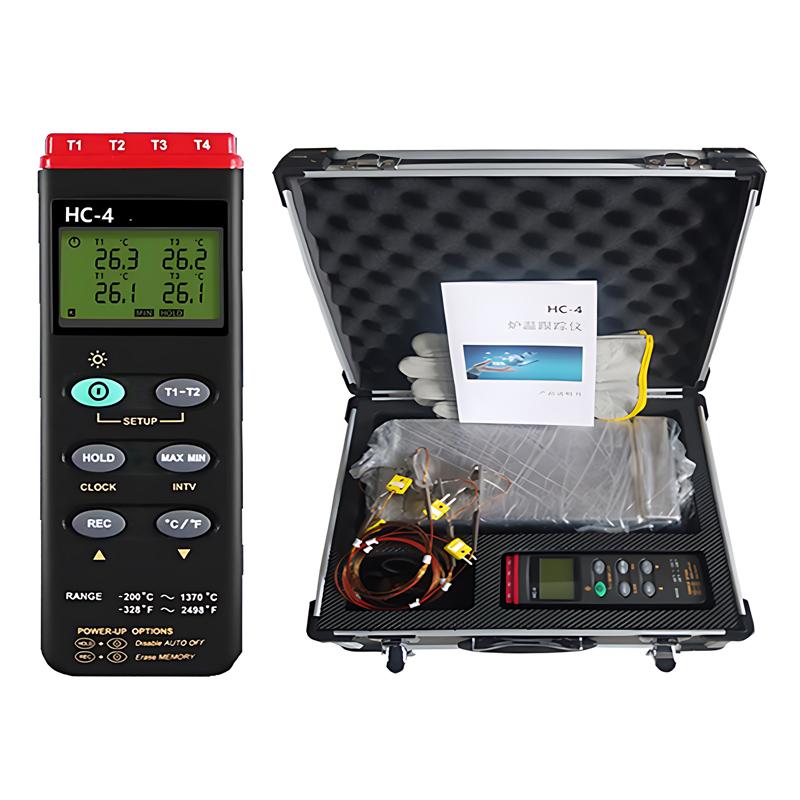

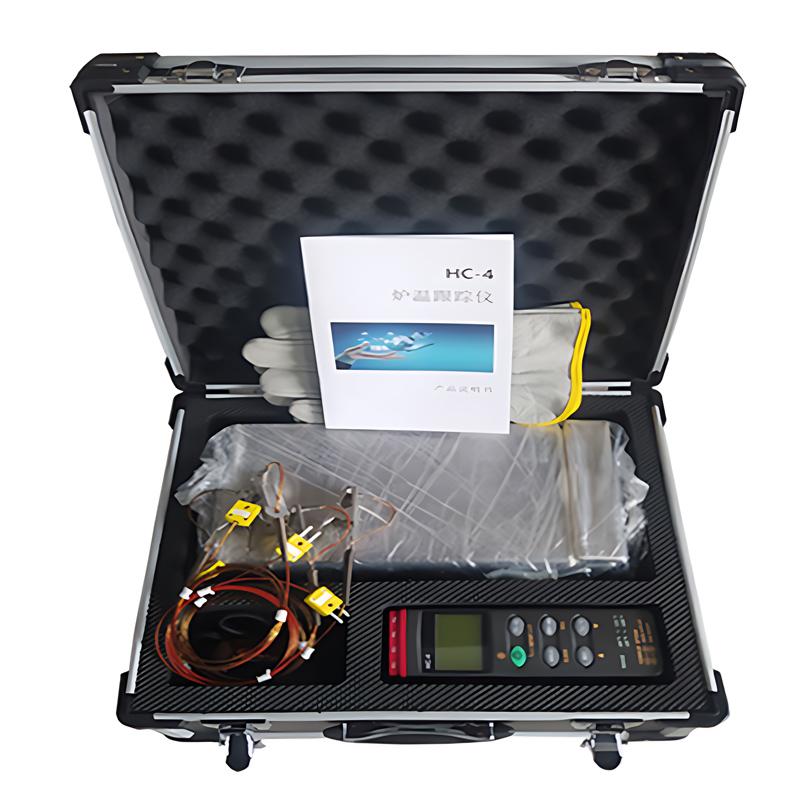

LeiEn HC-4 Furnace temperature tracker for paintingPacking list
- SKU
- NB046344
- Number of channels
- 4 channel
- Sensors
- Thermocouple K
- precision
- 0.5%

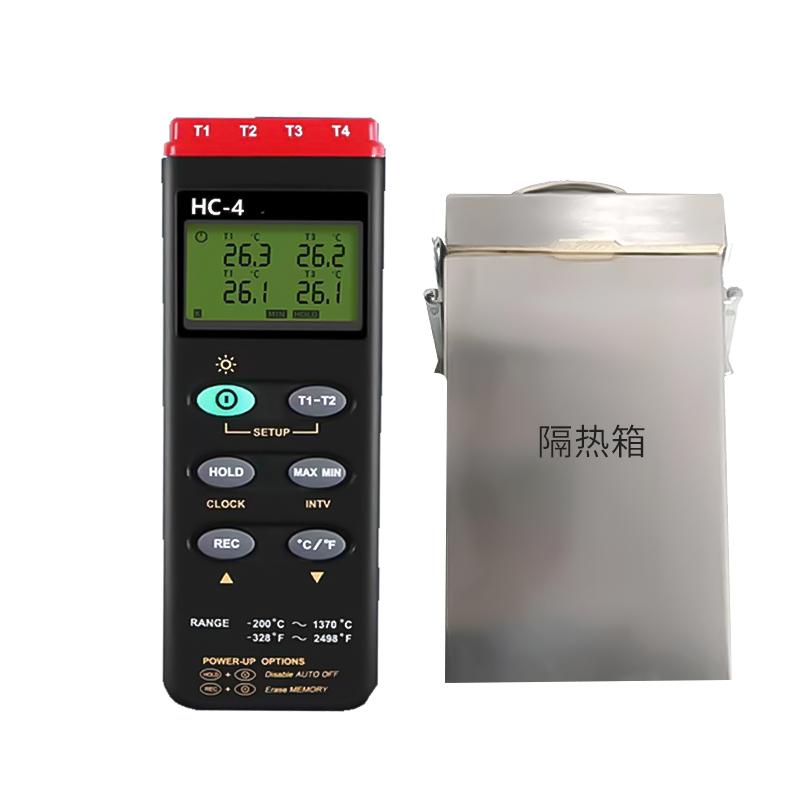

- Insulation box performance
- 300 degrees 1 hour for screen printing oven, medical food, painting, and other industries and processes.
- Insulation box related indicators
- 300 degrees for 60 minutes, 250 degrees for 70 minutes, 200 degrees for 80 minutes, and 100 degrees for 210 minutes.
- memory
- Each channel can record and store 16,000 pieces of data
- Sampling rate
- 1S, 2s, 3s, 4s, 5s, 6s, 10s, 20s, 30s, 1min, etc., can be selected by the user.
- Computer requirements
- Suitable for all computer systems
- Heat box size
- Length 280MM Width 160MM Height 100MM (300 degrees for 1 hour)
Introduction

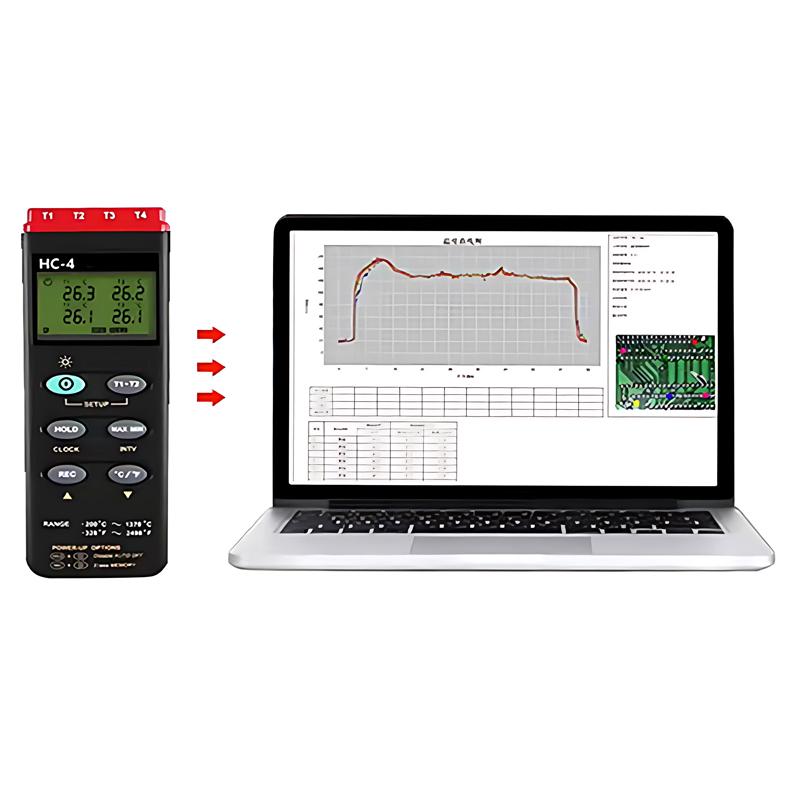

The HC-4 Furnace Temperature Tracker's superior thermal insulation allows the test system to perform temperature mapping in harsh thermal environments. Together with the product, the temperature of the furnace and the product can be tracked and monitored throughout the process, valuable data can be obtained without the need for drag tests, and the resulting curve analysis report can provide engineers with the real temperature status of the product and furnace in real time, and will tell you how to optimize the operation. By equalizing temperature, time, and heating rates, you can increase line speed and product quality for efficient production. HC-4 furnace temperature tracker is a high-precision, high-stability furnace temperature test record product, the system is also equipped with a powerful software analysis system, the collected temperature value for data saving, the host computer software analysis system for functional temperature and length, time, product function and other parameters synchronous analysis and processing.
Features
It can be tested multiple times, and the data download can be completed in one time
The digital display screen can intuitively judge whether the temperature measurement line is normal
The parameters are pre-made in advance, and only two keys are required for operation
High precision and good stability
Quality assurance, three-year warranty
The performance of the thermal insulation box is good, surpassing the import
Scope of application
Silk Screen Oven, Medical Food, Coating Paint Oven Temperature Tester, Non-stick Coating Furnace Temperature Tracker, Steel Heat Treatment Furnace Temperature Tracker, Wheel Hub Heat Treatment Furnace Temperature Tracker, SMT Furnace Temperature Tester, Brazing Furnace Temperature Tracker, Automobile Painting Furnace Temperature Tracker, Food Baking Oven Temperature Tracker, Ceramic Firing Furnace Temperature Tracker, Enamel Furnace Temperature Tracker.
